Air Diverter Valve: Service and Repair

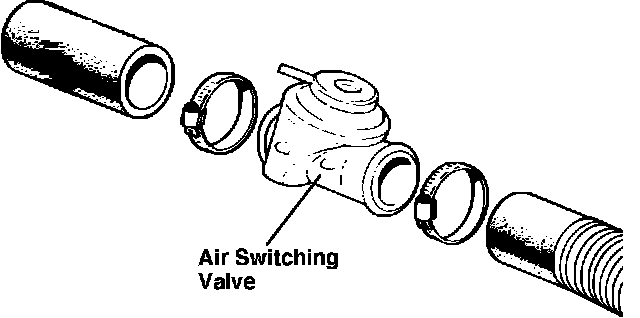

Fig. 19 Air Switching Valve:

1. Disconnect the vacuum hose and air hoses from the air switching valve, Fig. 19. Remove the valve.
2. Position the new valve and connect all the hoses in their original positions.
