Home >> Jaguar >> 1989 >> XJ-6 L6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Fog/Driving Lamp

Fog/Driving Lamp

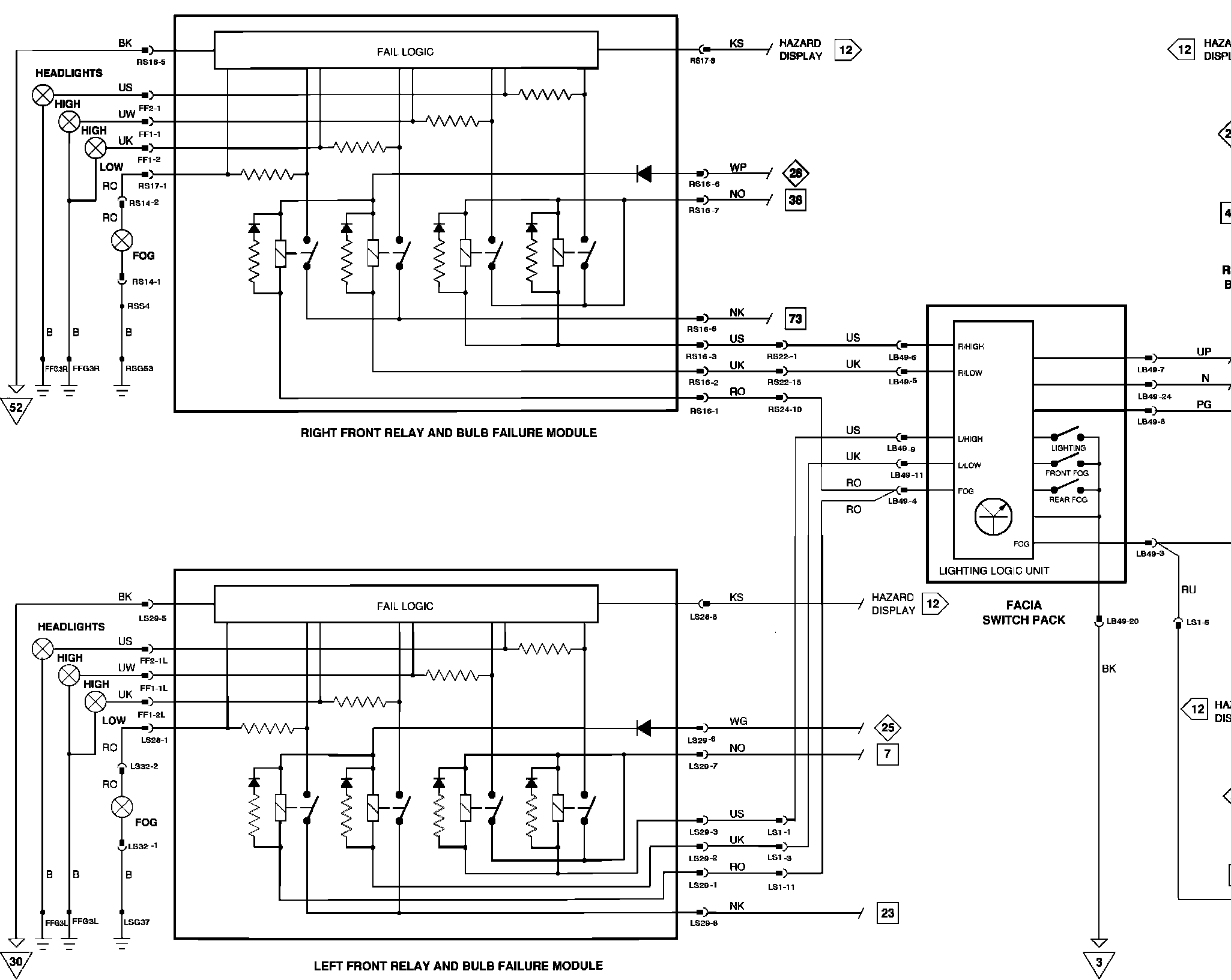

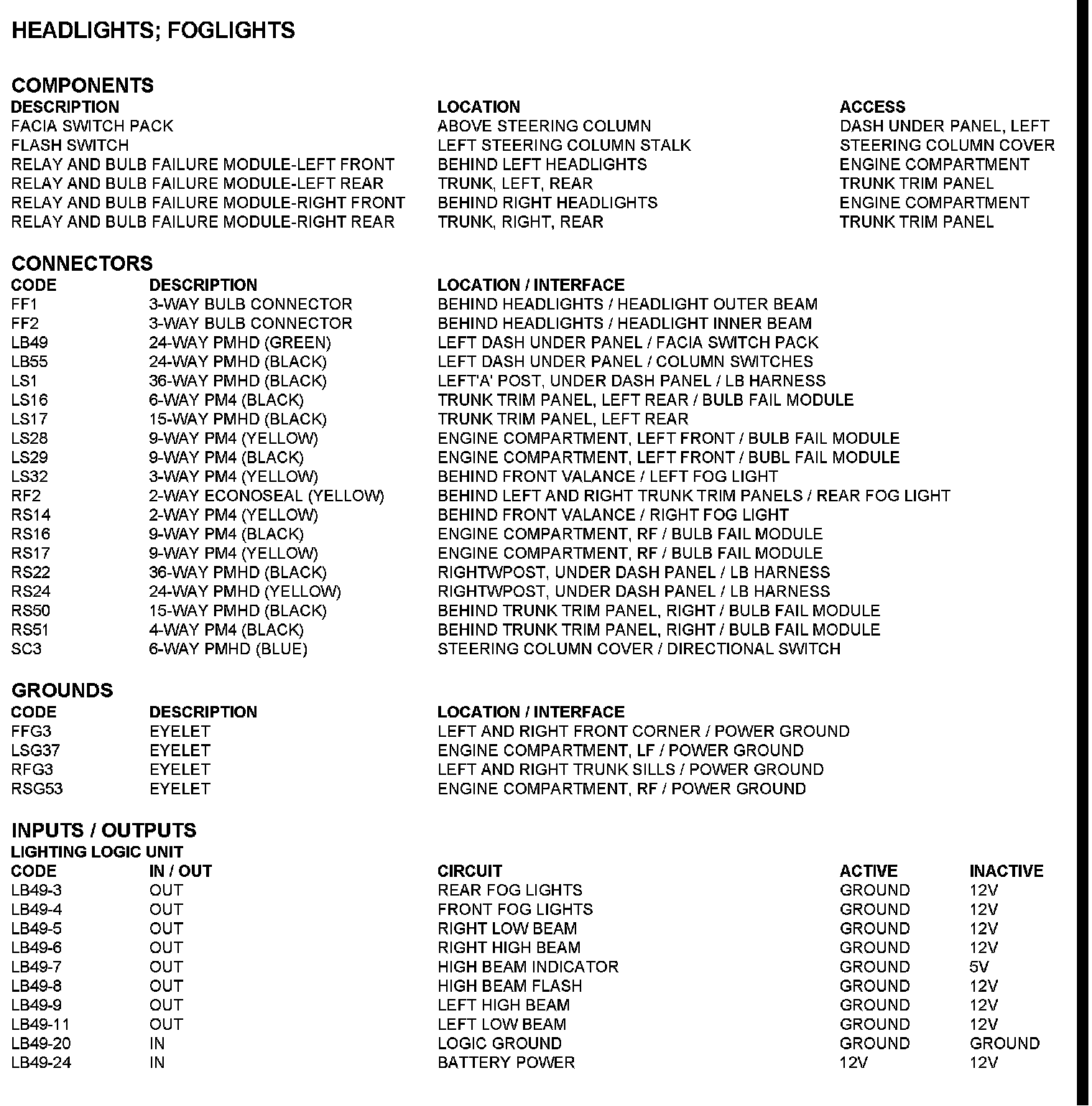

��$Fog & Headlights (FIG 6):
