A/C Compressor Clutch; Cooling Fan
A/C Compressor Clutch; Cooling Fan

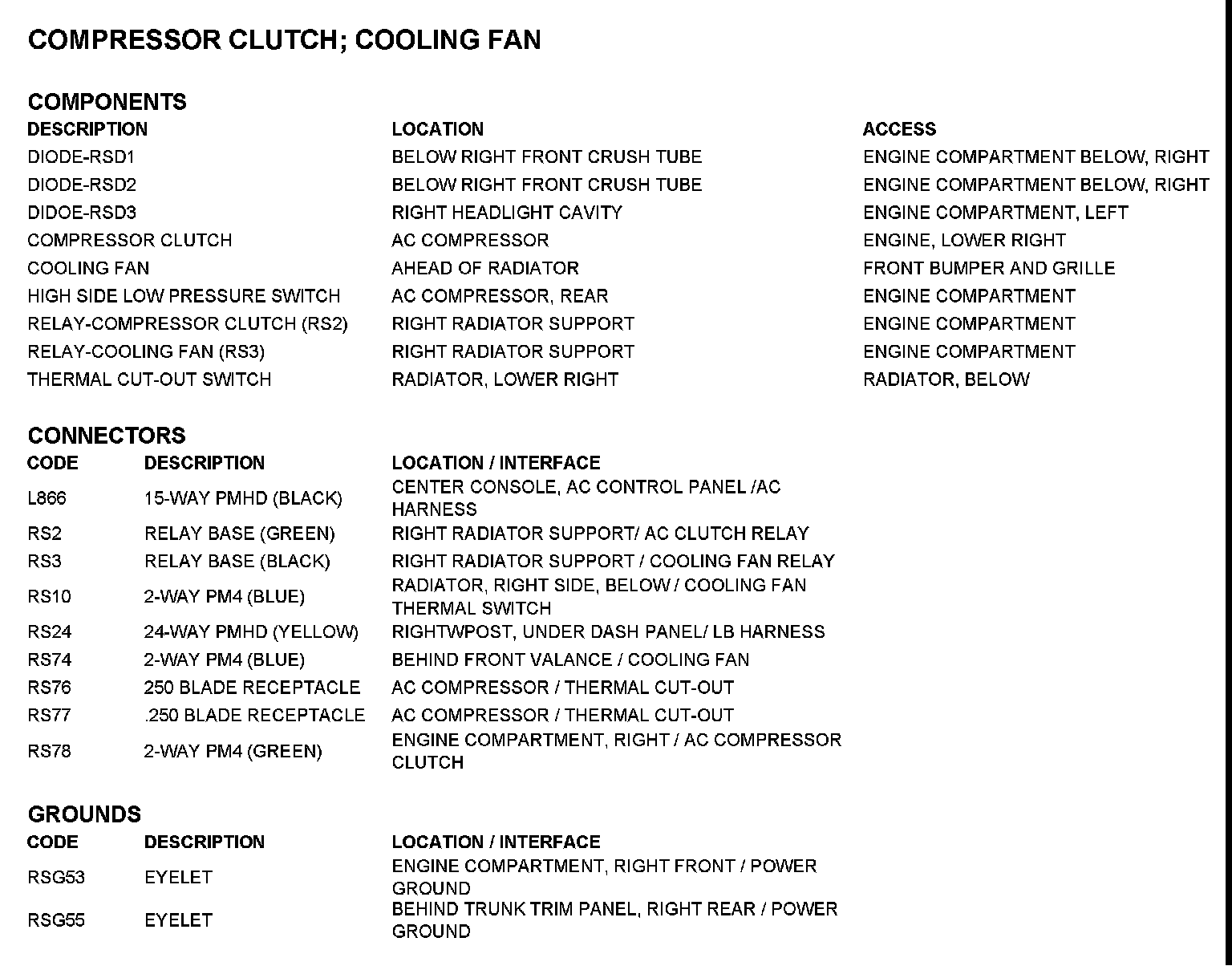

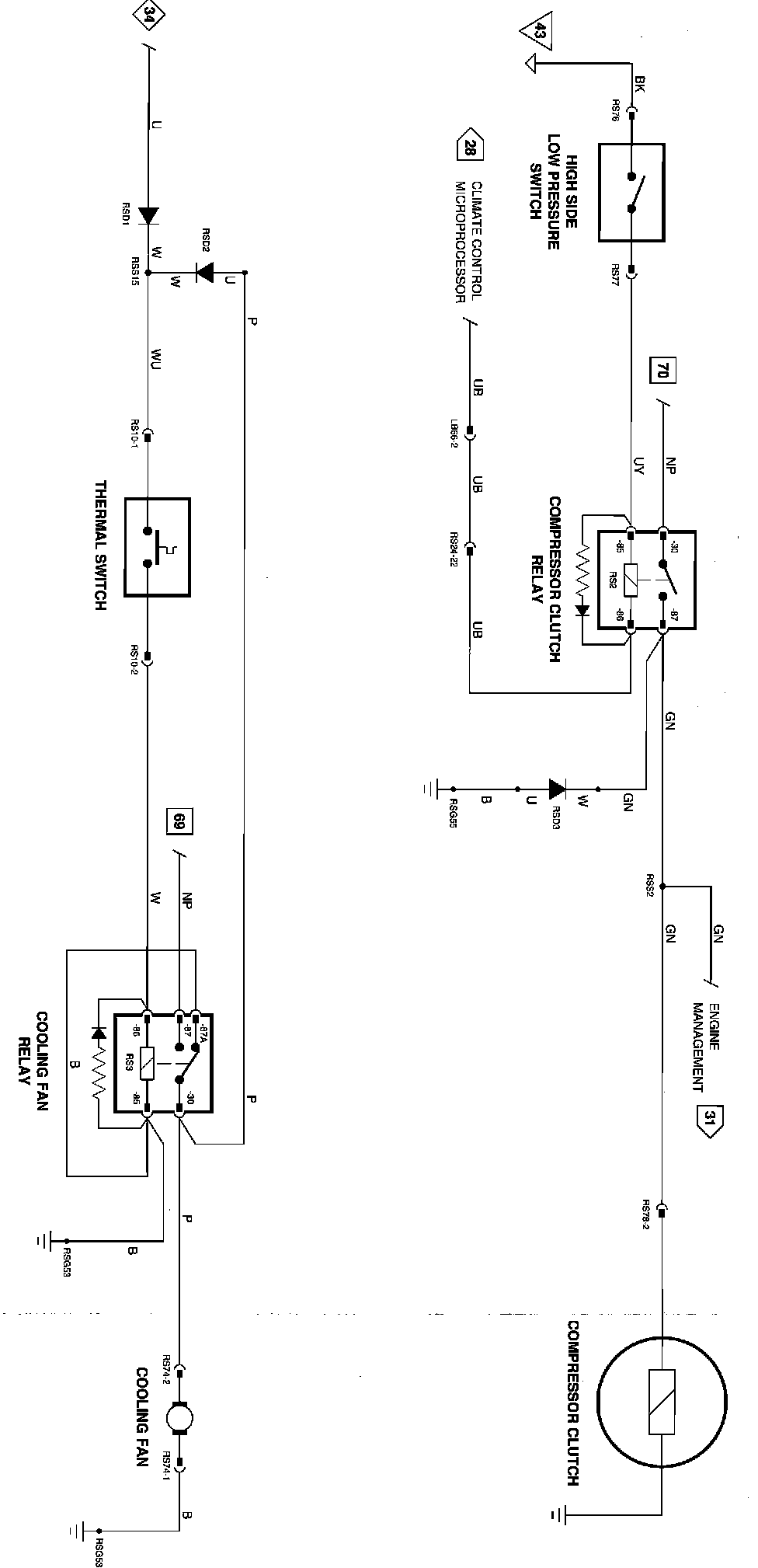

Compressor Clutch; Cooling Fan:
