Home >> Jaguar >> 1989 >> XJ-6 L6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Figure Number >> Fig. 15

Fig. 15

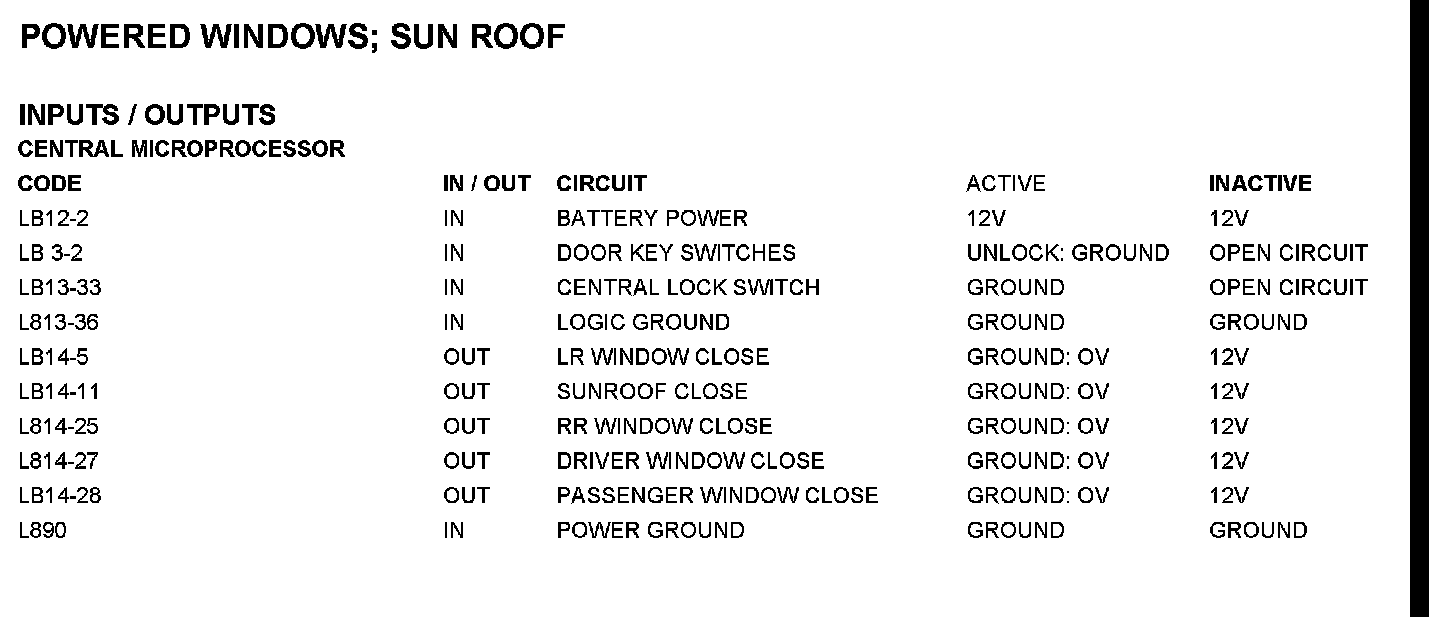

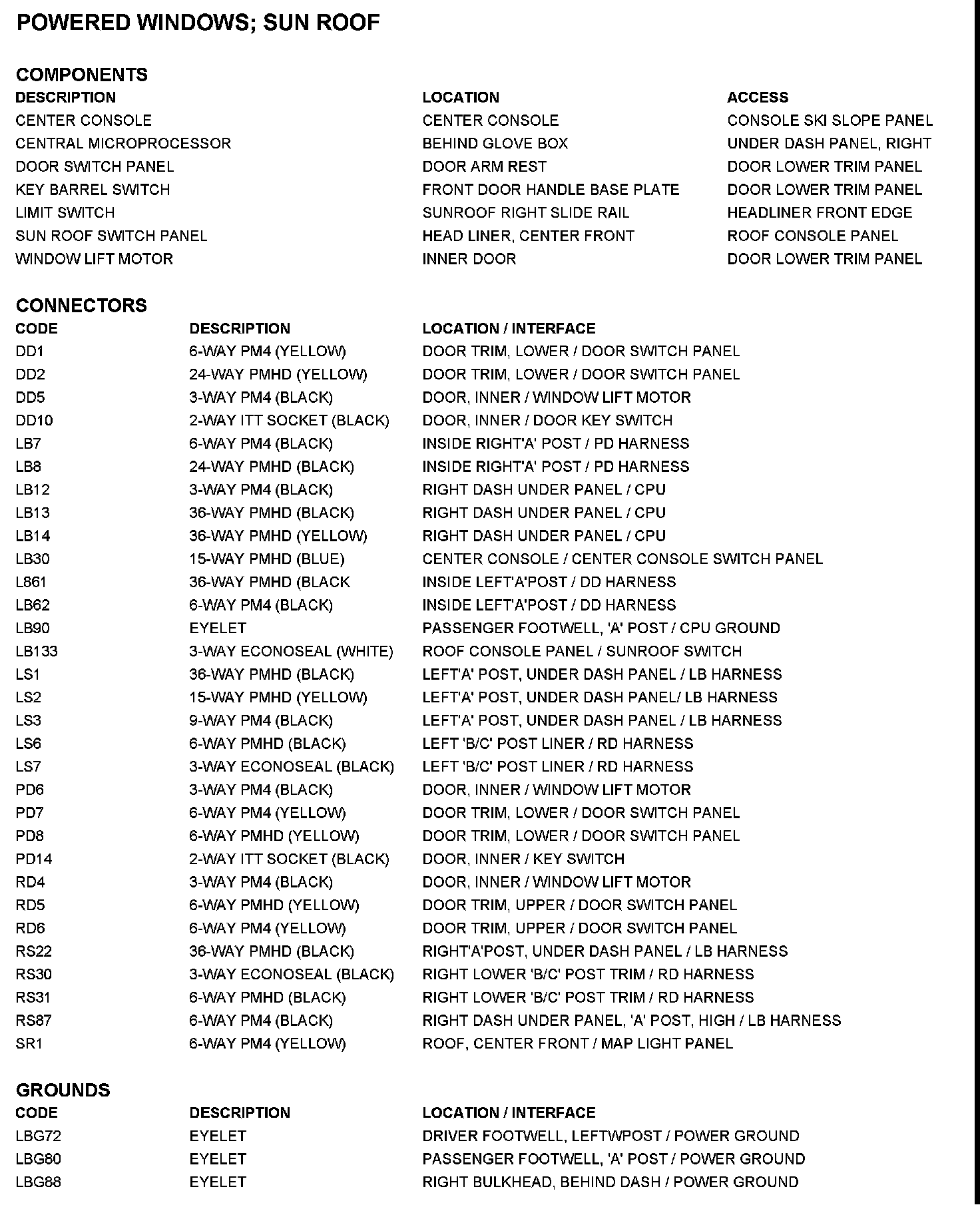

:c!Power Windows & Sun Roof (FIG 15):
