Thermal Vacuum Valve: Locations

Thermal Vacuum Valve:

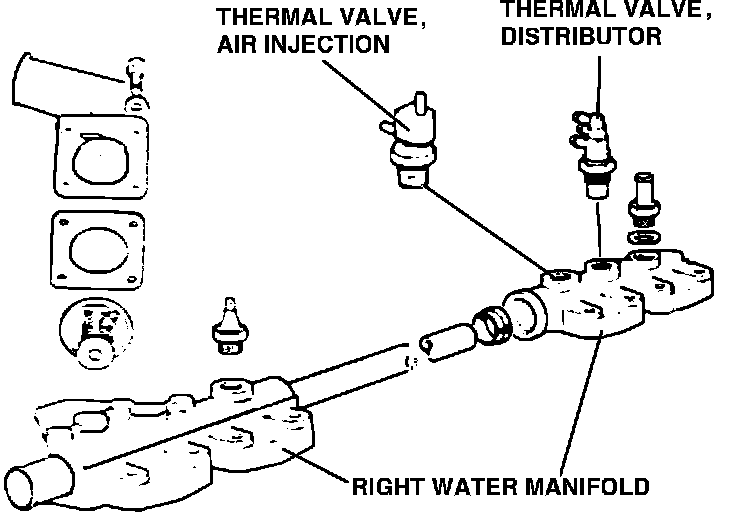

Located at right rear coolant manifold. It is the valve with three hose connections, closest to the firewall.

NOTE: These valves were fitted from Engine # 8S57762 up to Engine # 8S64244.
