Jaguar
>>
1988
>>
XJ-S V12-5.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Instruments & Trip Computer
Instruments & Trip Computer

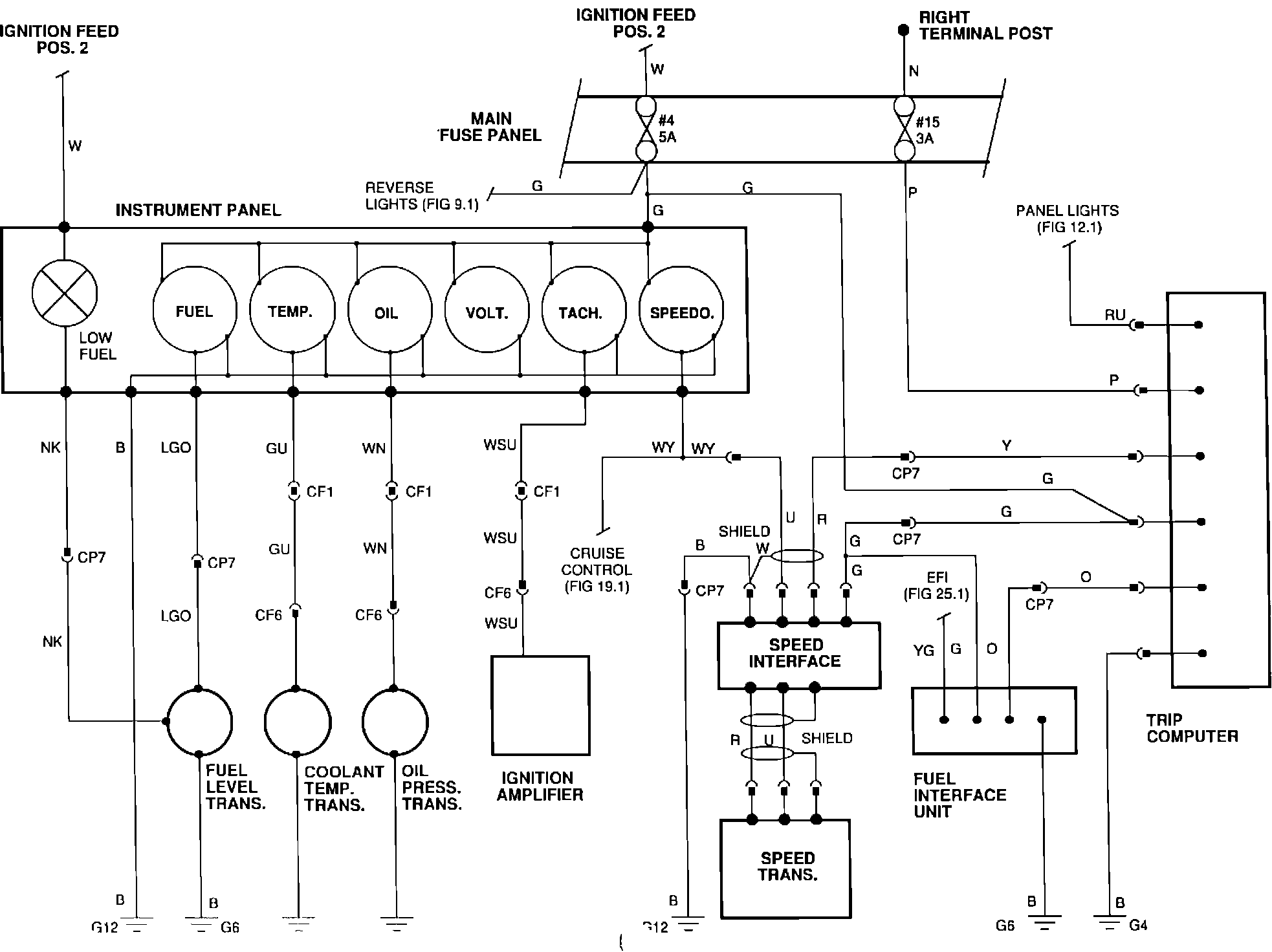

Instruments, Trip Computer:
