Ignition Switched Ground Distribution
Ignition Switched Ground Distribution

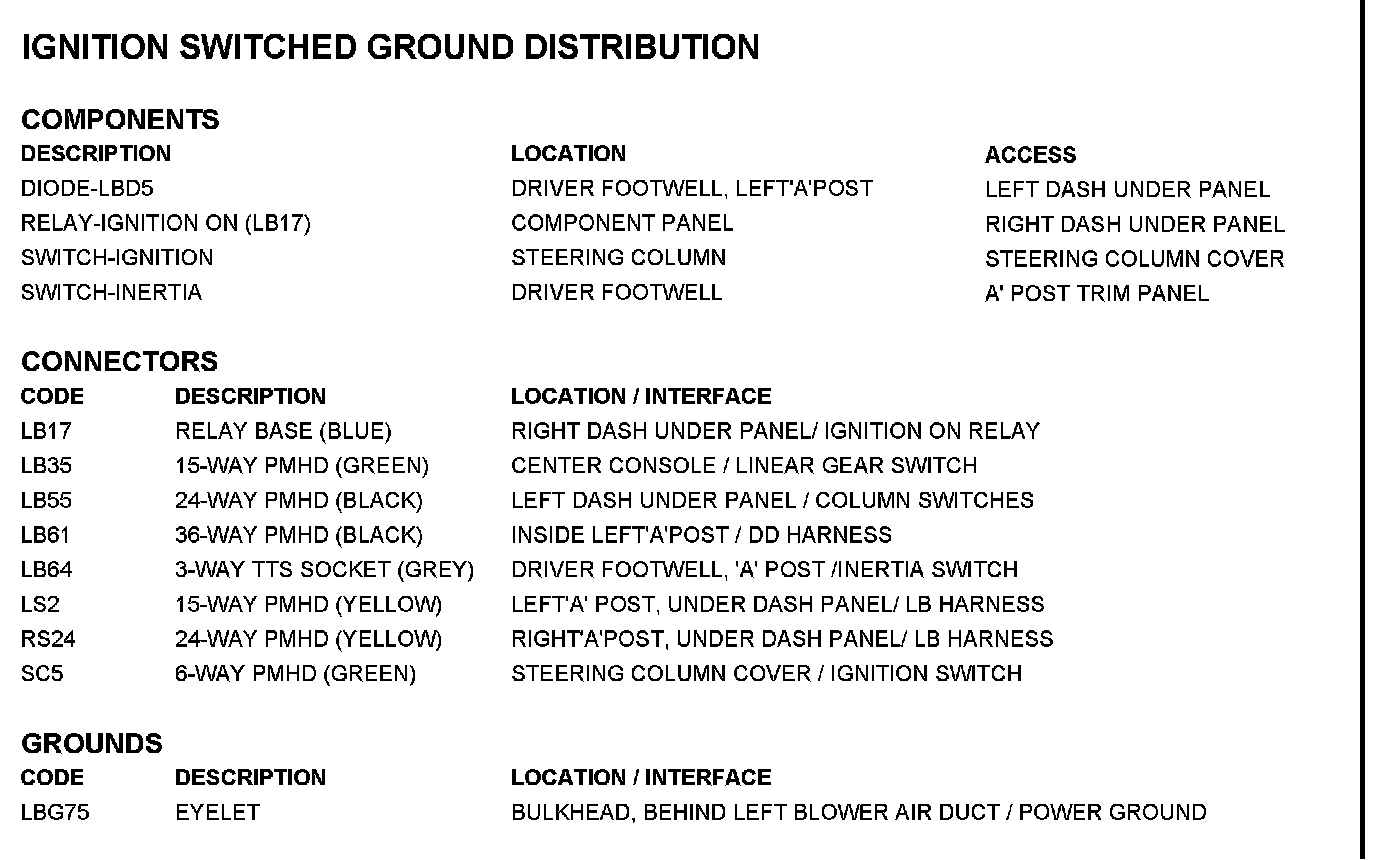

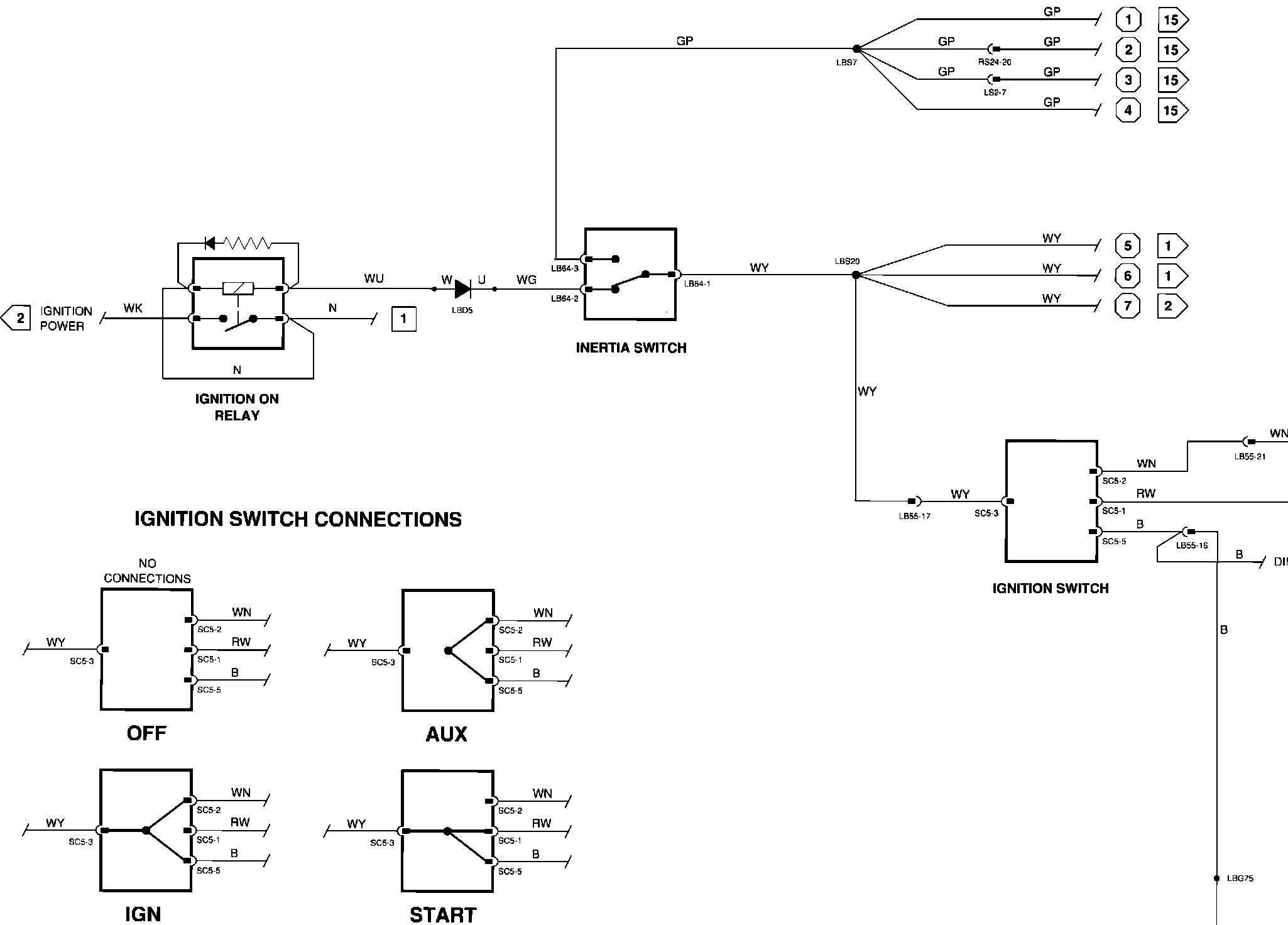

@u�Ignition Switched Ground Distribution:
