Jaguar
>>
1988
>>
XJ-6 L6-3.6L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

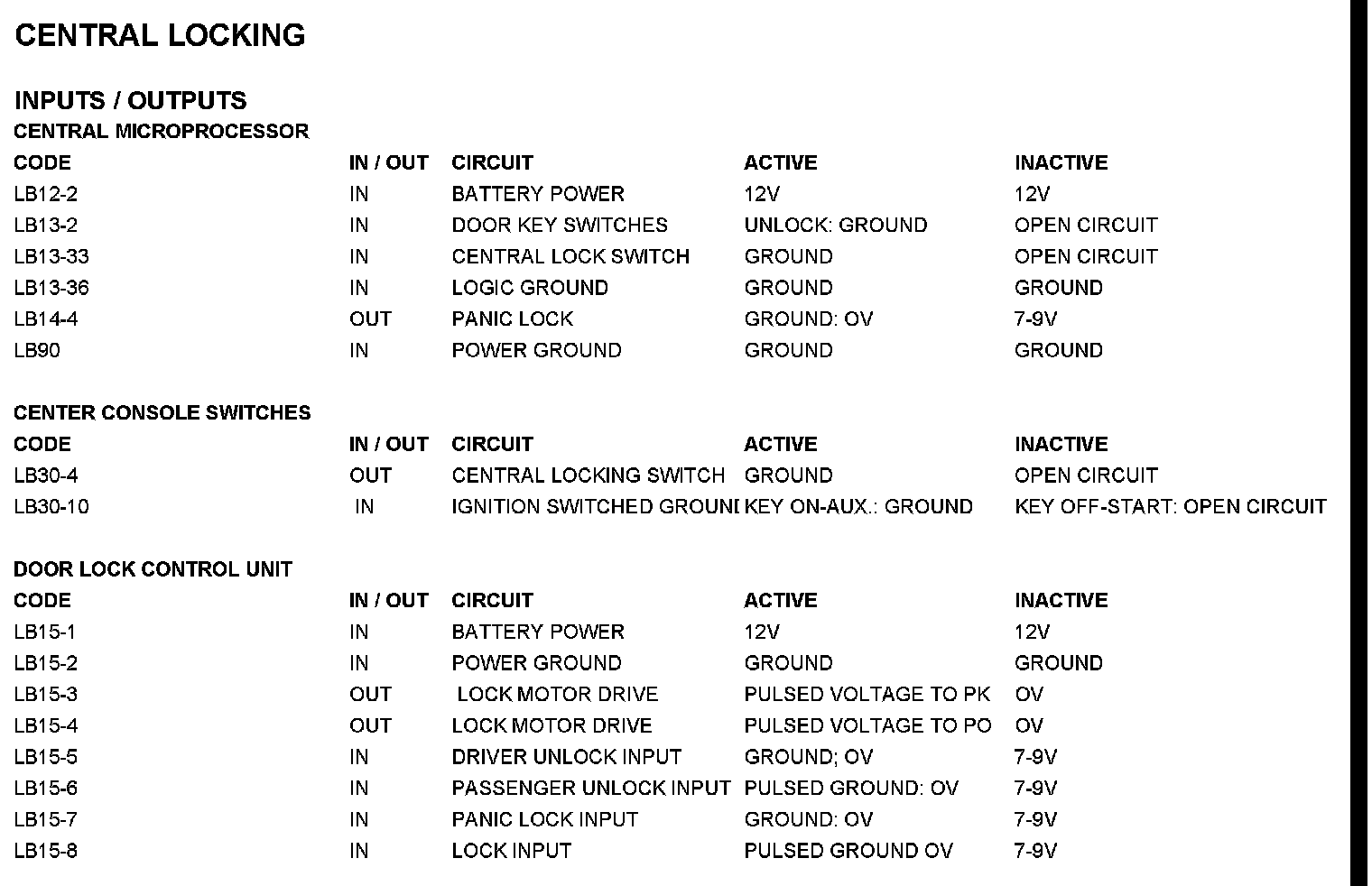

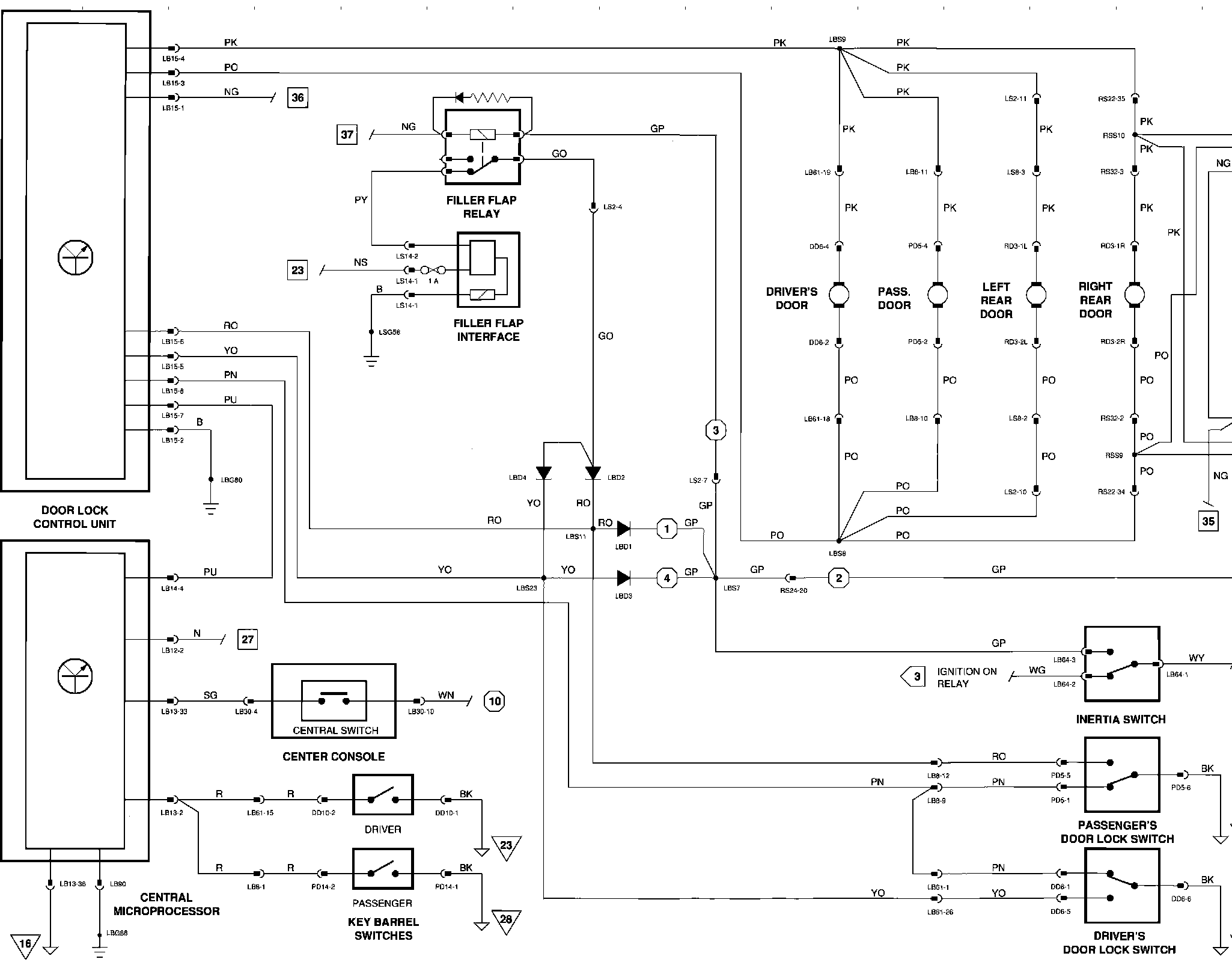

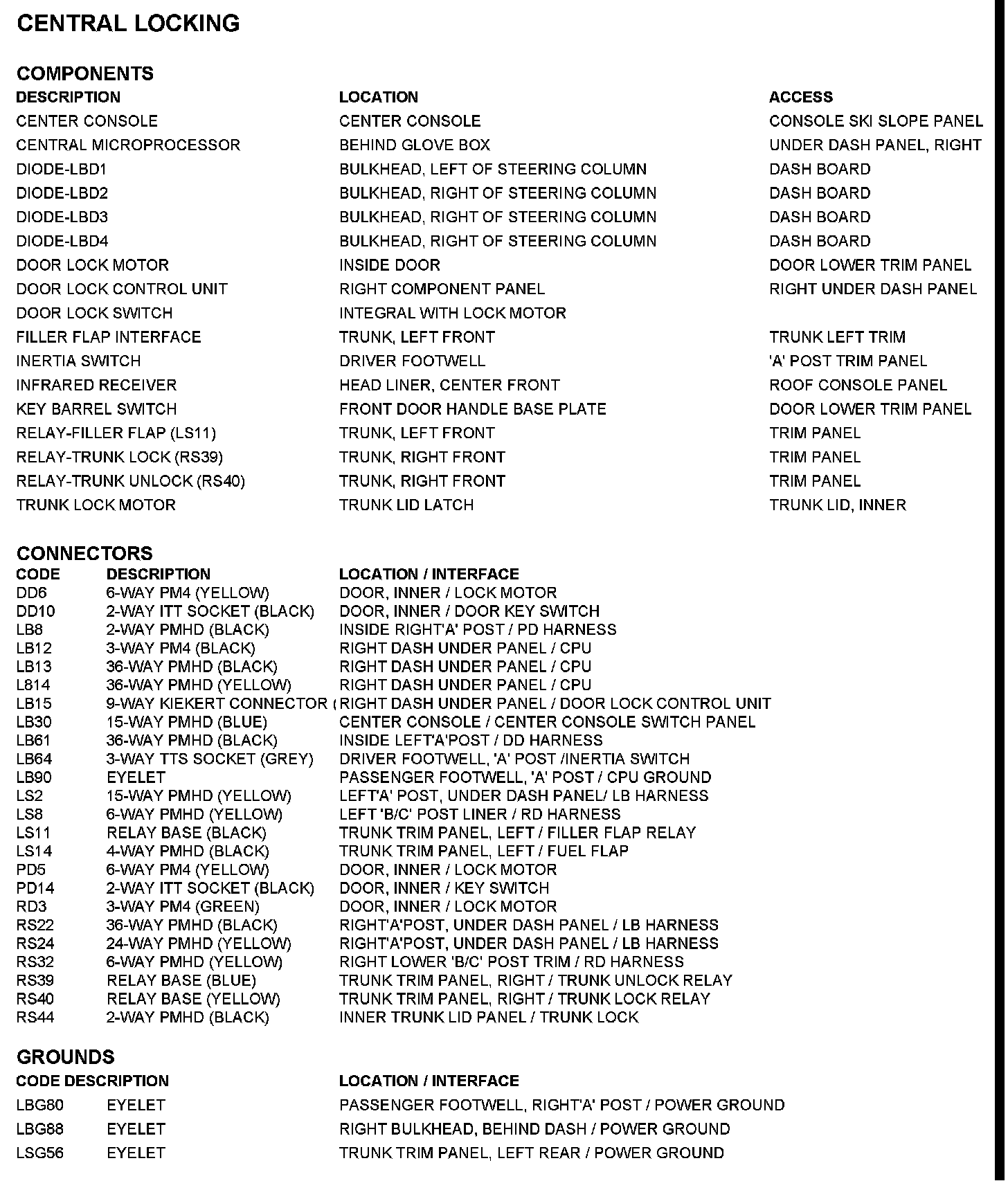

�}� Central Locking:
