MOUNTING RUBBER - REAR

RENEW





NOTE: This operation covers both left and right mounting rubber assemblies.

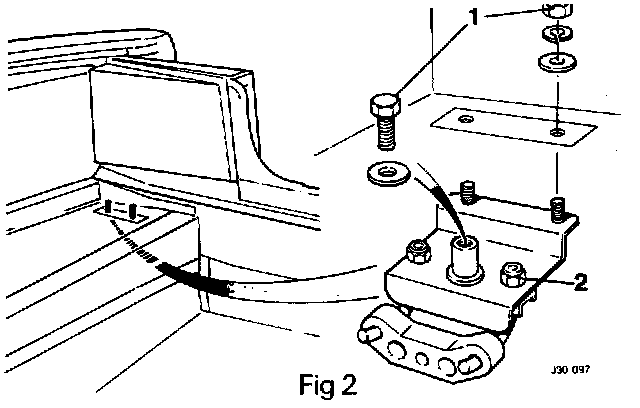

Open the boot. Carefully displace the carpet to expose the rear mounting securing nuts/bolt (1). Remove the mounting securing nuts (2). Remove the mounting. Remove the spacers. Fit and seat the new mounting to the tail pipe. Fit and seat the mounting spacers.

Fit the mounting to the body. Fit and tighten the securing bolts.

Smear the carpet with adhesive. Position the carpet to the boot floor. Close the boot.

DATA

TORQUE FIGURES

Rear mounting to floor 8-10Nm

SPANNER SIZES

1/2AF
