Mounting Rubber-Front
MOUNTING RUBBER - FRONTRENEW
NOTE: This operation covers both left and right mounting rubber assemblies.

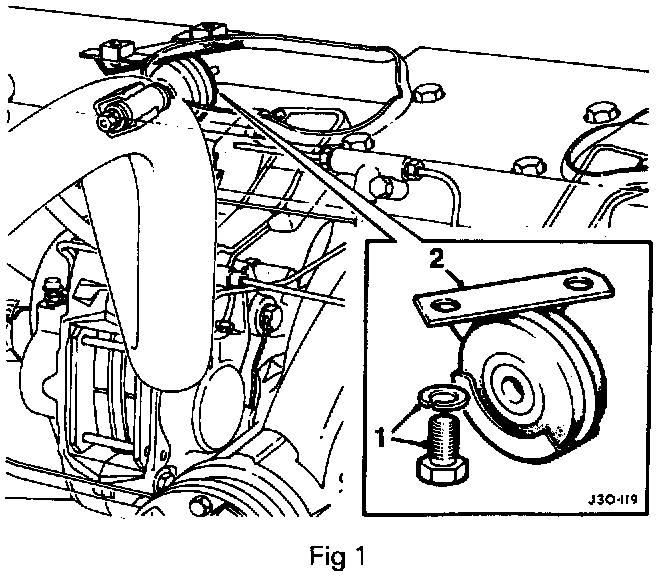

Drive the vehicle on to a ramp. Raise the ramp. Remove the mounting to body securing bolts (1). Rotate the mounting through 180 degrees and remove the mounting (2) from the exhaust pin.
Displace and remove the mounting rubber. Fit the new rubber to the mounting. Fit the mounting to the exhaust pin, align the mounting
securing bolt holes, fit and tighten the securing bolts. Lower the ramp.
DATA
TORQUE FIGURES
Front mounting to body 22-28Nm
SPANNER SIZES
1/2AF
