Rear

Service tool: Engine support tool MS 53(A)

REMOVE
- Disconnect the battery.

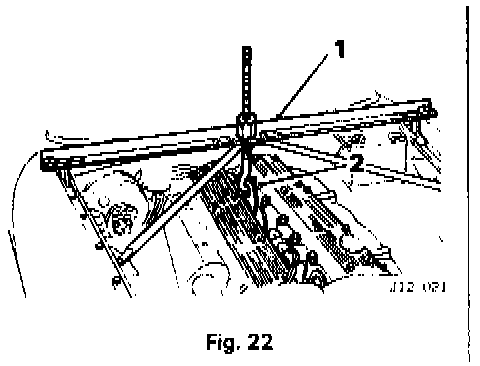

Figure 22

- Position service tool MS 53(A) (1, Fig 22) across the rear engine lifting eye 12) and set the hook to support the engine.
- Jack up the front of the car and place it on two stands.





Figure 23

- Disconnect the intermediate exhaust pipe (1, Fig 23) from the down pipe, remove the sealing olive.
- Remove the tie plate between the transmission and oil pan.
- Place the jack (2, Fig 23) with a suitable wooden block under the mounting plate and remove the four setscrews (3, Fig 23) and washers.
- Lower the jack and remove the rear mounting assembly.
- Collect the spacers and remove the spring.

REFIT
- Fit the spring and inner spacers to the mounting assembly and raise it into position on the jack.
- fit the rear spacers, place washers on the setscrews, insert and tighten; lower the jack.
- Fit the center spacer and replace the tie plate.
- Reconnect the exhaust pipe, using sealant at the joints, remove the car from the stands and remove tool MS 53(A)
