Power Distribution - Direct Battery Feeds
Power Distribution - Direct Battery Feeds

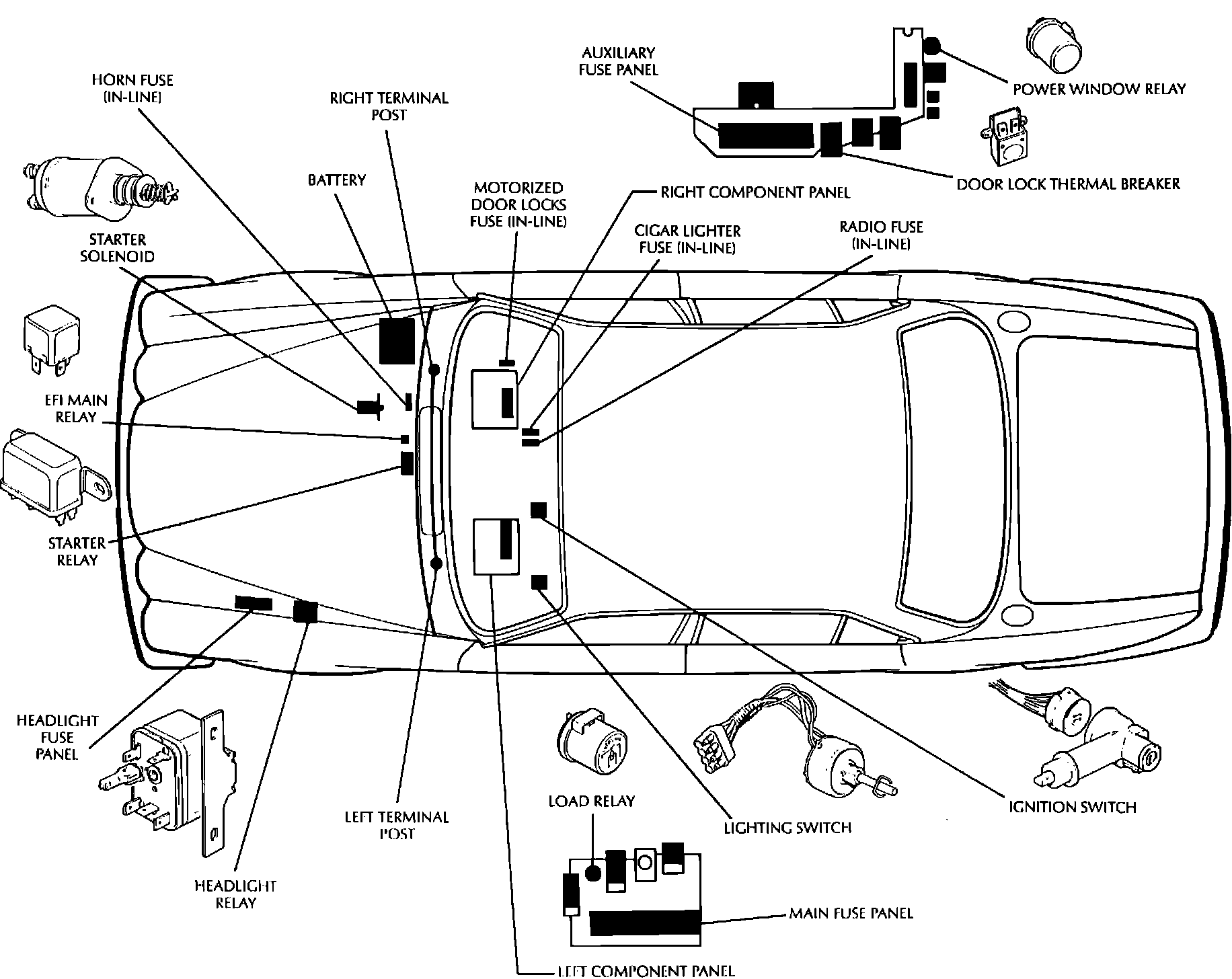

Battery Power Distribution Component Locations:
