Glove Compartment Lid

Removing





- Remove screws securing sliding stay to fascia frame.

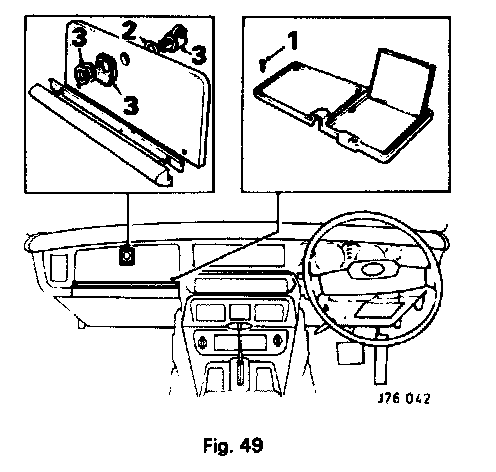

- Remove the screws securing the glovebox lid to the frame; withdraw the lid. Remove the six screws (1, Fig. 49) securing the tray liner to the lid; lift off the liner. Remove the two screws (2, Fig. 49) securing the lock retaining plate.

- Unscrew the retaining ring (3, Fig. 49) and withdraw the lock. lid pull and mounting plate.

Refitting

- Refit the mounting plate, lid pull and lock; ensure that key aperture in lock is vertical and tighten the locking ring.

- Refit the lid liner.

- Place lid in position and tighten the securing screws.

- Refit the sliding stay, check that lid closes properly and check lock for correct operation.

NOTE: Position of lid in fascia can be altered by repositioning the hinges on the fascia frame.
