Home
>>
Isuzu
>>
1993
>>
Stylus L4-1588cc 1.6L SOHC (4XE1-V)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Testing and Inspection
>>
Pinion Gear Does Not Properly Engage Ring Gear
Pinion Gear Does Not Properly Engage Ring Gear

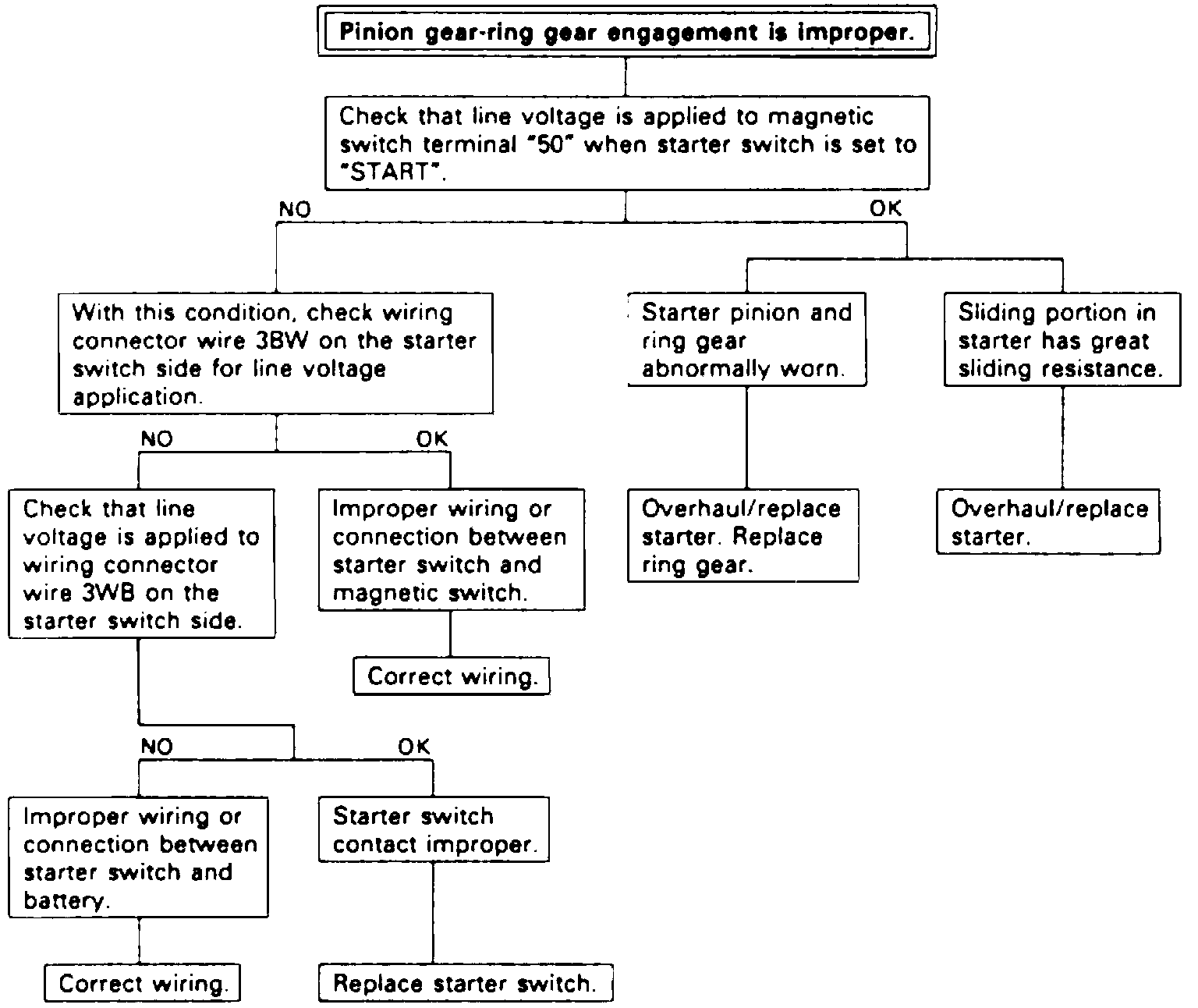

Fig. 1 Pinion Gear-ring Engagement Is Improper.:
