Ignition Coil: Specifications

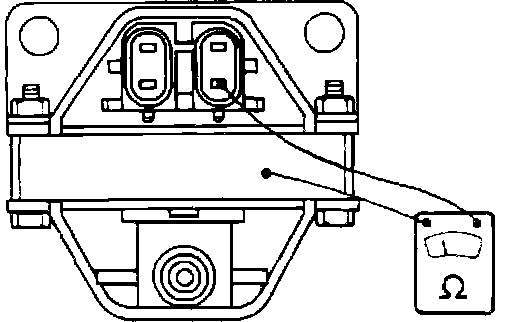

Ignition Coil:





- Measure resistance between terminals as shown.
Resistance should be infinite (open)

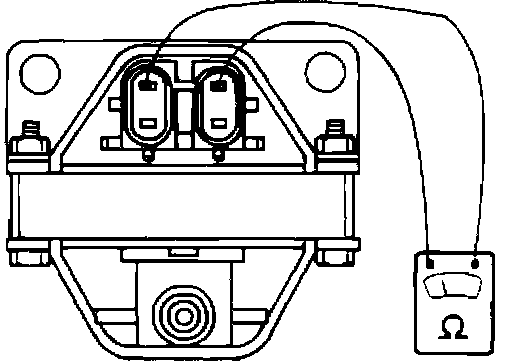

Ignition Coil:





- Measure resistance between terminals as shown.
Resistance should be very low or zero

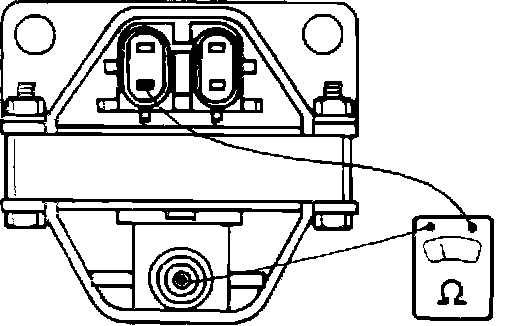

Ignition Coil:





- Measure resistance between terminals as shown.
Resistance should be infinite (open)
