Home >> Isuzu >> 1991 >> Impulse L4-1588cc 1.6L DOHC Turbo (4XE1-WT) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Diagrams >> Electrical Diagrams >> Engine Management Wiring >> Electronic Control Module (ECM) Connections >> Outputs >> Check Engine Indicator Control

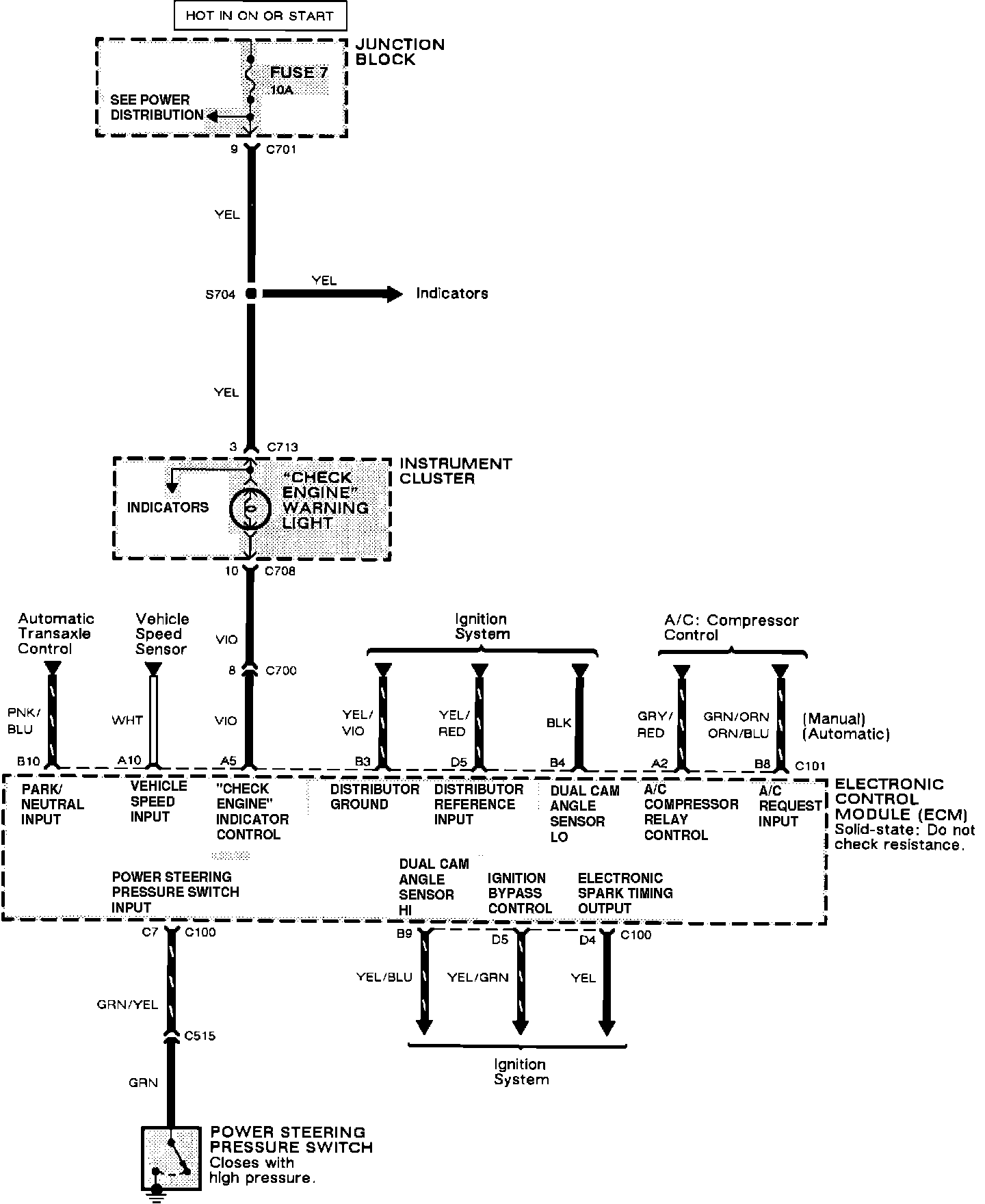

Check Engine Indicator Control

Electronic Engine Control:
