A/T Shift Cable - Manual Update

BULLETIN NUMBER
SB91-05-007

ISSUE DATE
October 10, 1991

GROUP
TRANSMISSION

IMPULSE (JI) A/T SHIFT CONTROL CABLE PROCEDURES
(WORKSHOP MANUAL UPDATE)

AFFECTED VEHICLES

1991 Impulse (JI) models equipped with automatic transmission after VIN M7417885.

SERVICE INFORMATION





Automatic transmission shift control cable removal and installation procedures for affected vehicles are not specified in the Workshop Manual (see illustration).

This Service Bulletin contains A/T shift control cable removal and installation procedures for affected vehicles. These parts can be retrofitted as a set of new parts to earlier JI models equipped with automatic transmission.

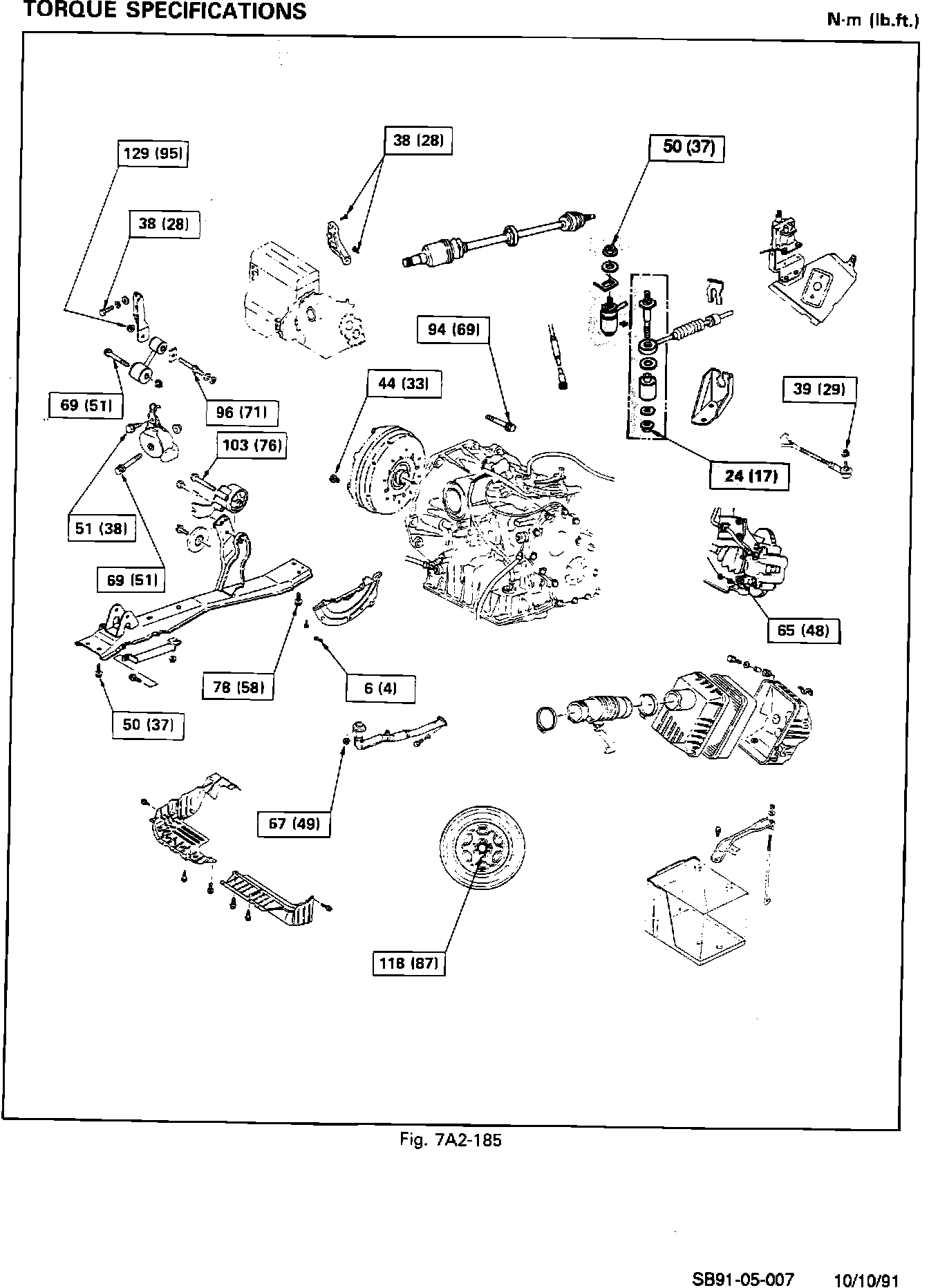

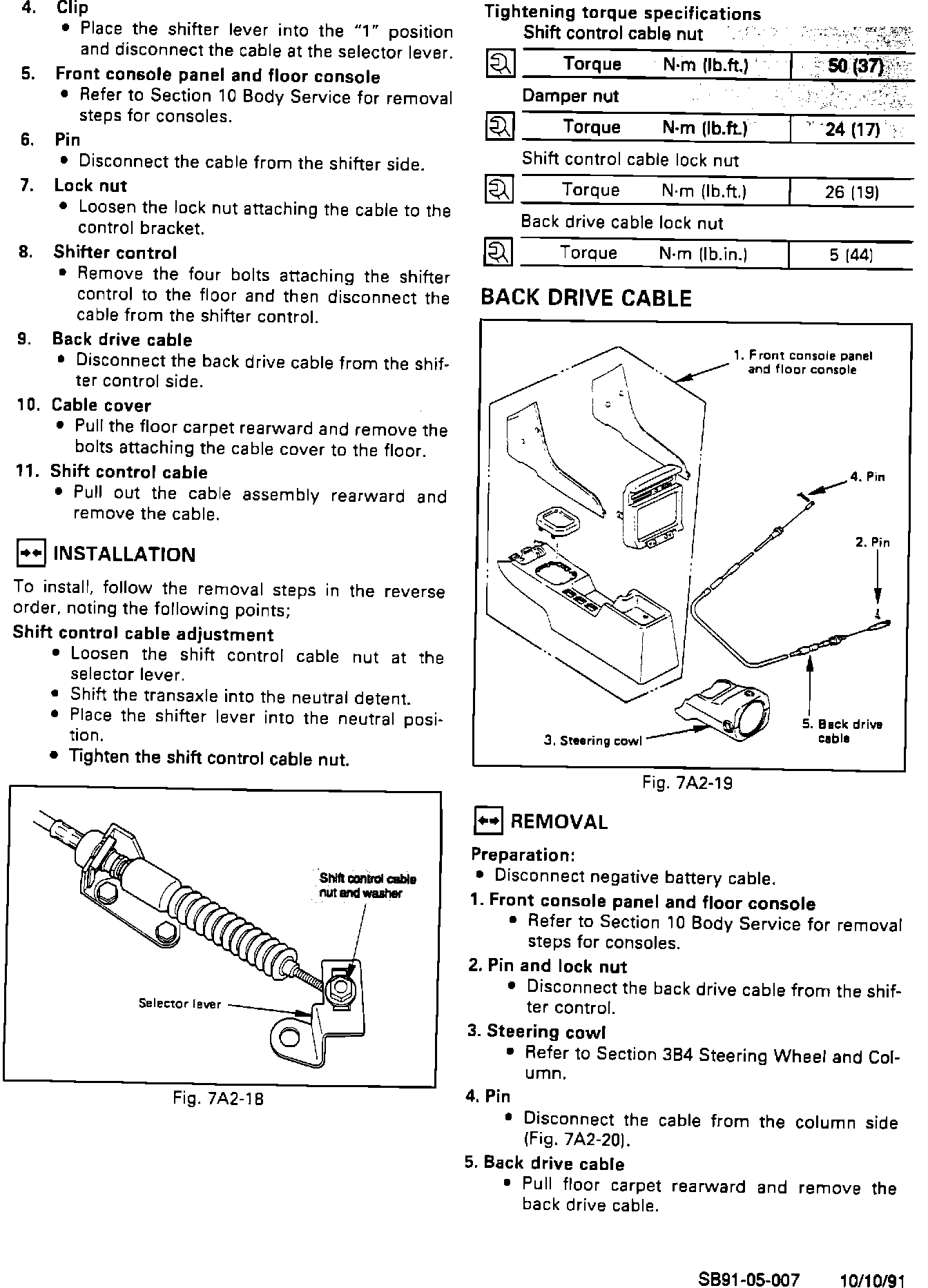

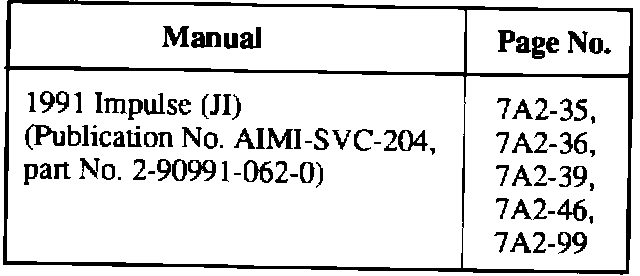

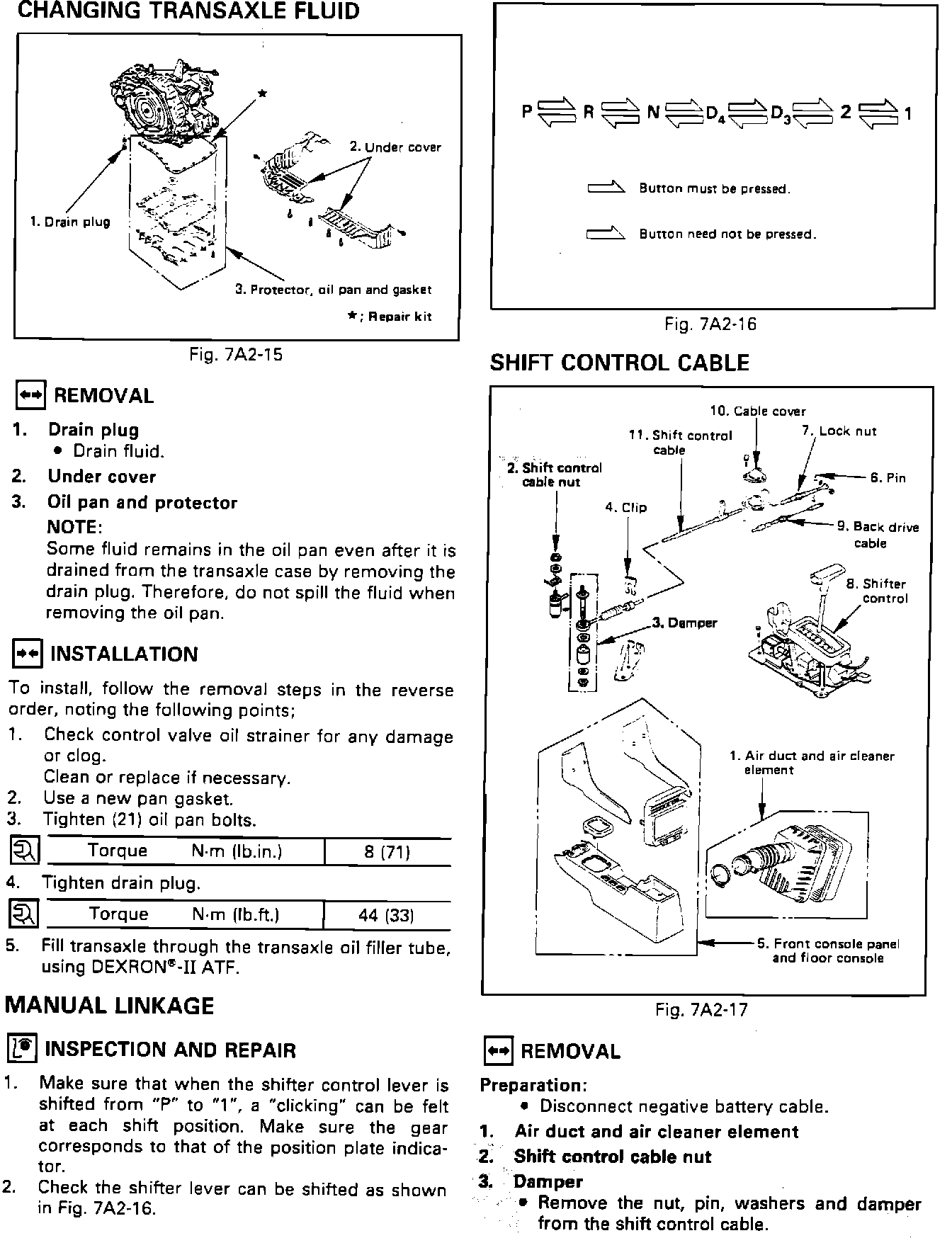

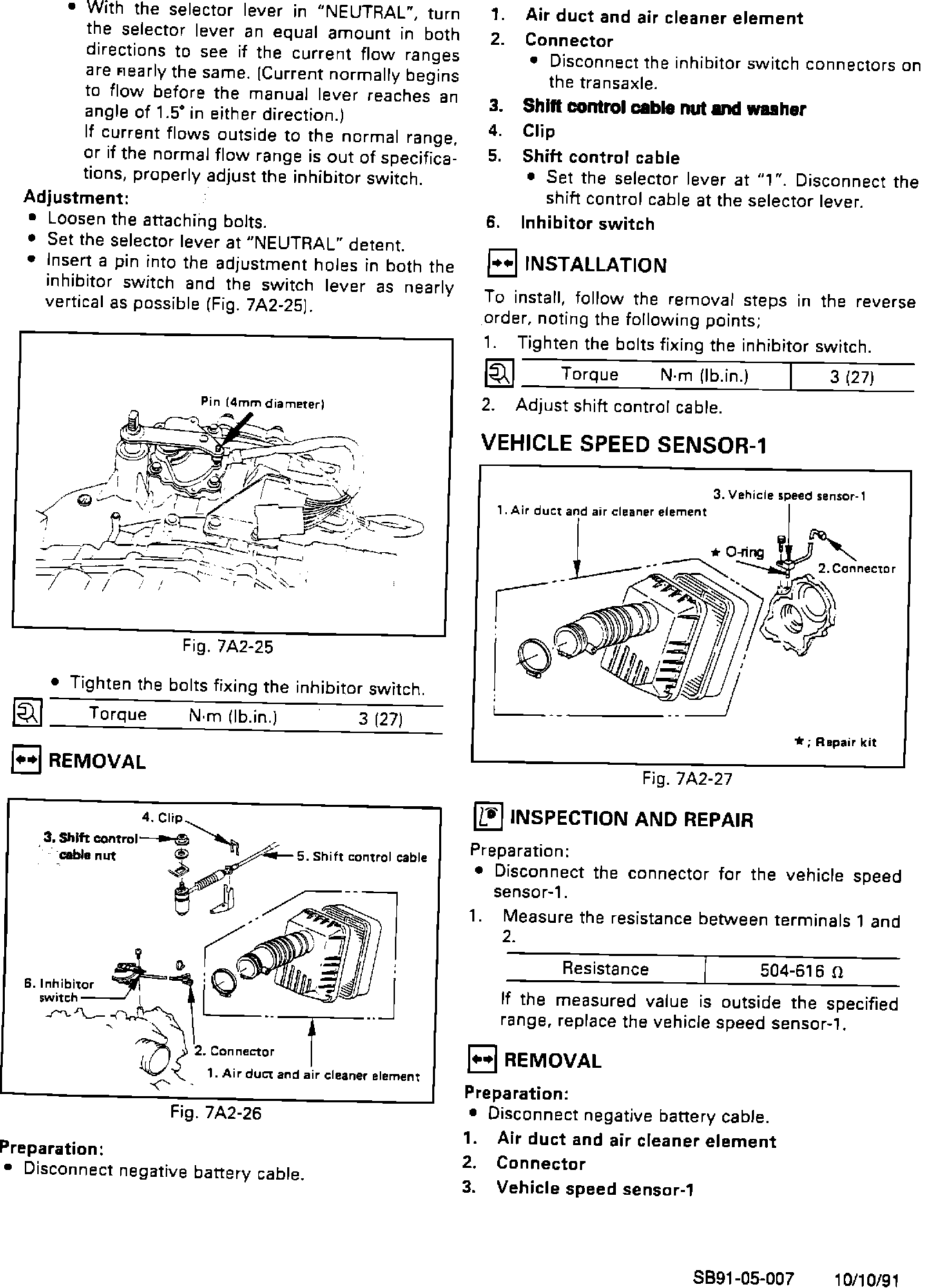

Page 7A2-35





Page 7A2-36

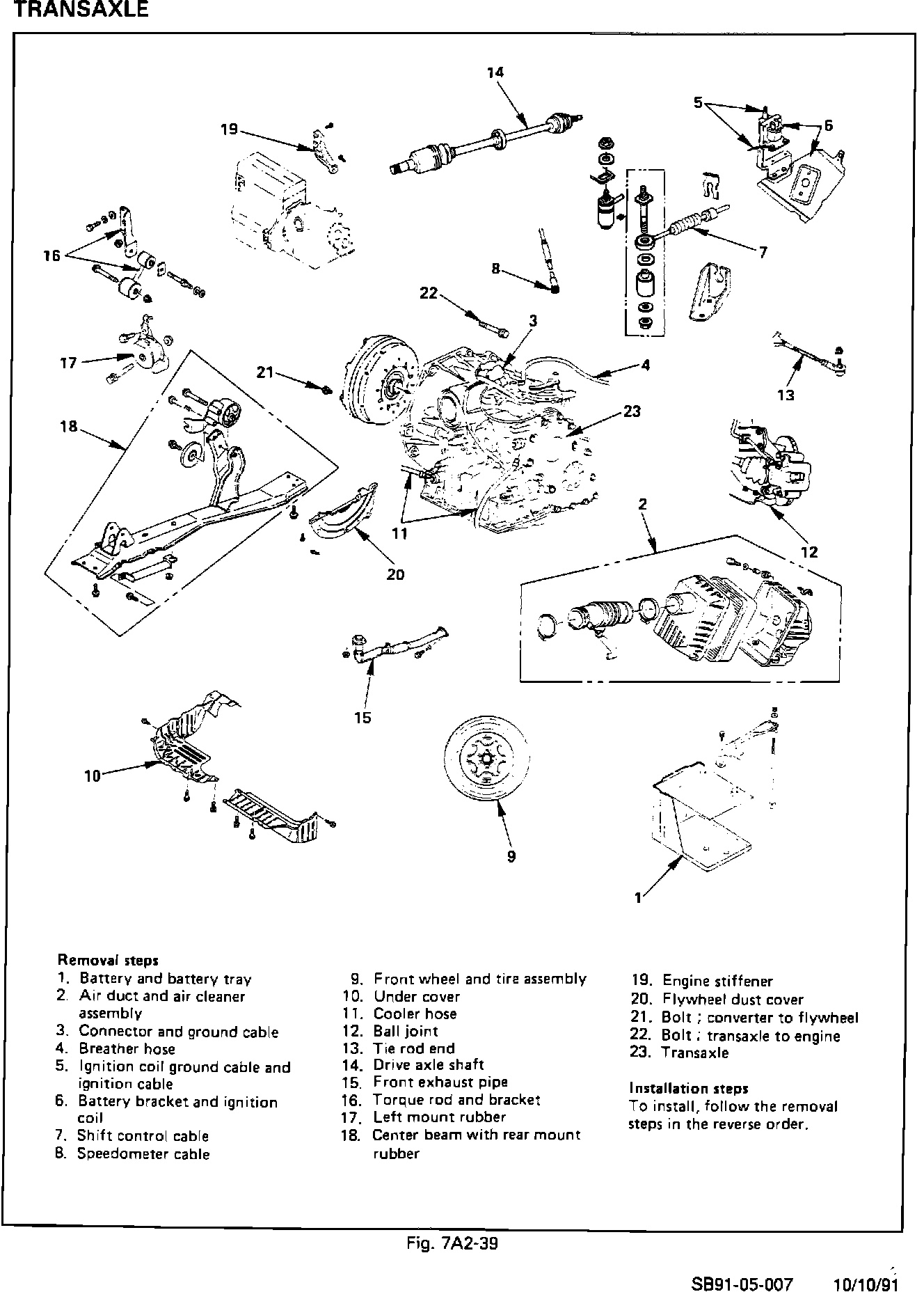

Page 7A2-39





Page 7A2-46





Page 7A2-99
