Pick-Up Coil: Adjustments

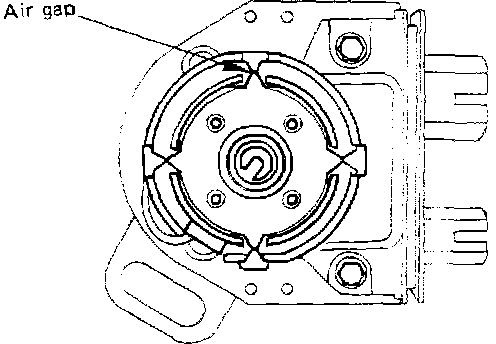

Air Gap:
- Measure air gap with feeler gauge.
- If measurement is outside specified limits, replace signal generator.
AIR GAP SPECIFICATION
0.2 - 0.4 mm (0.008 - 0.0016 in)
- Measure air gap with feeler gauge.
- If measurement is outside specified limits, replace signal generator.
AIR GAP SPECIFICATION
0.2 - 0.4 mm (0.008 - 0.0016 in)
