Home
>>
Isuzu
>>
1991
>>
Impulse L4-1588cc 1.6L DOHC (4XE1-W)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
>>
Turbo
Turbo

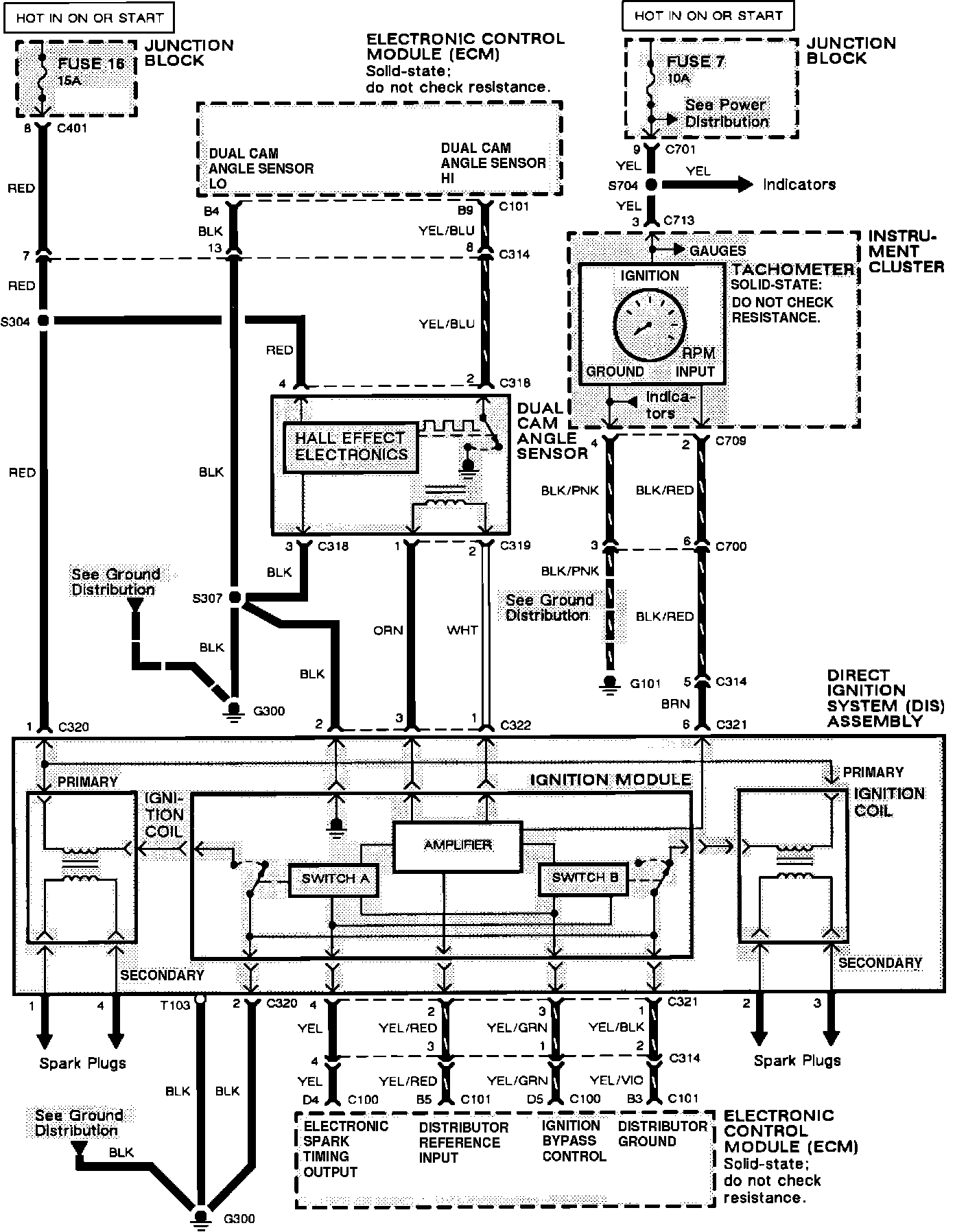

Ignition System (Turbo Models):
