ECM Wiring Diagrams

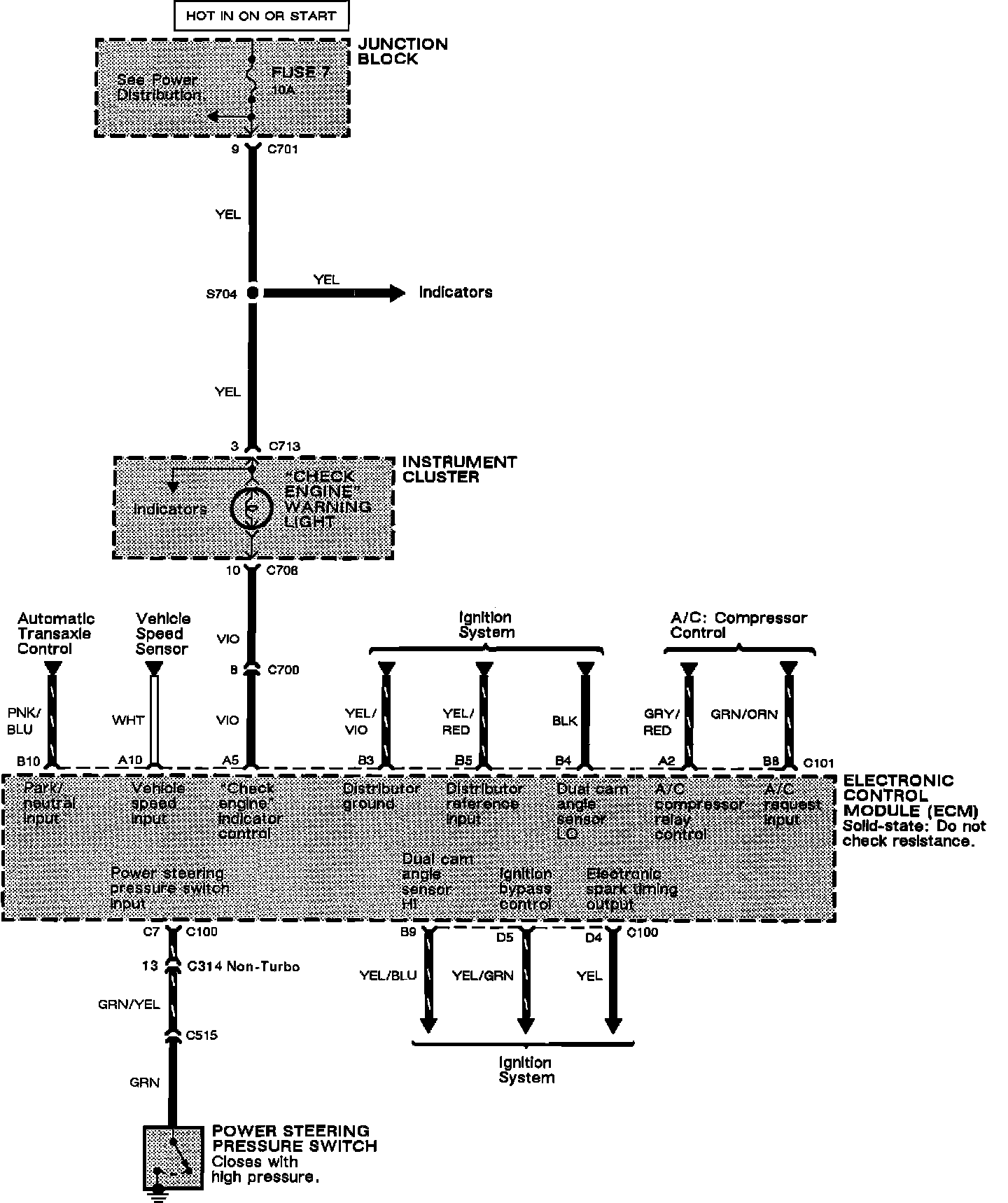

Engine Management:

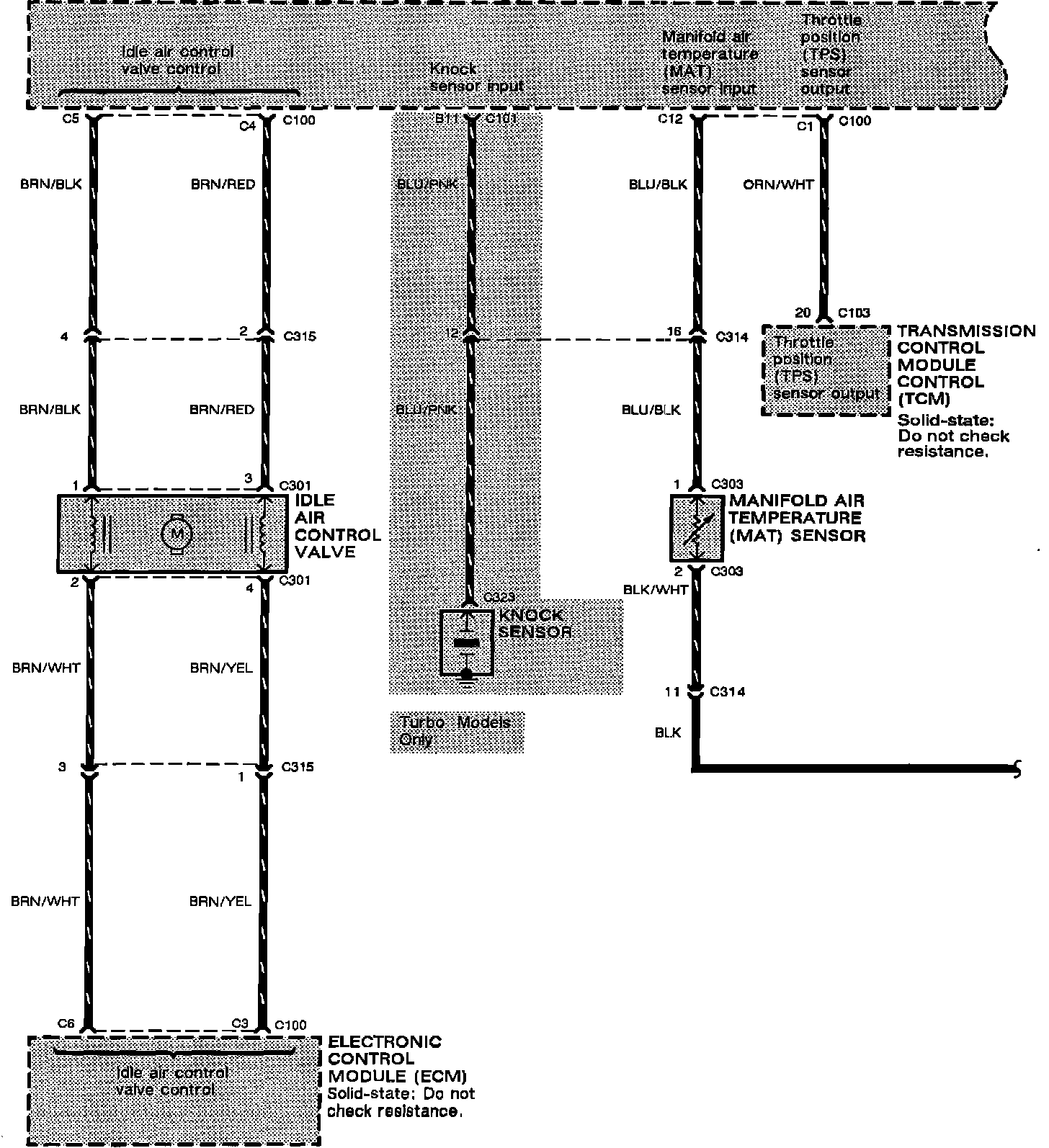

Engine Management:



Engine Management:



Engine Management:



Engine Management:
