Home
>>
Isuzu
>>
1991
>>
Impulse L4-1588cc 1.6L DOHC (4XE1-W)
>>
Repair and Diagnosis
>>
Maintenance
>>
Fuses and Circuit Breakers
>>
Fuse
>>
Locations
>>
Junction Block
Junction Block

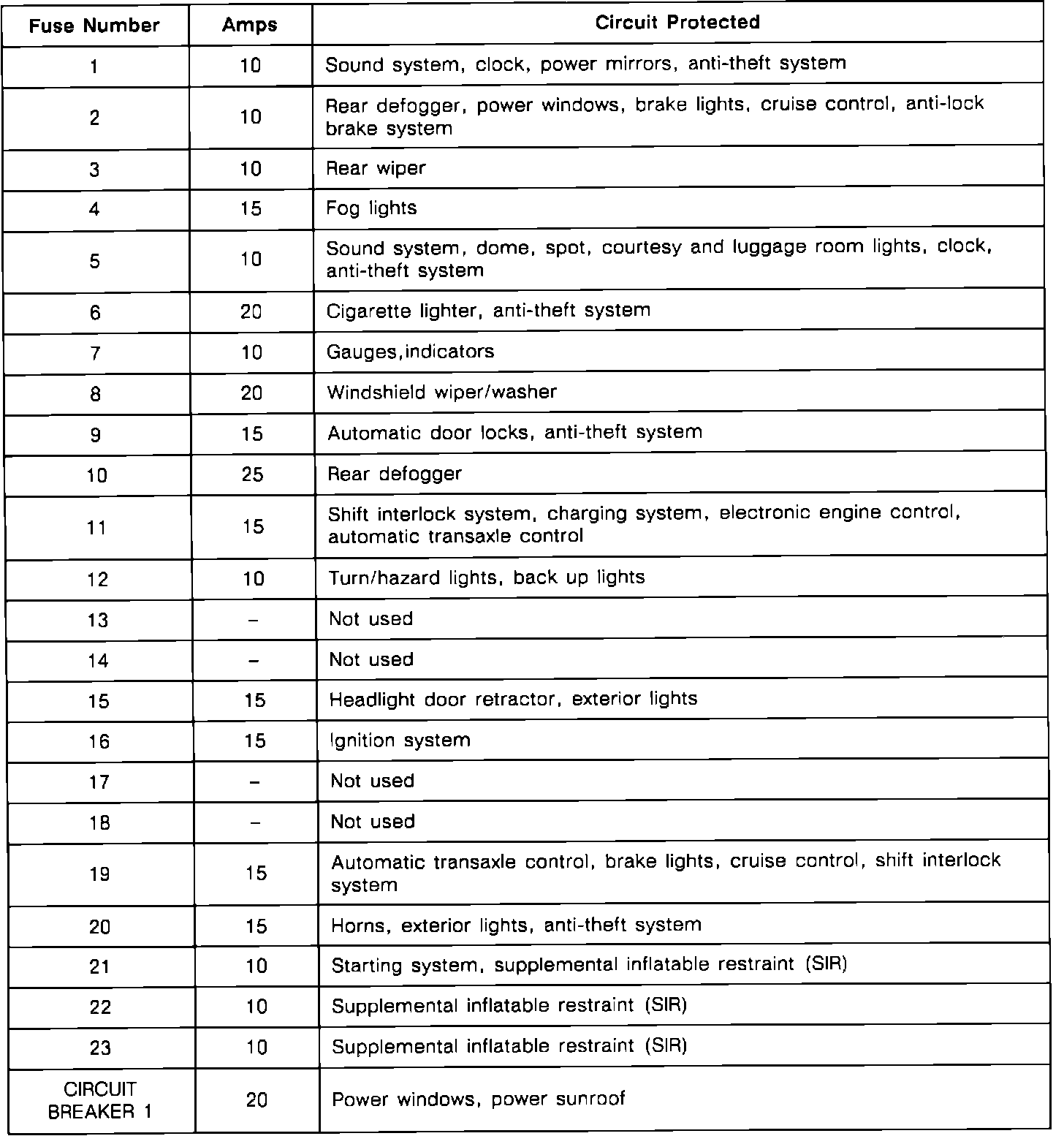

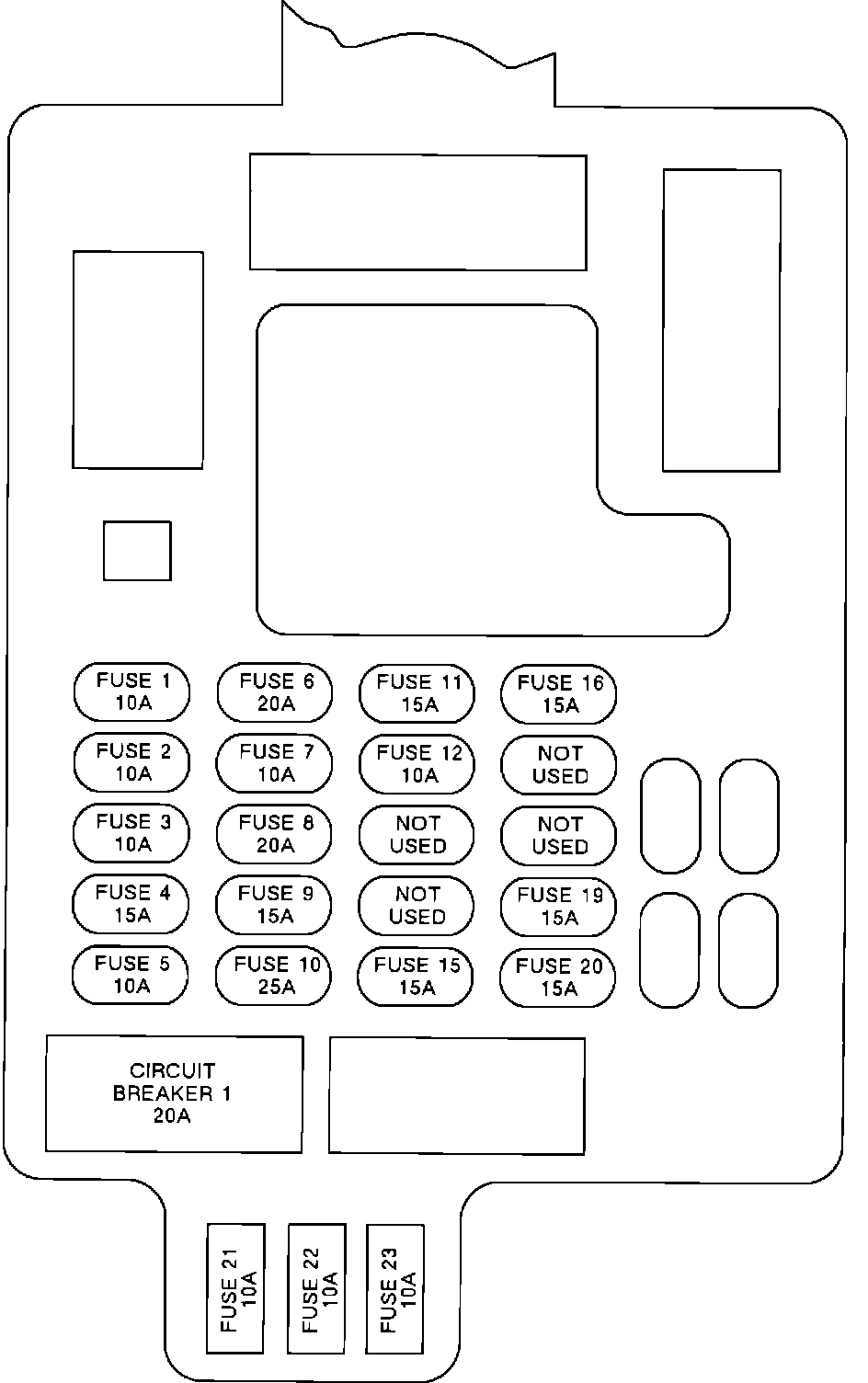

Junction Block:
Junction Block:
