Condenser Fan Motor: Testing and Inspection

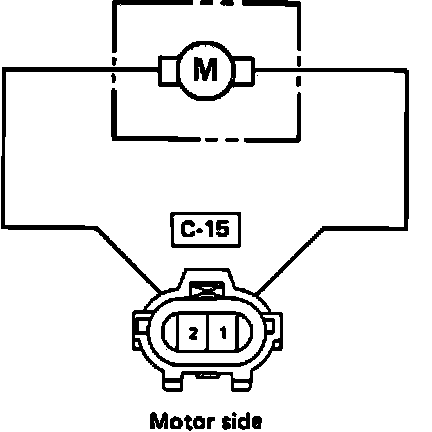

Fig. 8 Condenser fan motor connector terminal identification:

1. Connect battery positive to the condenser fan motor connector terminal 1, Fig. 8.
2. Connect battery ground to terminal 2.
3. Condenser fan motor should operate. If not, replace condenser fan motor.
