Ignition Switch
Ignition Switch

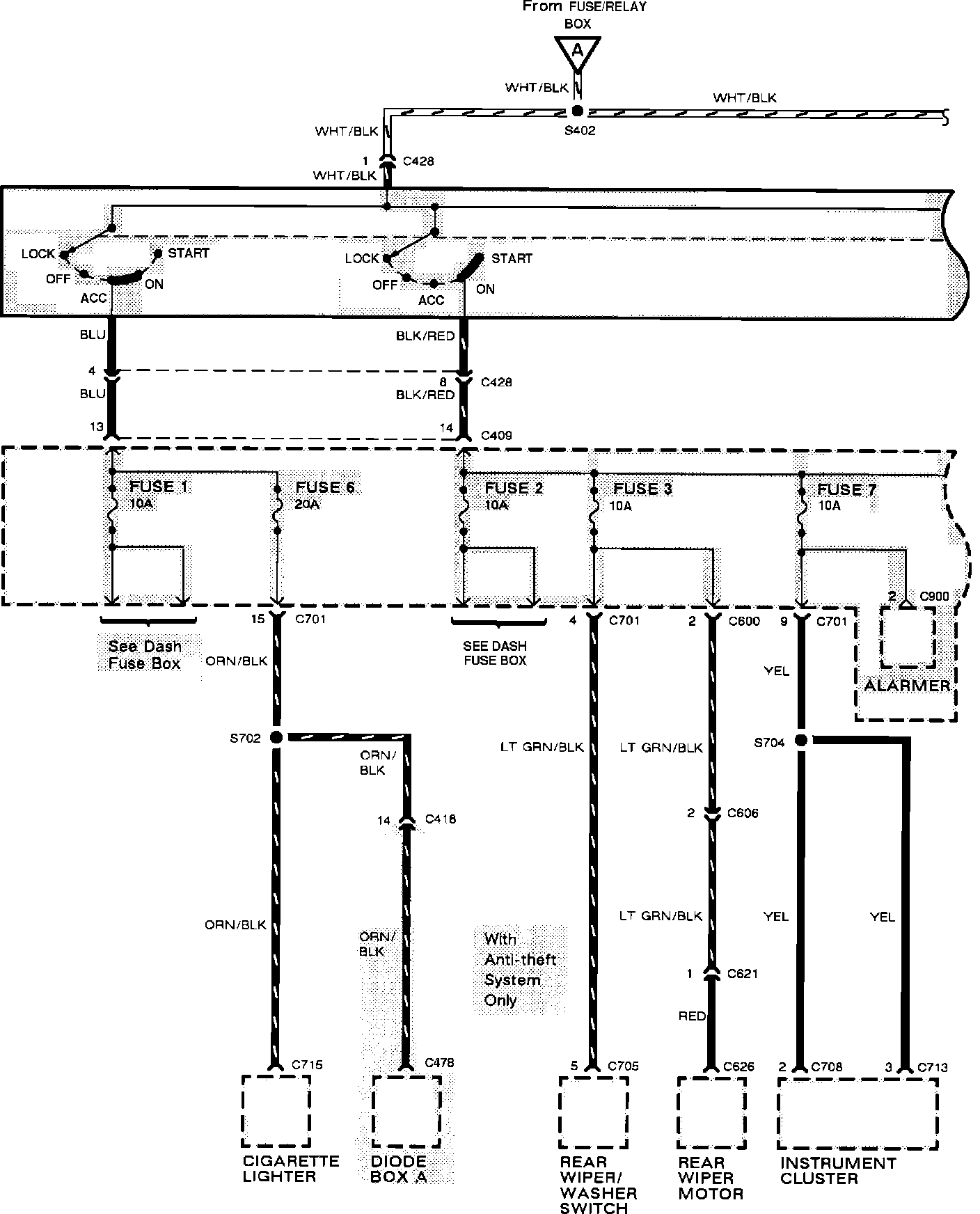

Power Distribution: Ignition Switch:

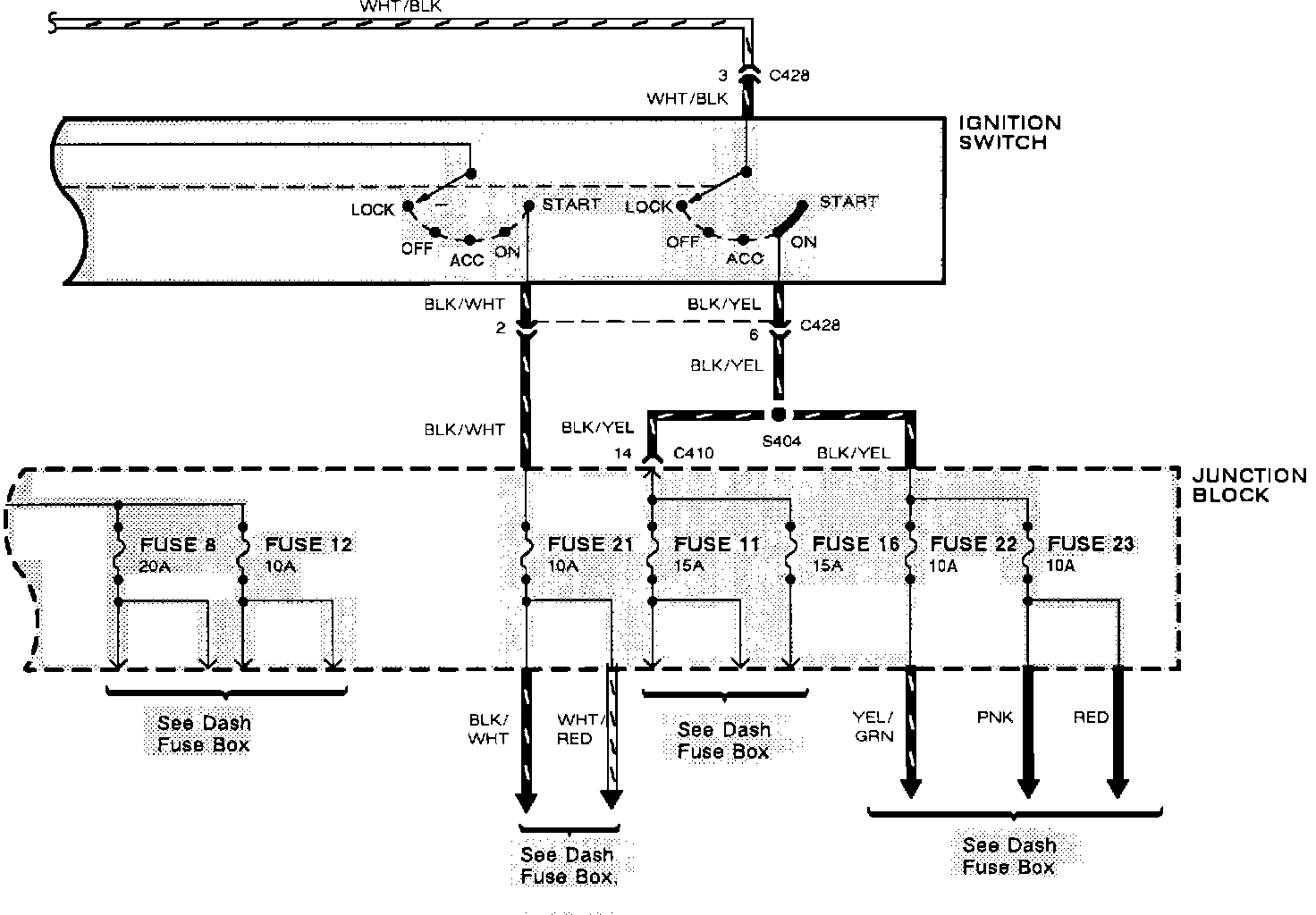

Power Distribution: Ignition Switch:
