Home
>>
Isuzu
>>
1991
>>
Impulse L4-1588cc 1.6L DOHC (4XE1-W)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antilock Brakes / Traction Control Systems
>>

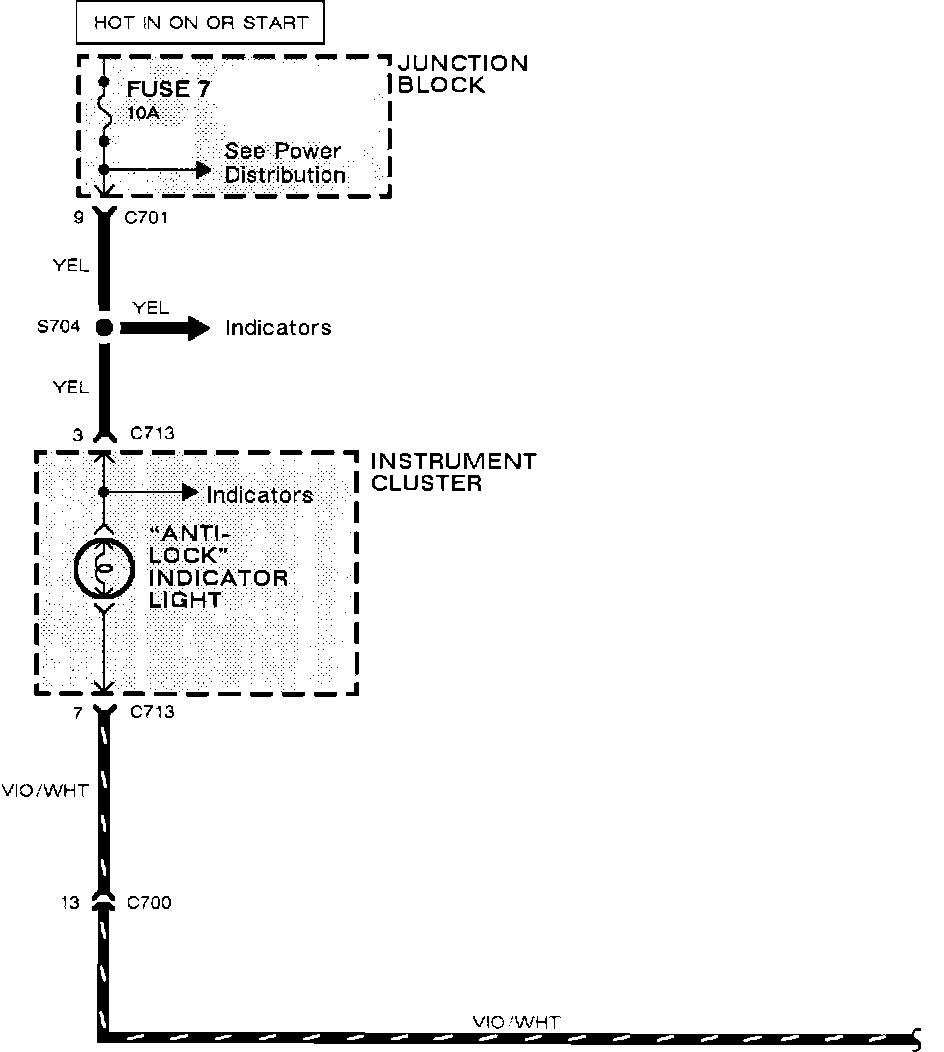

System Diagram
>>
Indicator
Indicator
Anti-Lock Brake System:
