Rear

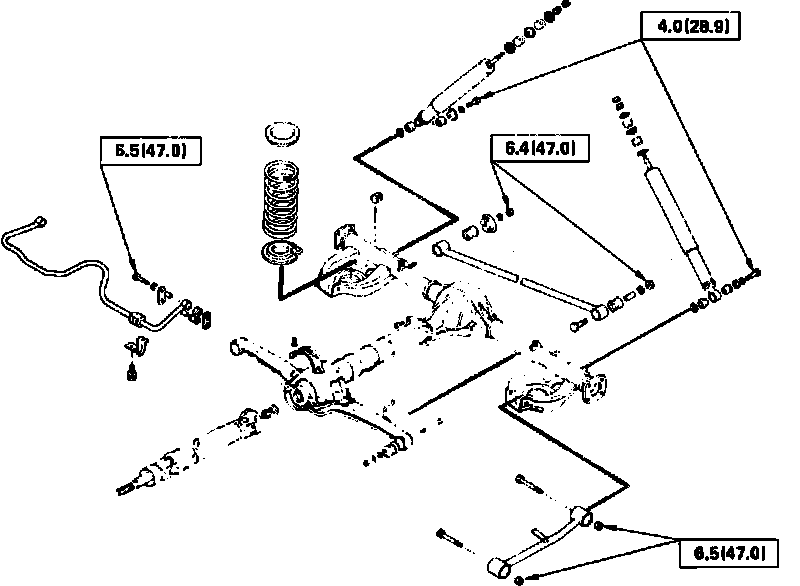

Fig. 5 Exploded view of rear suspension.:

1. Raise and support rear of vehicle.
2. Remove stabilizer bar to axle attaching bolts, Fig. 5.
3. Remove stabilizer bar to underbody attaching bolts.
4. Remove stabilizer bar from vehicle.
5. Reverse procedure to install.
