Isuzu
>>
1989
>>
Impulse L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Temperature Gauge
>>
With Analog Meter
With Analog Meter

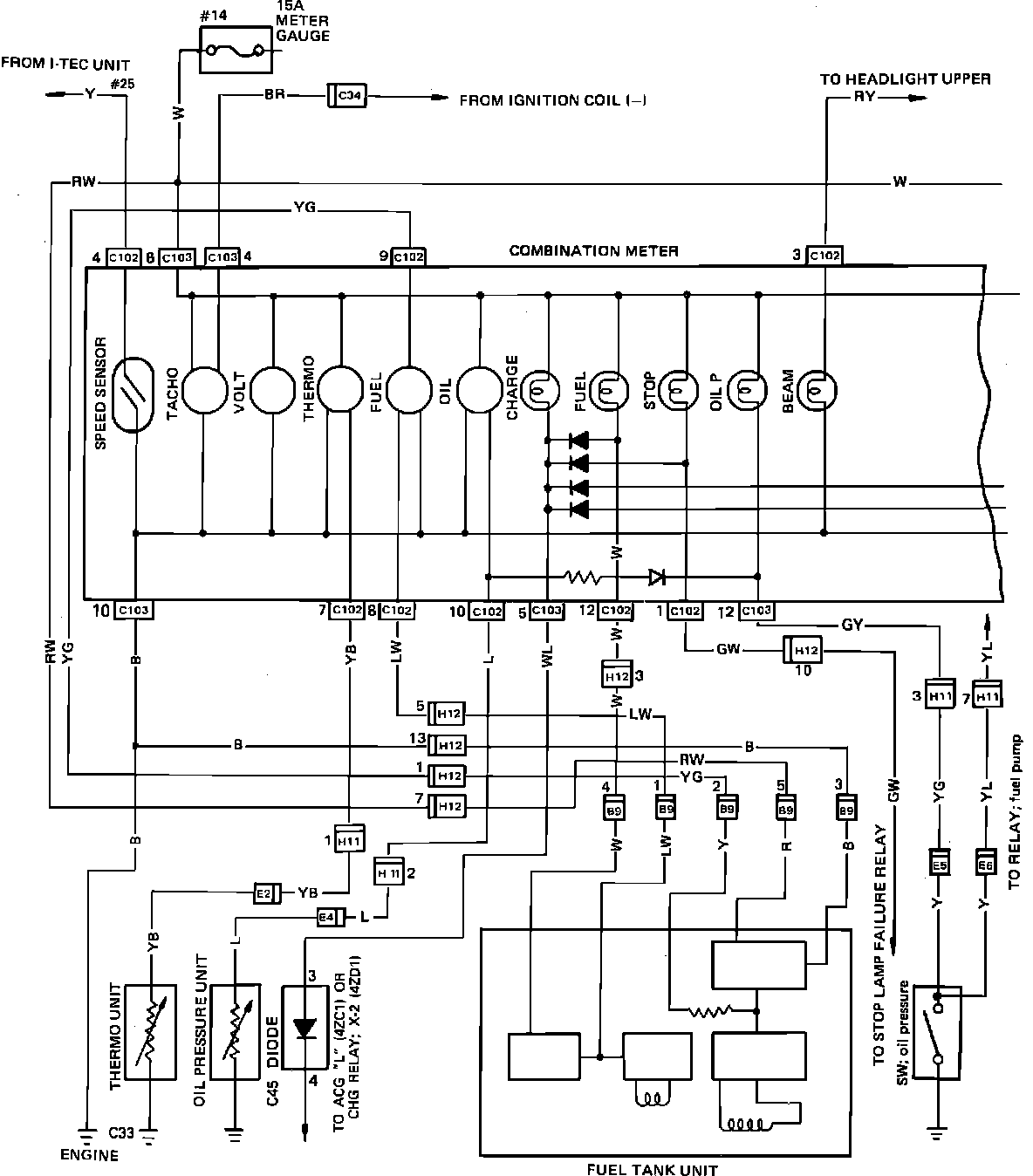

Combination Meter Wiring Circuit. Analog Meter:

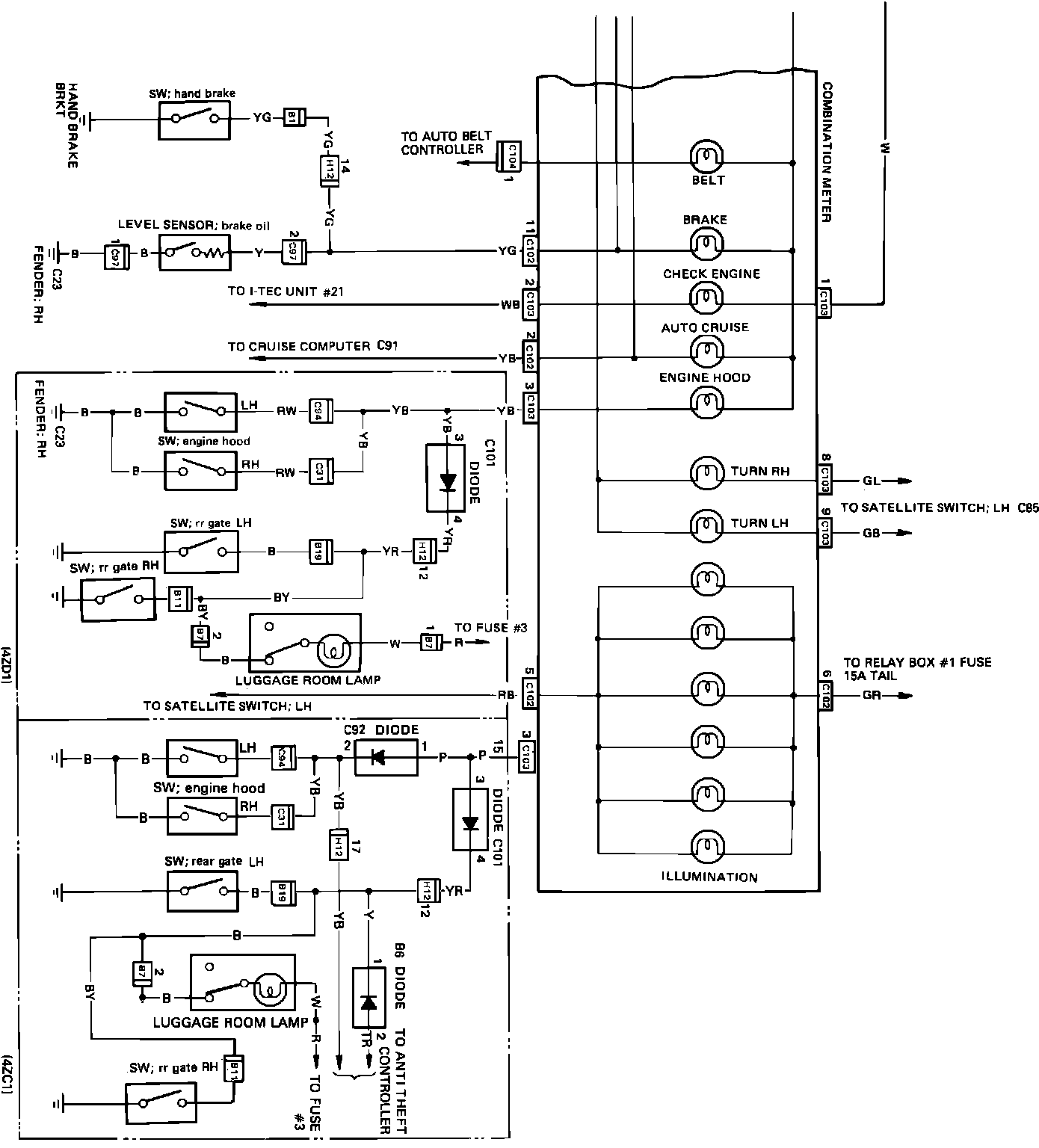

Combination Meter. Analog:
