Isuzu
>>
1989
>>
Impulse L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Turn Signals
Turn Signals

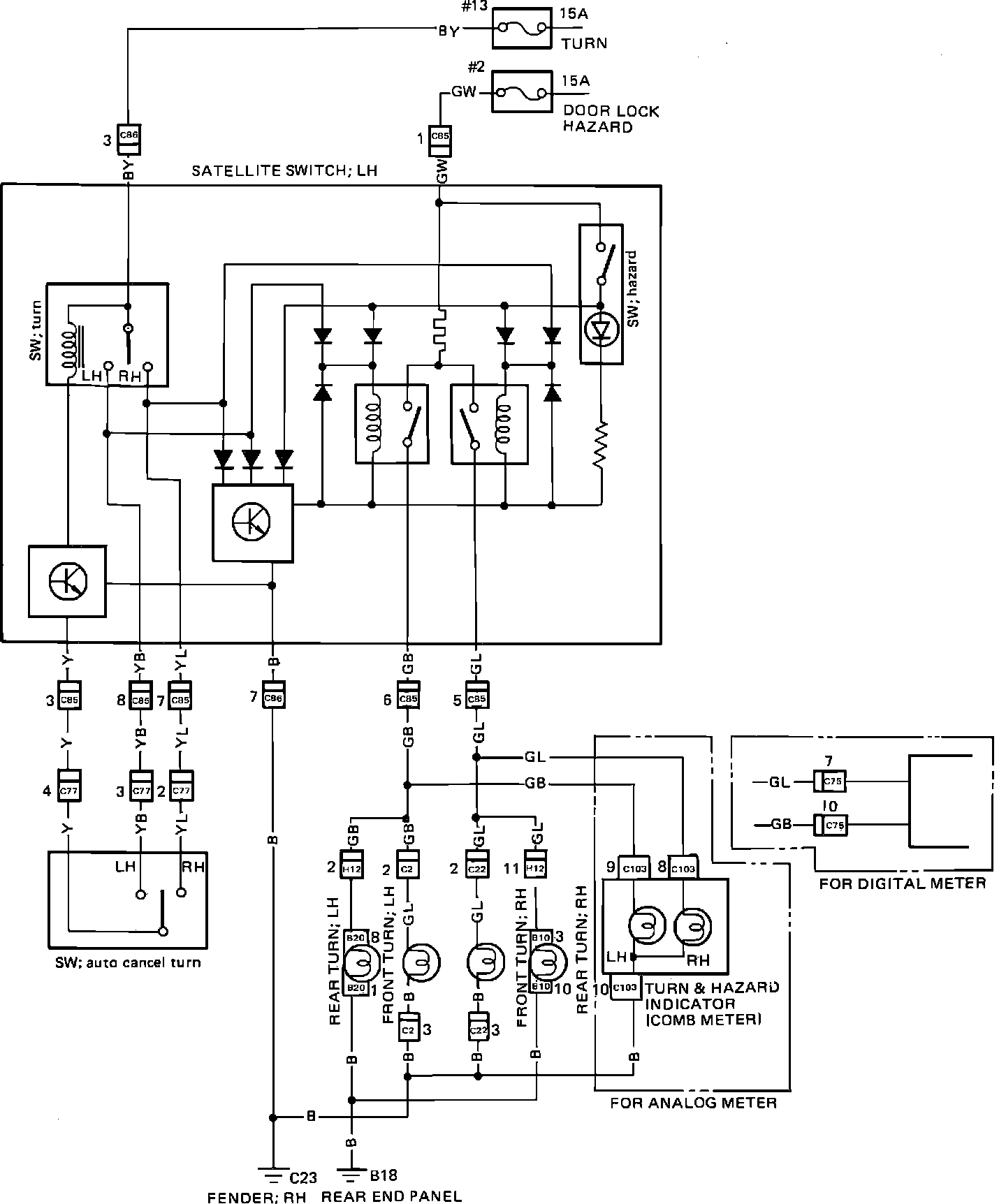

Hazard Warning Wiring Circuit:
