Home
>>
Isuzu
>>
1989
>>
Impulse L4-2.3L (4ZD1)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Analog Meter
Analog Meter

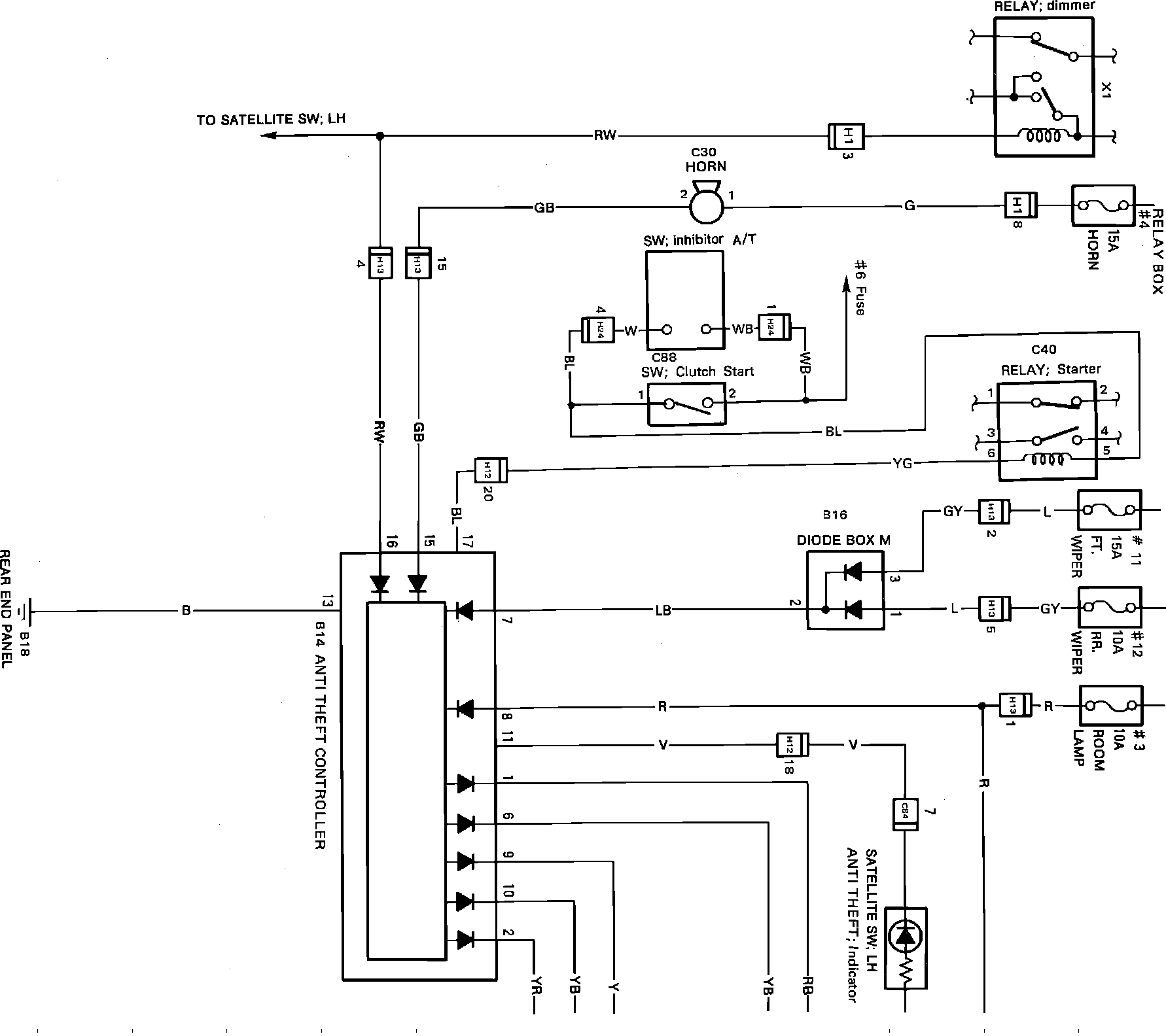

Anti-Theft Control Wiring:

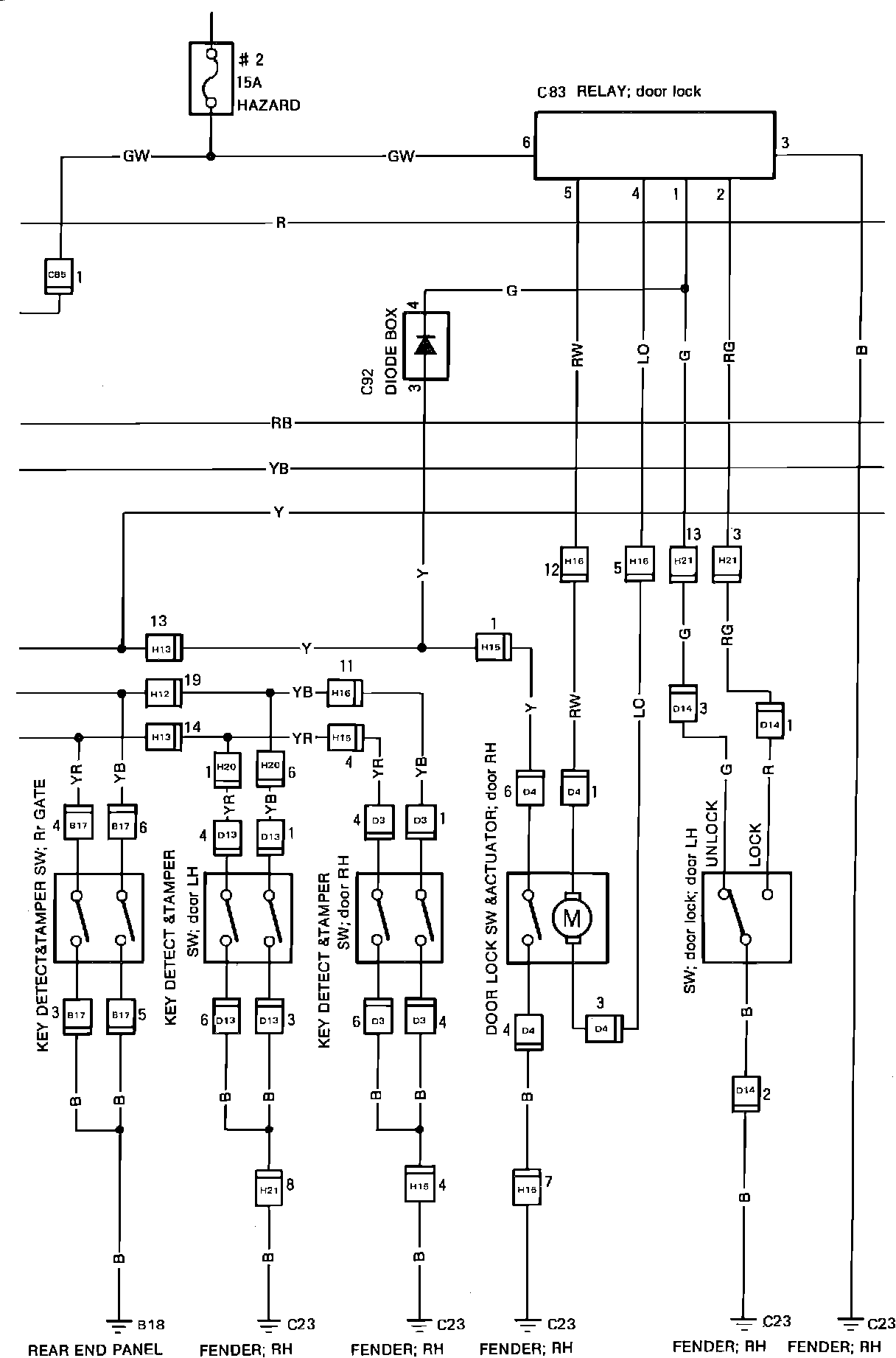

Anti-Theft Control Wiring:

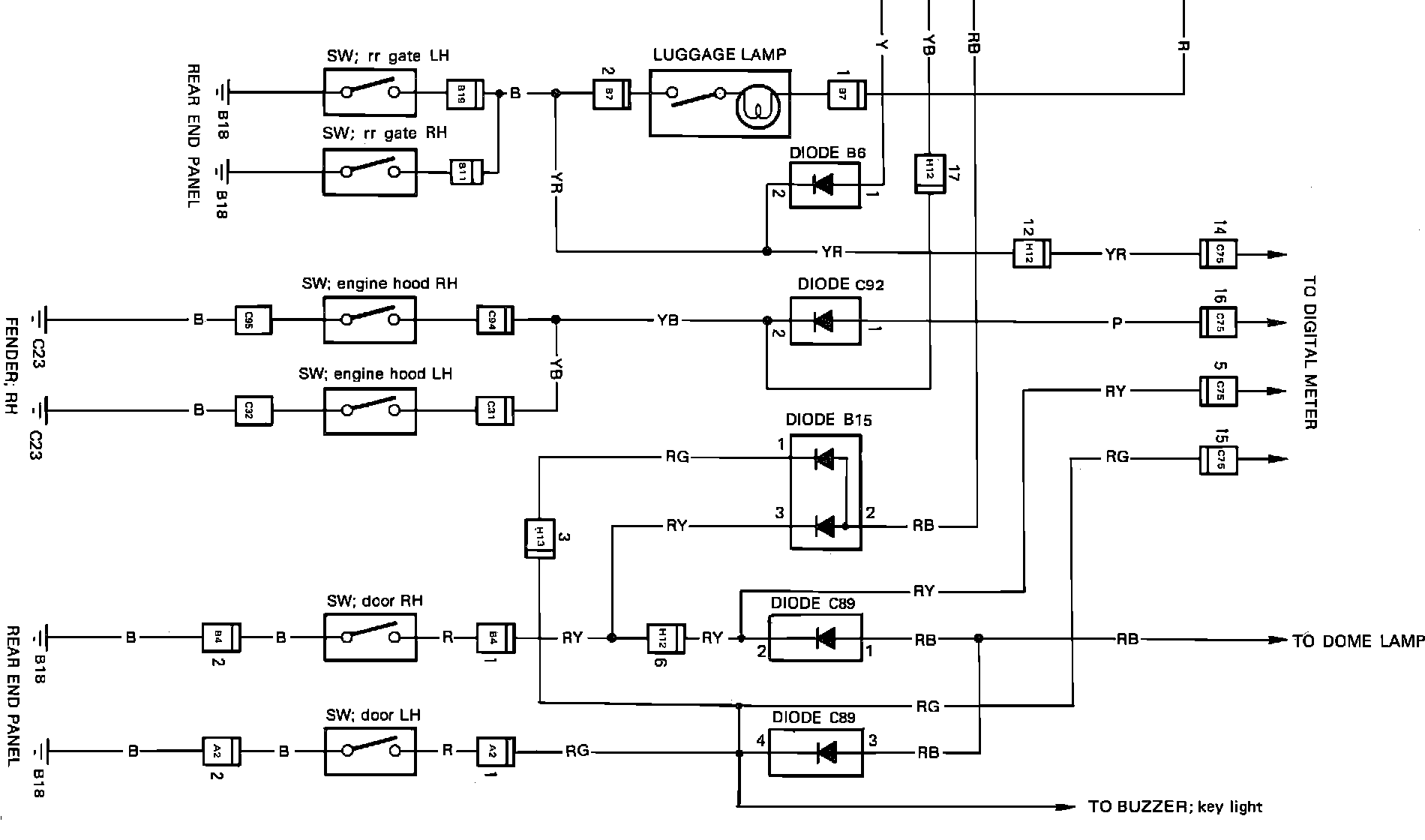

Anti-Theft Control Wiring. Digital Meter:
