Front Wiper System
Front Wiper System

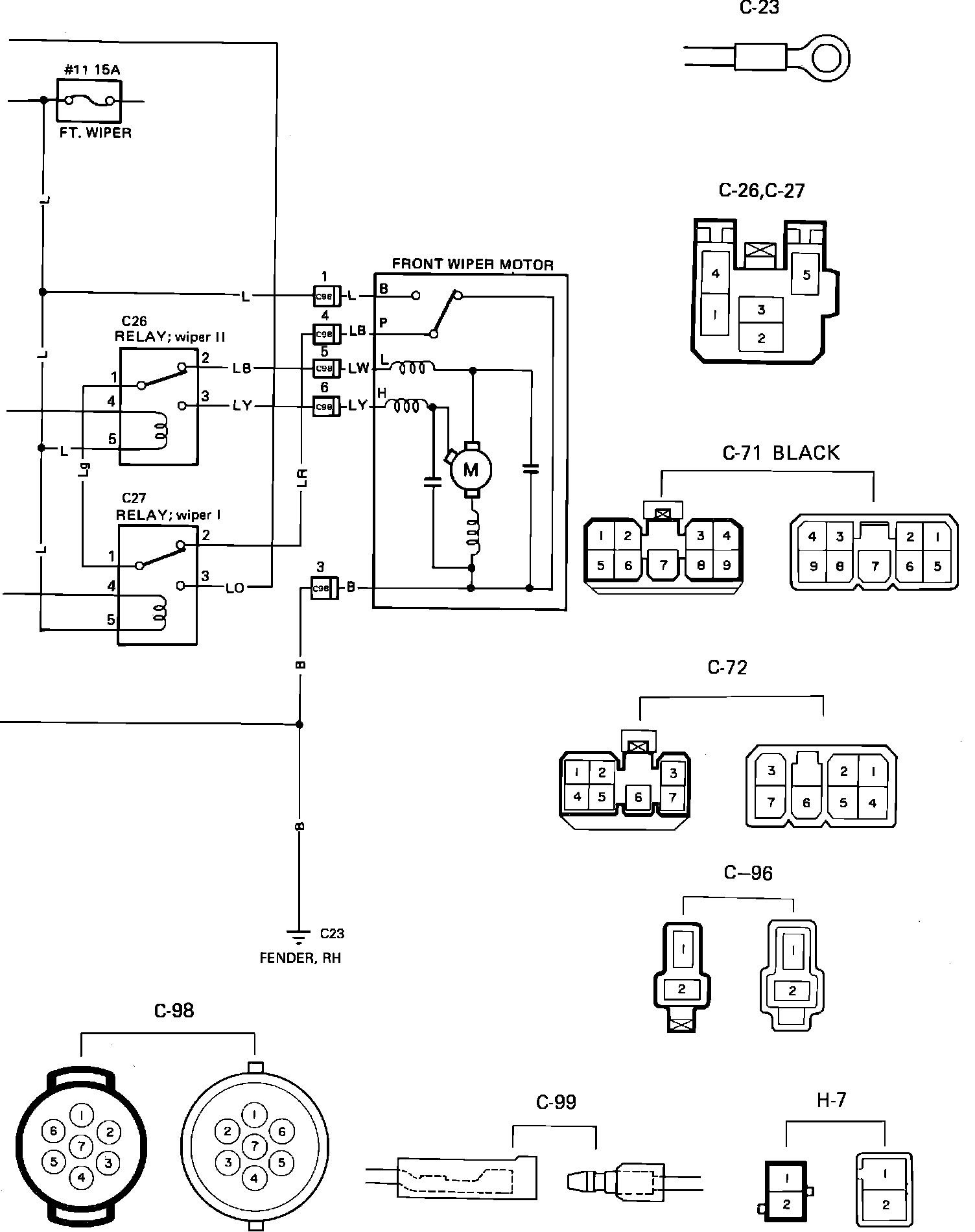

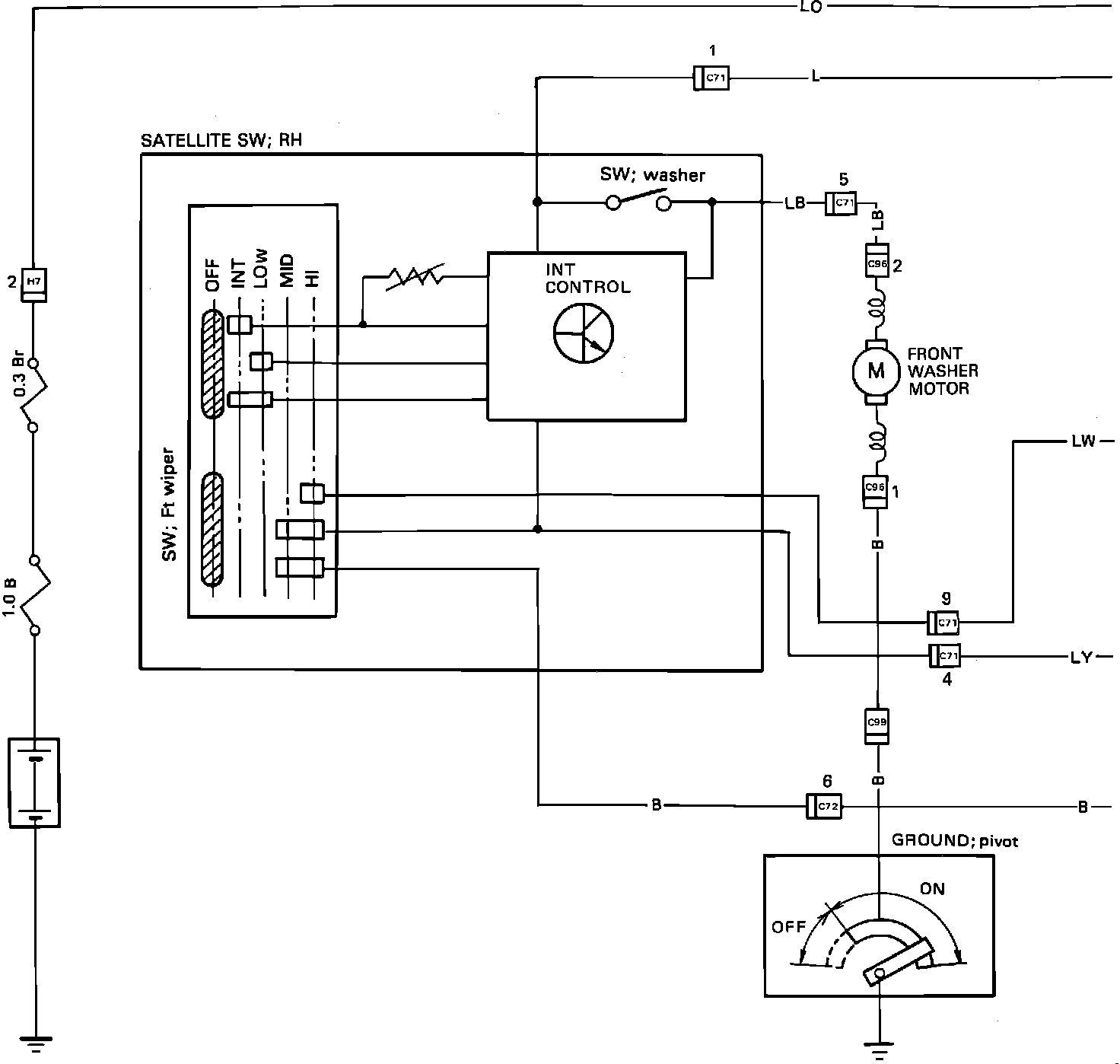

Front Wiper/Washer Wiring Circuit:
Front Wiper/Washer Wiring Circuit:
