Exhaust Manifold: Service and Repair

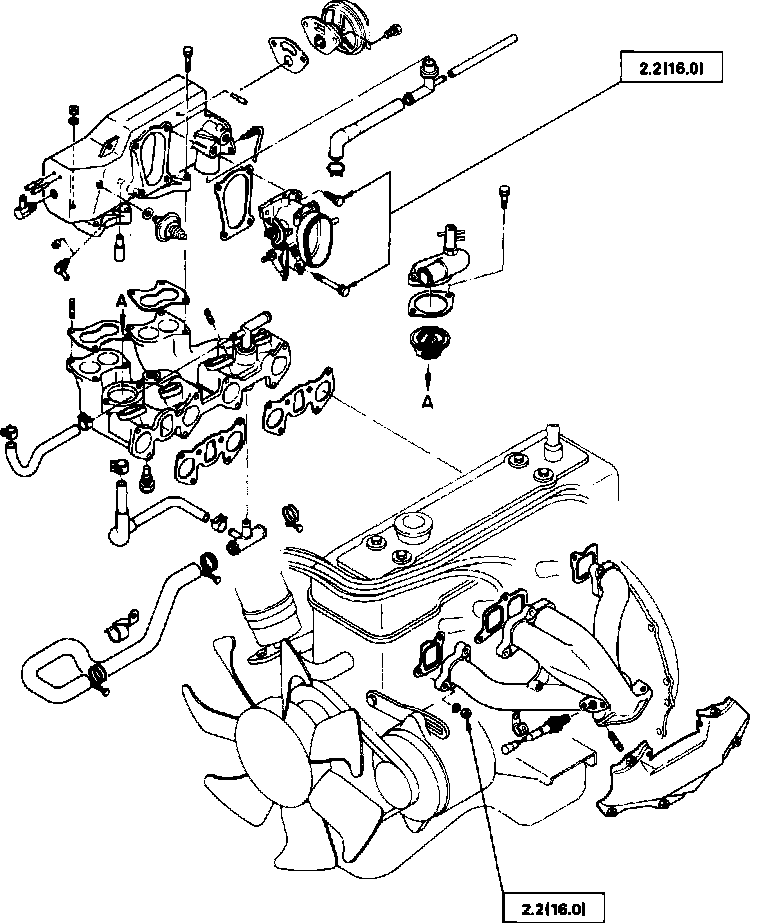

Fig. 2 Replacement of intake & exhaust manifolds. Non-turbocharged (Part 1 of 2):

Fig. 2 Replacement of intake & exhaust manifolds. Non-turbocharged (Part 2 of 2):

Refer to Fig. 2, for removal and installation of exhaust manifold.
