Impulse L4-1994cc 2.0L (4ZC1-T)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Pump
Fuel Pump

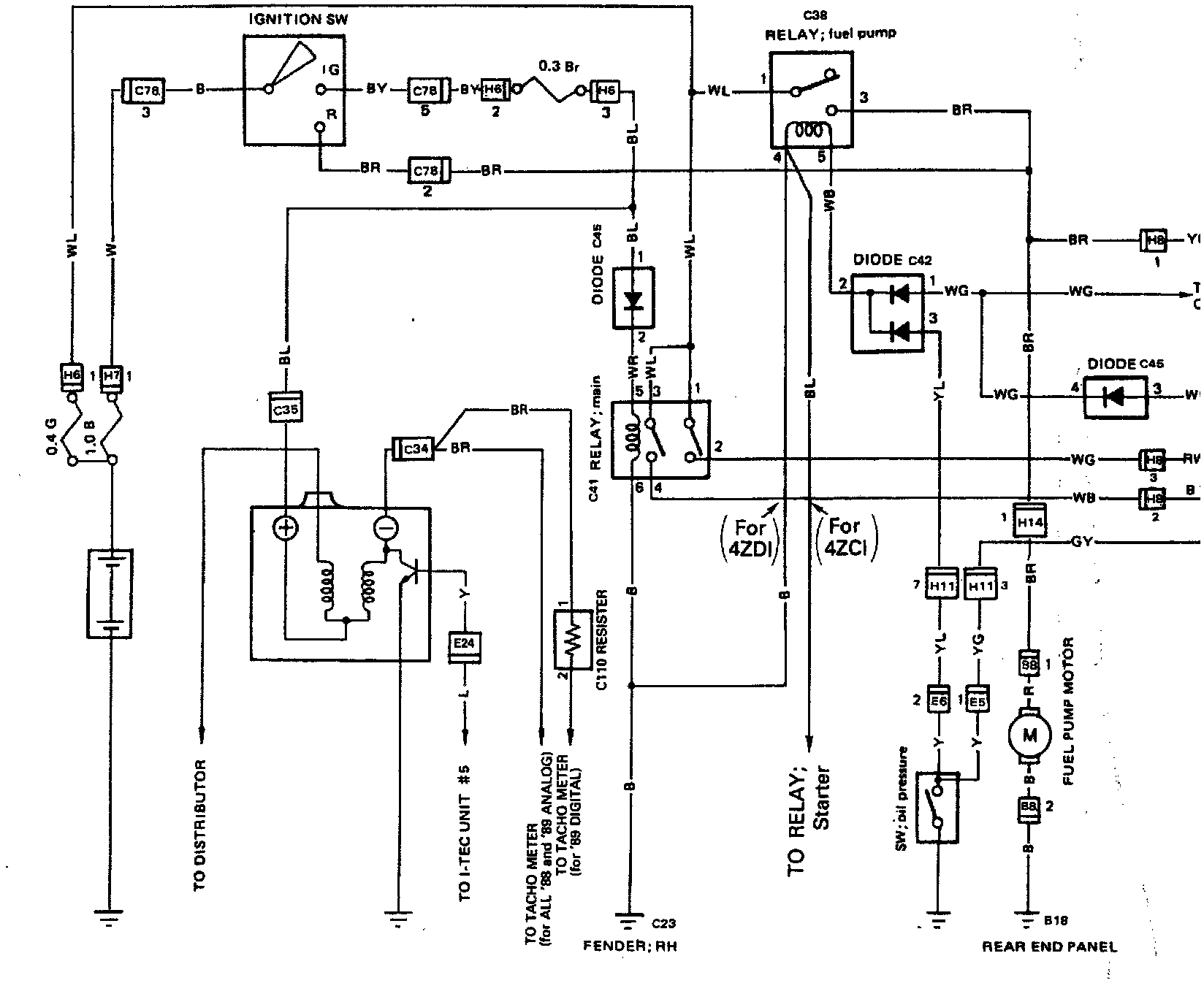

S�Fuel Pump Wiring Diagram:
