DTC 61



Code 61 indicates a short or open circuit or broken hot wire.
Code 62 indicates a broken cold wire.

DIAGNOSTIC CHART

Part 1

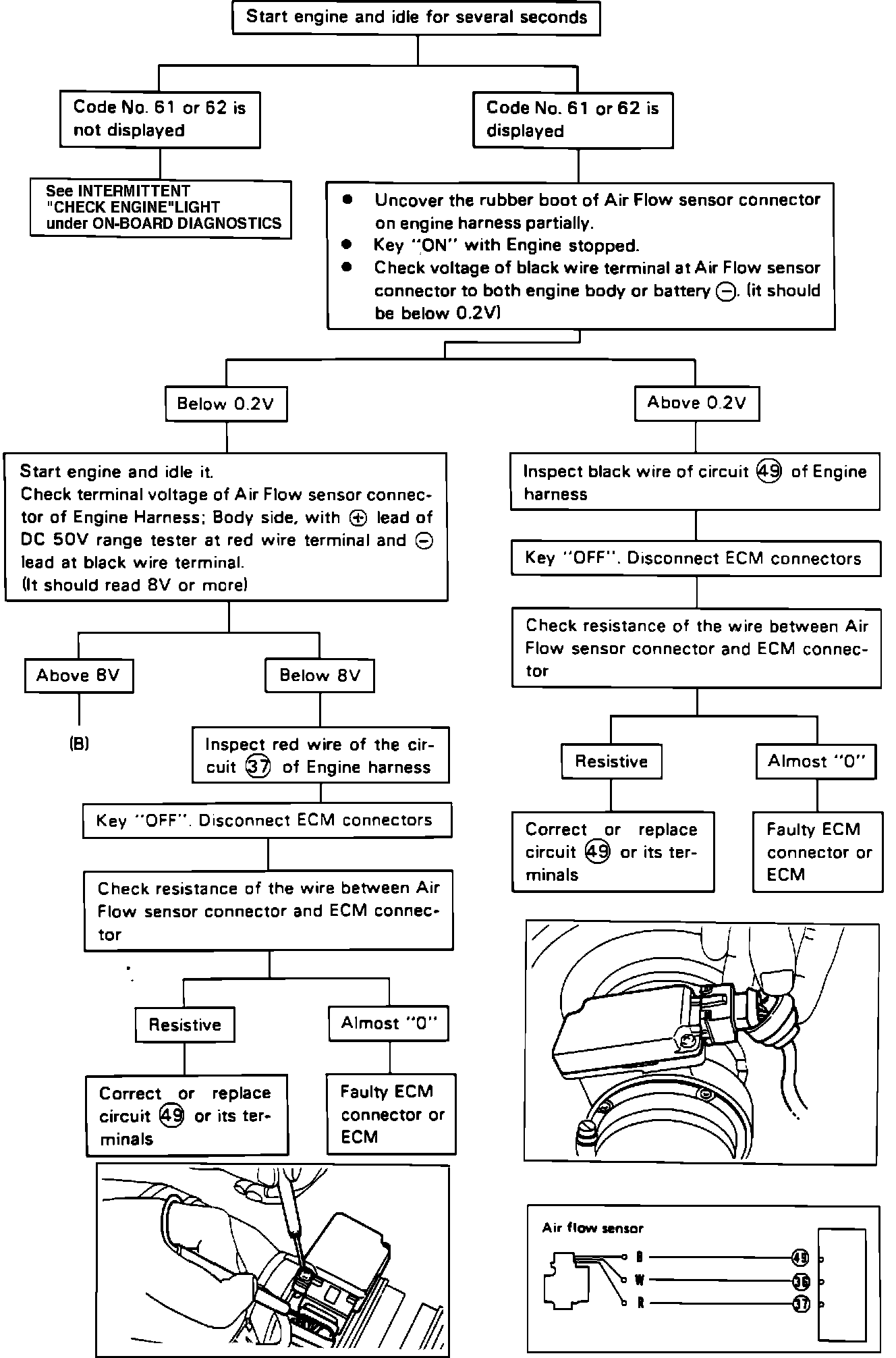

Codes 61 & 62 Diagnostic Chart (Part 1):






Part 2

Codes 61 & 62 Diagnostic Chart (Part 2):
