Isuzu
>>
1989
>>
Impulse L4-1994cc 2.0L (4ZC1-T)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
DTC 52
DTC 52

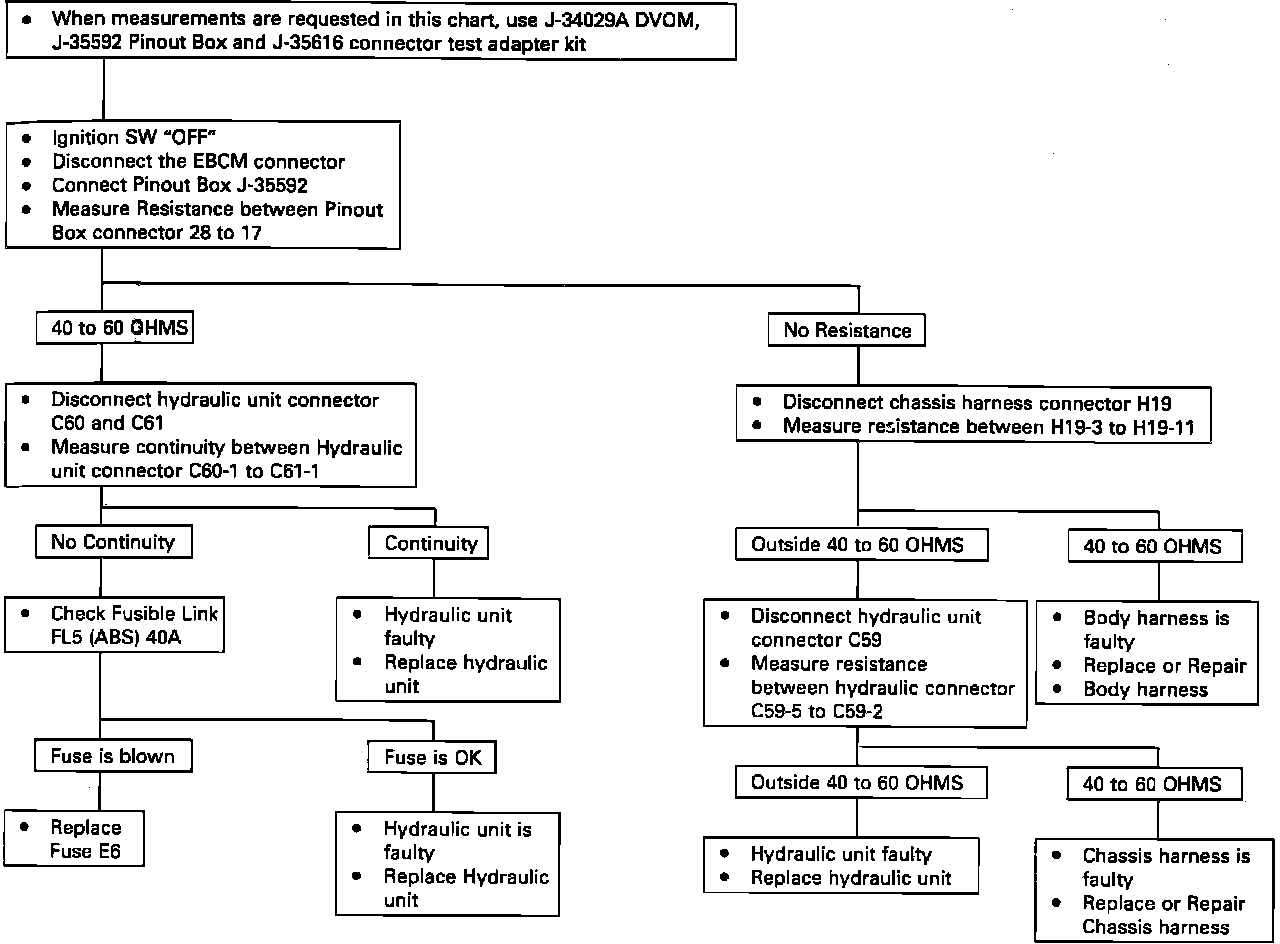

Fig. 19 Code 52, pump motor & motor relay circuit.:
