A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
DTC 42
DTC 42

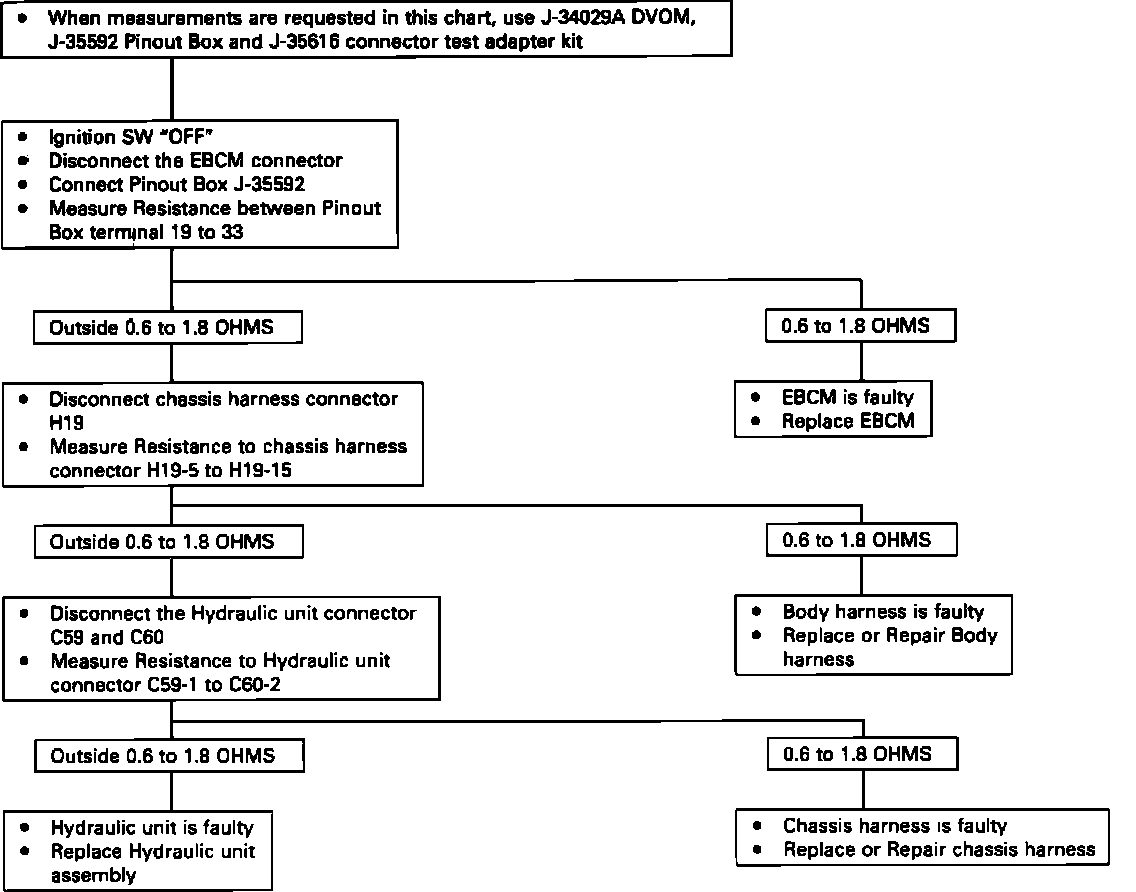

Fig. 16 Code 42, right front wheel solenoid valve circuit.:
