A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
DTC 41
DTC 41

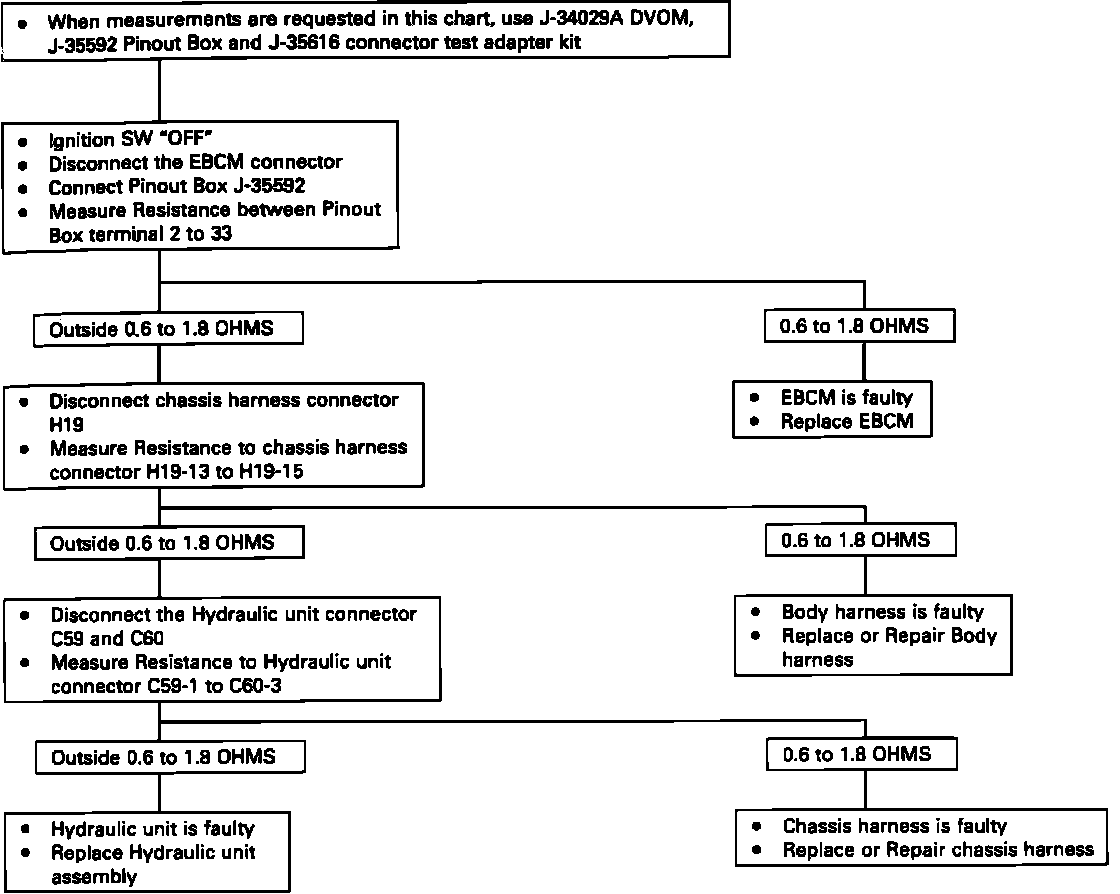

Fig. 15 Code 41, left front wheel solenoid valve circuit.:
