A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
Chart B3
Chart B3

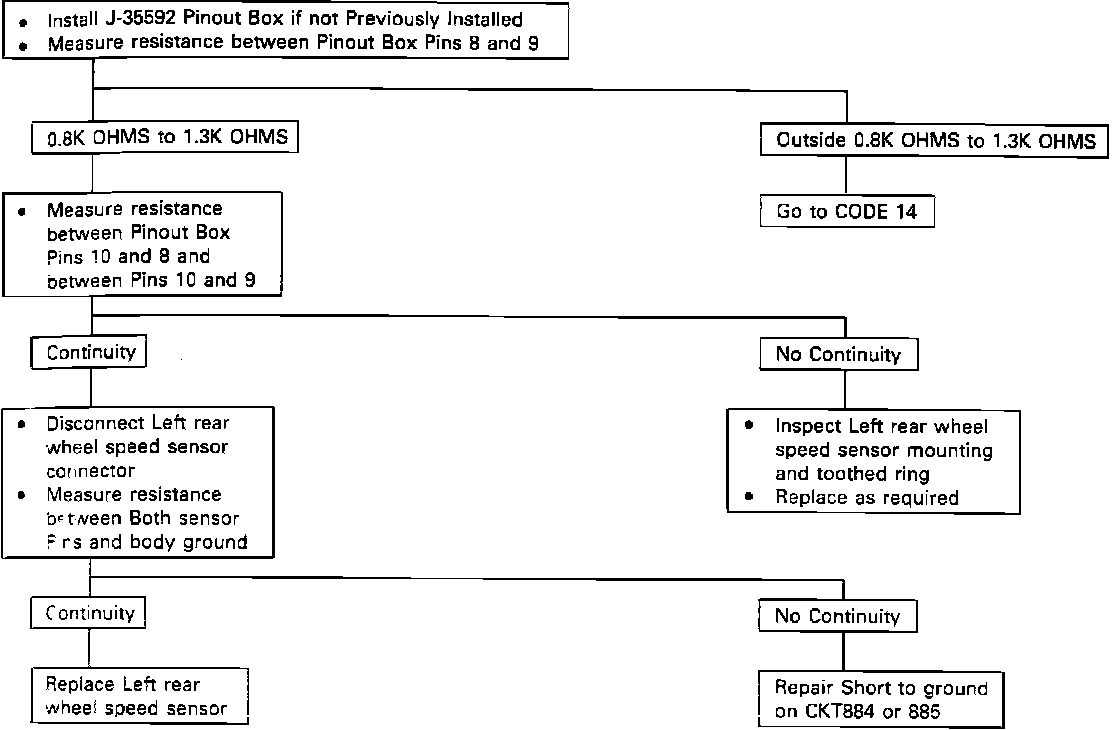

Fig. 26 Chart B3, left rear speed sensor output.:
