A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brake System
>>
Chart A
Chart A

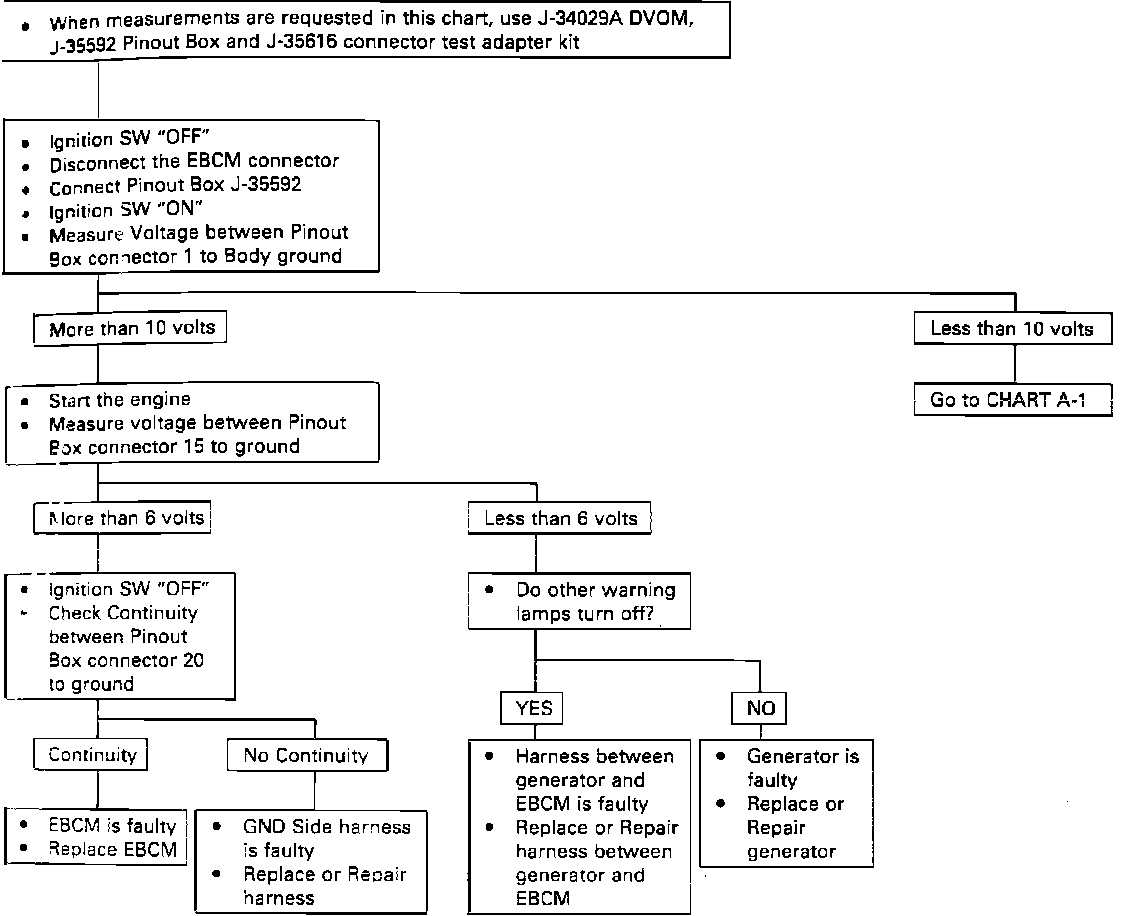

Fig. 21 Chart A, Anti-Lock lamp ``On'' & no ABS codes present.:
