Home
>>
Isuzu
>>
1989
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
With Fuel Injection
>>

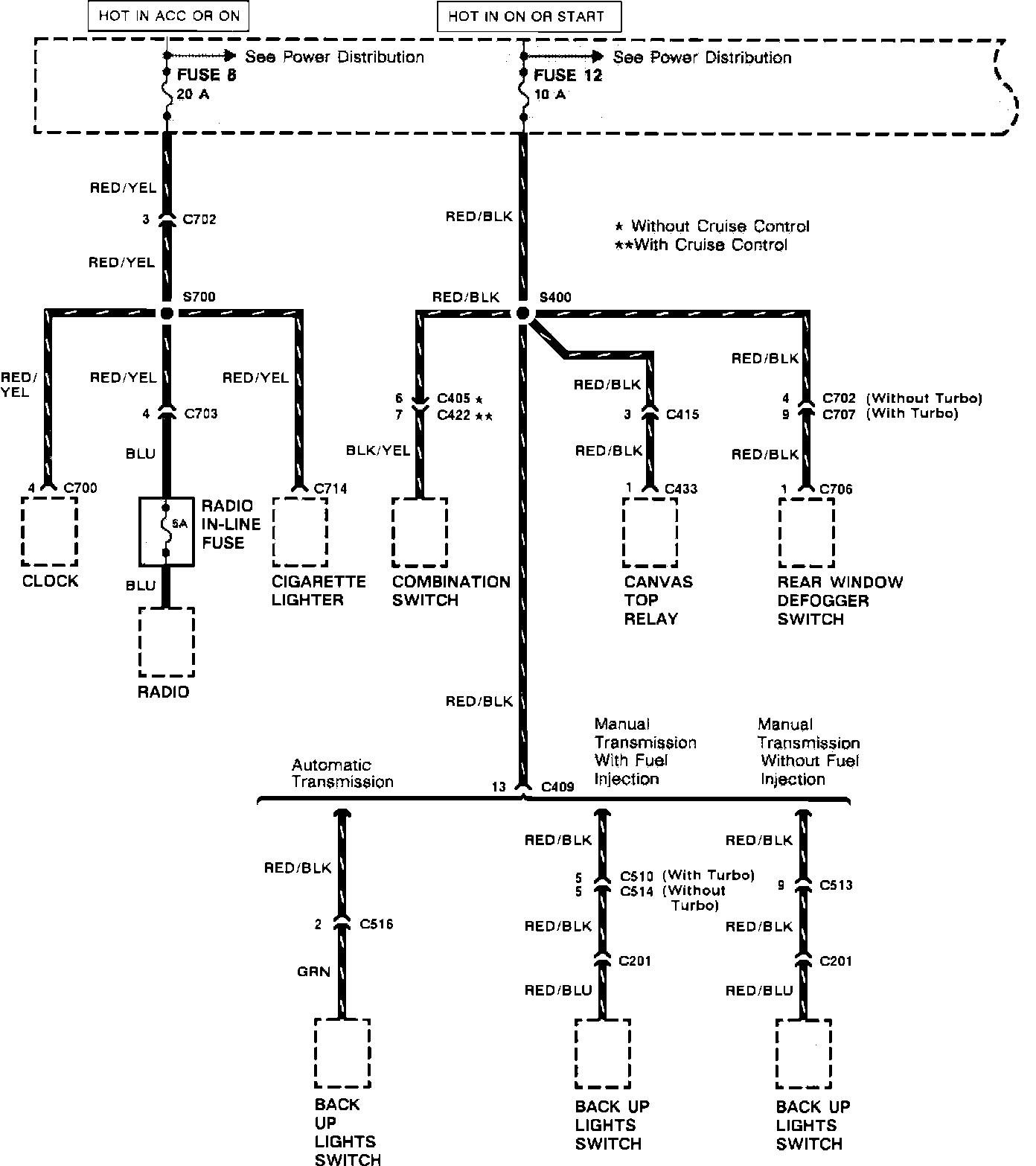

Fuse Blocks 8 and 12
Fuse Blocks 8 and 12
Fuse Blocks 8 & 12:
