Home
>>
Isuzu
>>
1989
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
License Plate Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

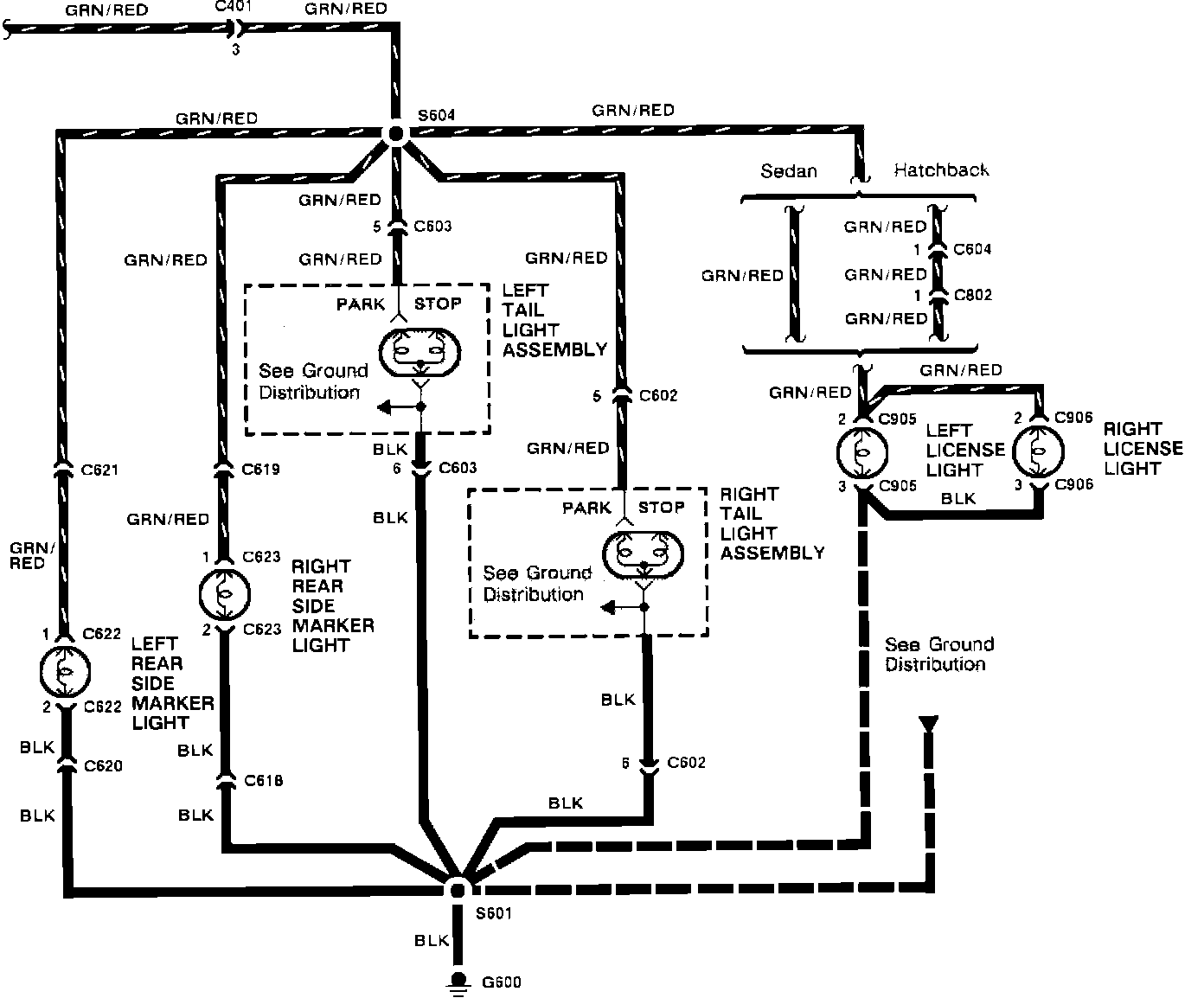

Parking, Side Marker & License Lights:
Parking, Side Marker & License Lights:
