Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1989
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Front
>>
With Intermittent
With Intermittent

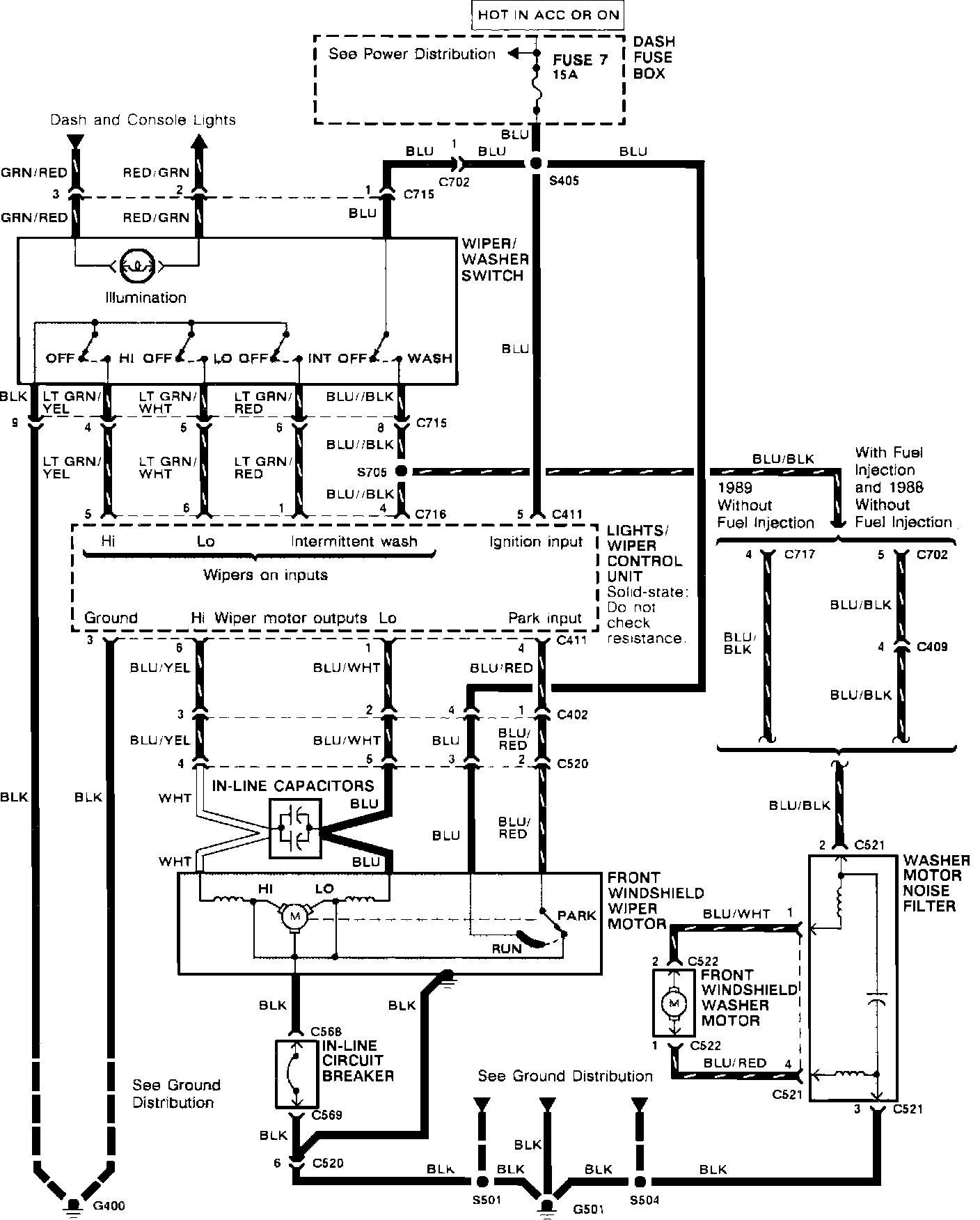

Windshield Wiper/washer. Front:
