Isuzu
>>
1989
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

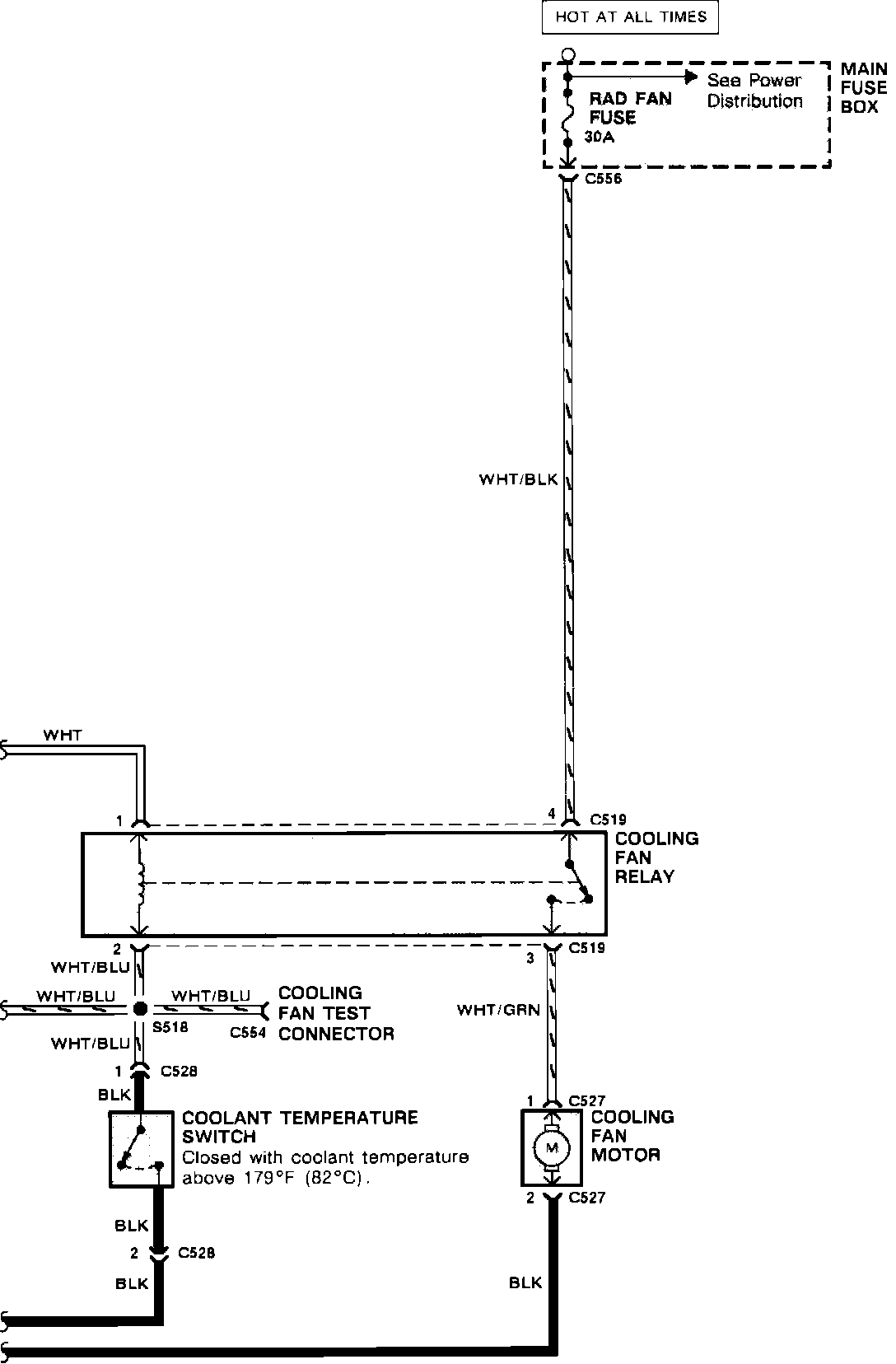

Radiator Cooling Fan Motor
>>
With Fuel Injection
>>

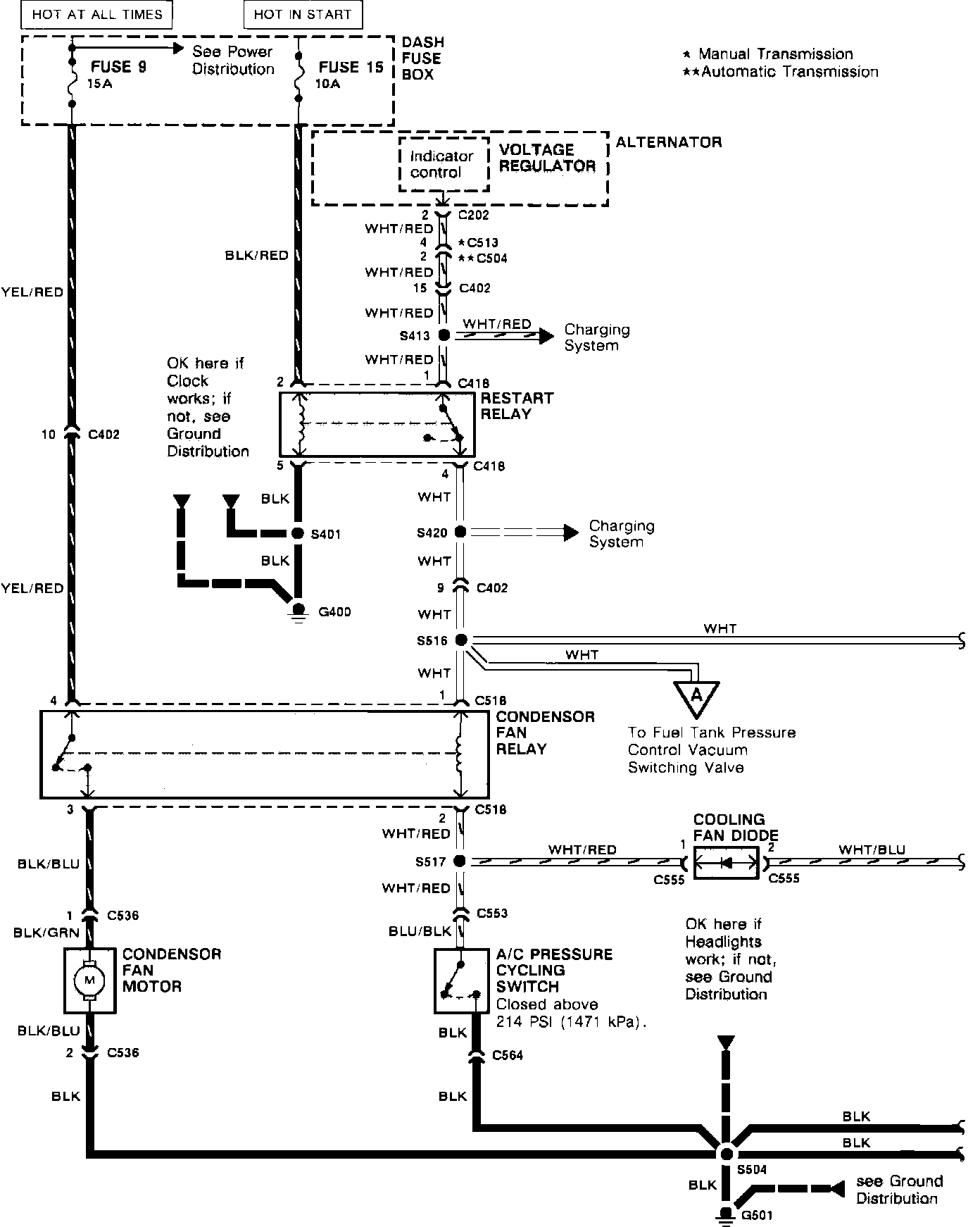

With Turbo
With Turbo
Cooling Fan:
Cooling Fan:
