Home
>>
Isuzu
>>
1989
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Warning/Indicators
>>
Indicators
Indicators

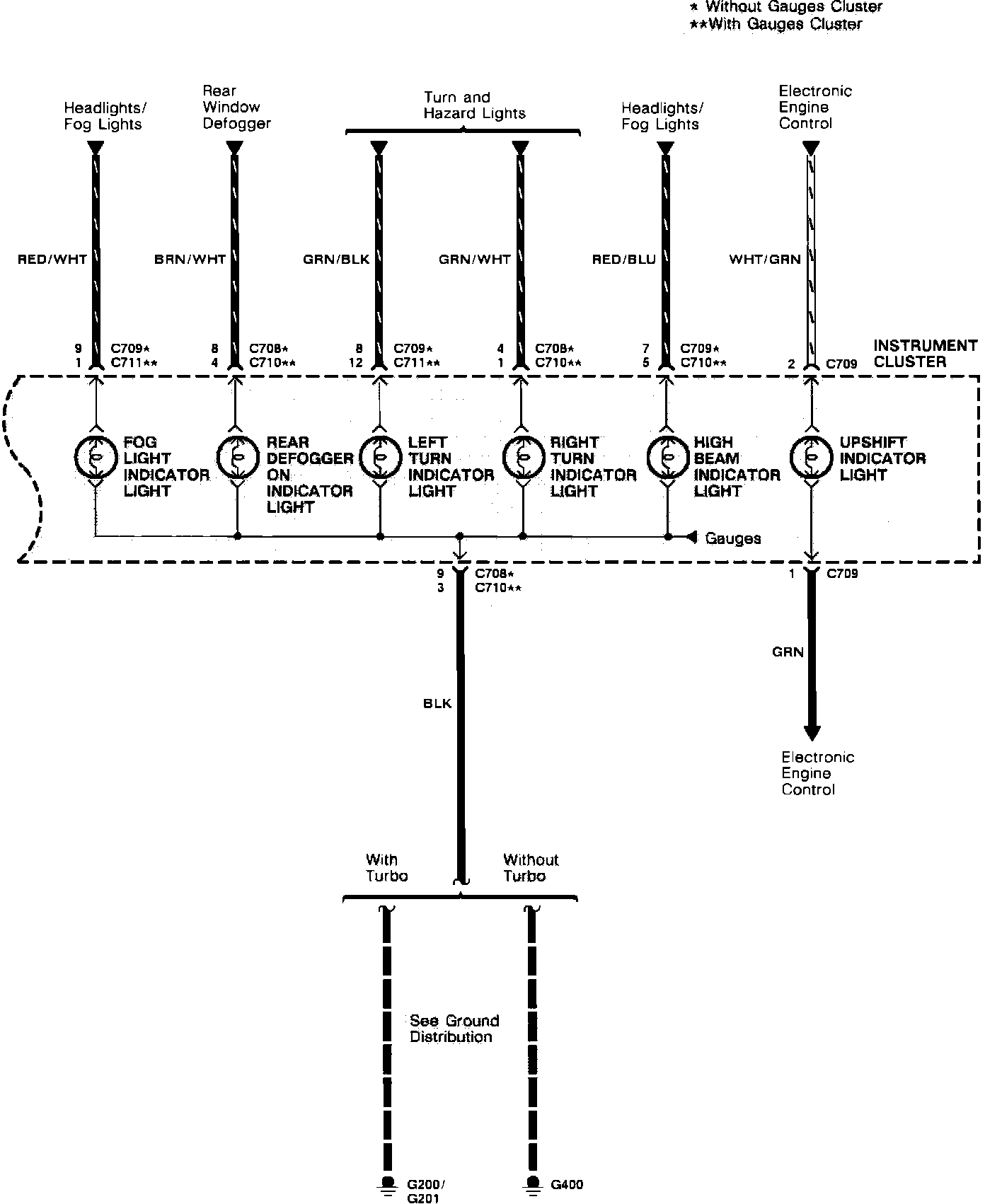

Indicator Lights:

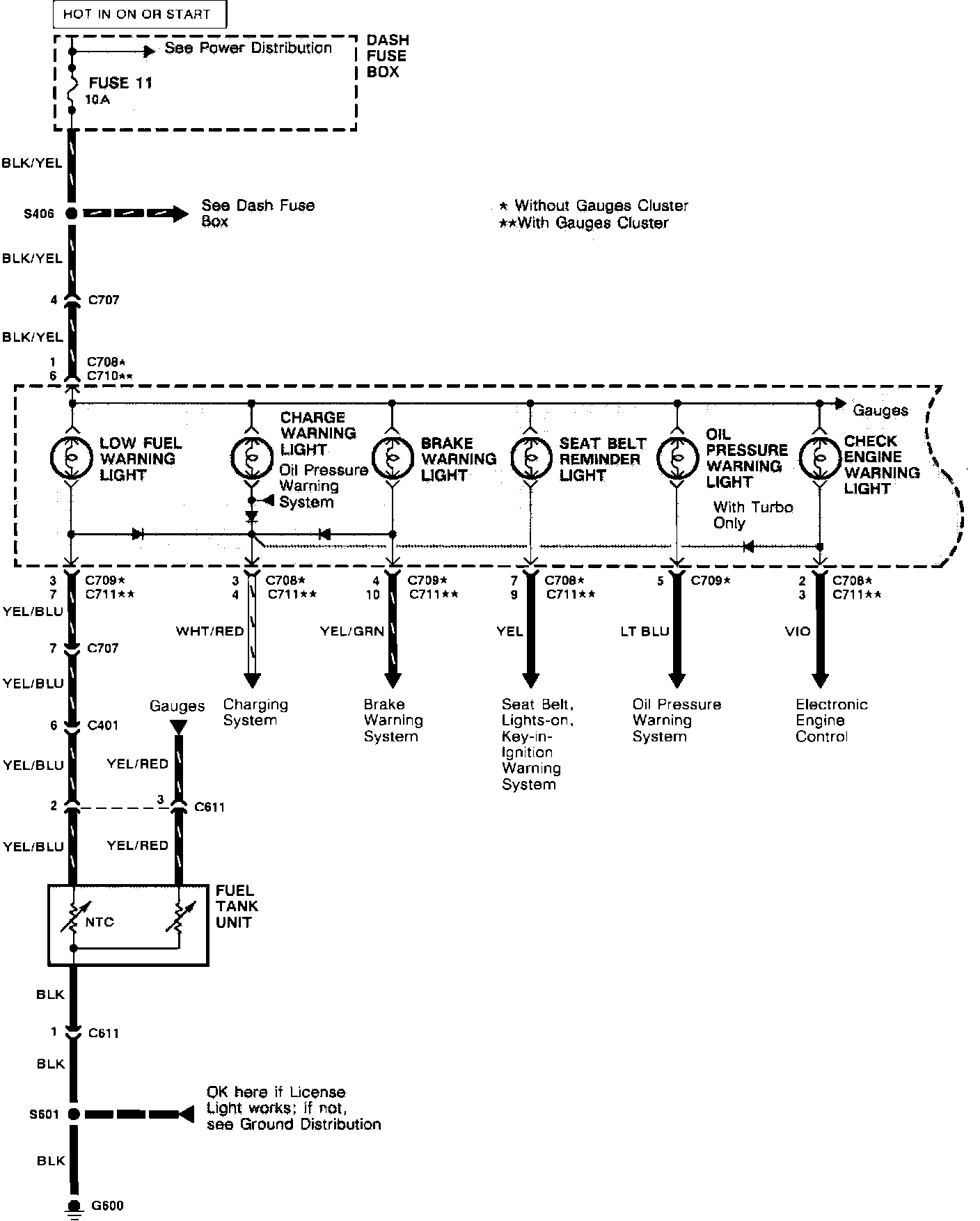

Indicator Lights:
