Sunroof - Rattle/Squeak Noise
88isuzu04BULLETIN NUMBER SB88-11-005 (REVISED)
ISSUE DATE June 14, 1988
GROUP BODY
1988 IMPULSE (JR) SUNROOF NOISE (Supercedes SB88-11-005 issued May 24, 1988)
VEHICLES AFFECTED
1988 Impulse (JR) models.
SERVICE INFORMATION
A rattle coming from the sunroof area may be caused by the sunroof clips rubbing against the sunshade clips, or against the sunshade finisher. A squeak may be caused by the headliner rubbing against the sunroof frame at the front and rear sides of the sunroof.
To eliminate clip rattle, install a wavewasher to each sunshade lock and install a new flocked sunshade finisher to the sunshade. To eliminate the squeak, install tape between the headliner and the sunroof frame. These procedures are described in this Service Bulletin.

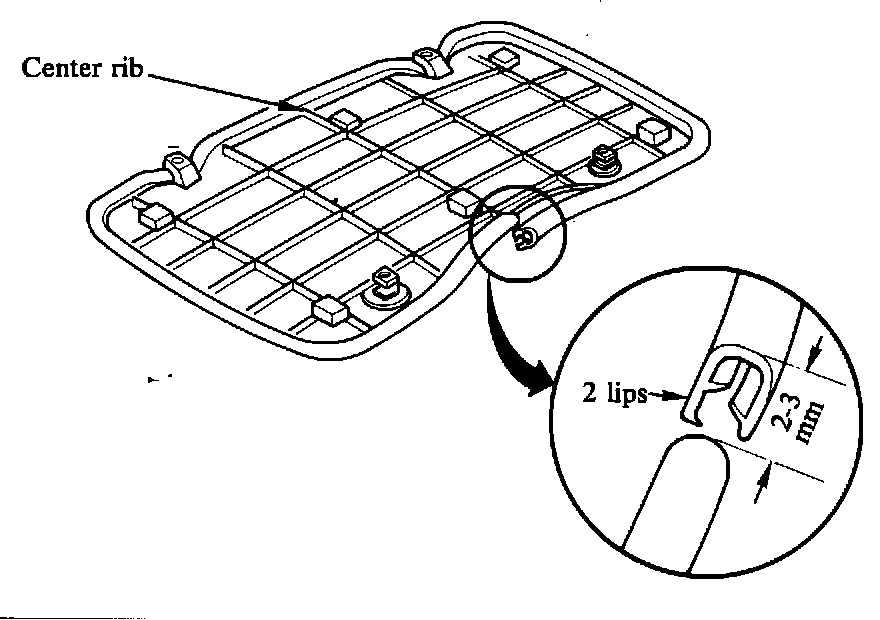

FIGURE 1:
SERVICE PROCEDURE
1. Remove sunroof from vehicle.
2. Remove sunshade from sunroof
3. Install new sunshade finisher as follows:
a. Remove old sunshade finisher.
b. Cut off unflocked end of new finisher, using care not to disfigure the inner wire.
c. Align. end of finisher with the sunshade center rib. Be sure the side of the finisher with 2 lips faces the back of the sunshade. See Figure 1.
d. Install finisher, pressing firmly into place around the sunshade. Be sure there is no slackness.
e. Cut off end of finisher, if necessary, to leave 2-3 mm excess length. Use care not to disfigure the inner wire.
f. Carefully align ends of finisher closely together for a secure fit
g. Reinstall sunshade to sunroof.

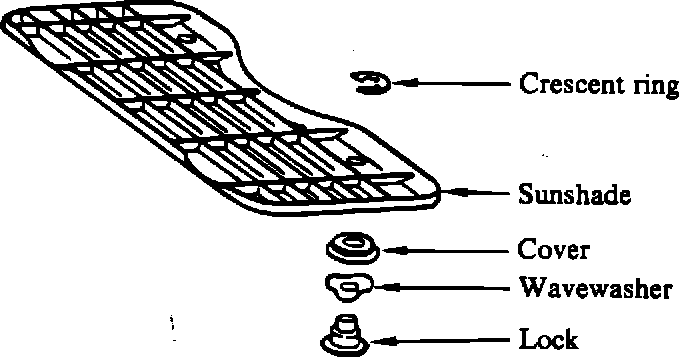

FIGURE 2:
4. Install a wavewasher to each sunshade lock as follows:
a. Turn and open lock.
b. Remove crescent ring.
c. Remove lock cover.
d. Install wavewasher to lock (Figure 2).
e. Reinstall lock cover.
f. Reinstall crescent ring.

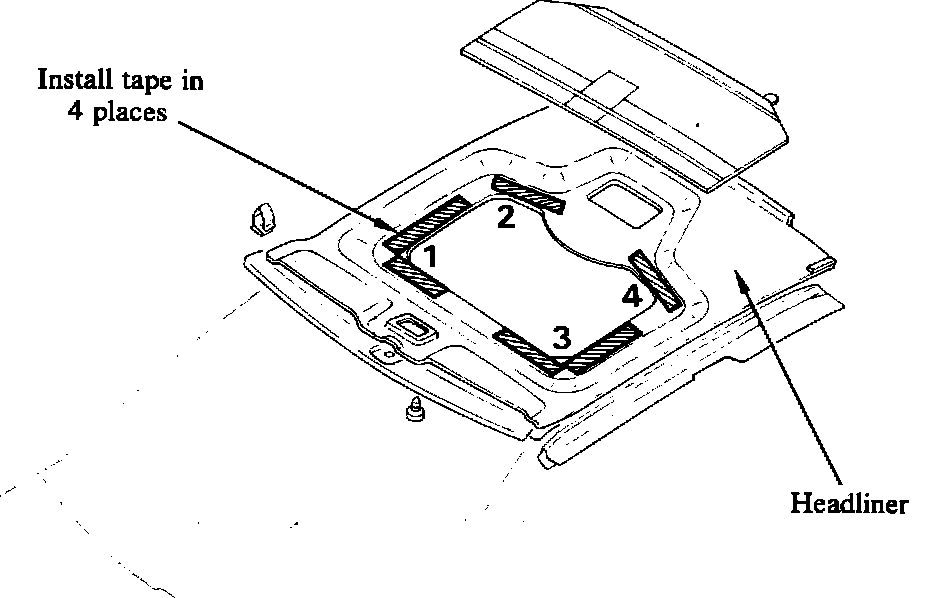

FIGURE 3:
5. Install tape as follows. Refer to Figure 3.
a. Remove weatherstrip from front and rear of sunroof opening.
b. Remove sunvisors.
c. Remove rear view mirror.
d. Remove assist grips.
e. Remove dome and spot lamps.
f. Remove headliner.
g. Install approximately 4-inch lengths of tape along front and rear edges of sunroof frame in 4 places. Extend tape about 4 inches beyond sunroof opening at each corner. At least 4 pieces of tape are required to properly cover each edge.
h. Install an approximately 9-inch length of tape along each side edge of sunroof frame in 2 places, extending tape halfway down sunroof opening on each side.
i. Reinstall headliner.
j. Reinstall sunvisors, rear view mirror, assist grips, dome and spot lamps.
k. Reinstall weatherstrip, ensuring it completely seals the headliner
l. Clean headliner of any dirt rubbed off from the weatherstrip.
m. Reinstall sunroof
PARTS INFORMATION
Part No. Description Quantity
8-94318-559-0 WAVEWASHER 2
8-94325-875-0 SUNSHADE FINISHER (GREY) 1
8-94325-876-0 SUNSHADE FINISHER (BLUE) 1
2-90075-800-0 TAPE A/R
FLAT RATE MANUAL UPDATE INFORMATION
OPERATION OPERATION TASK SPEC. TIME ADDITIONAL
NUMBER INSTR. INSTRUCTIONS
SUNROOF 112553 Repair 2.0 Includes: R&R Sunshade Finisher
Includes: Install Sunshade Lock
Includes: R&R Weatherstrip
Includes: 114308 R&R Headliner Assy
Includes: Apply tape
