Air Conditioning & Cooling Fan Wiring Circuit:

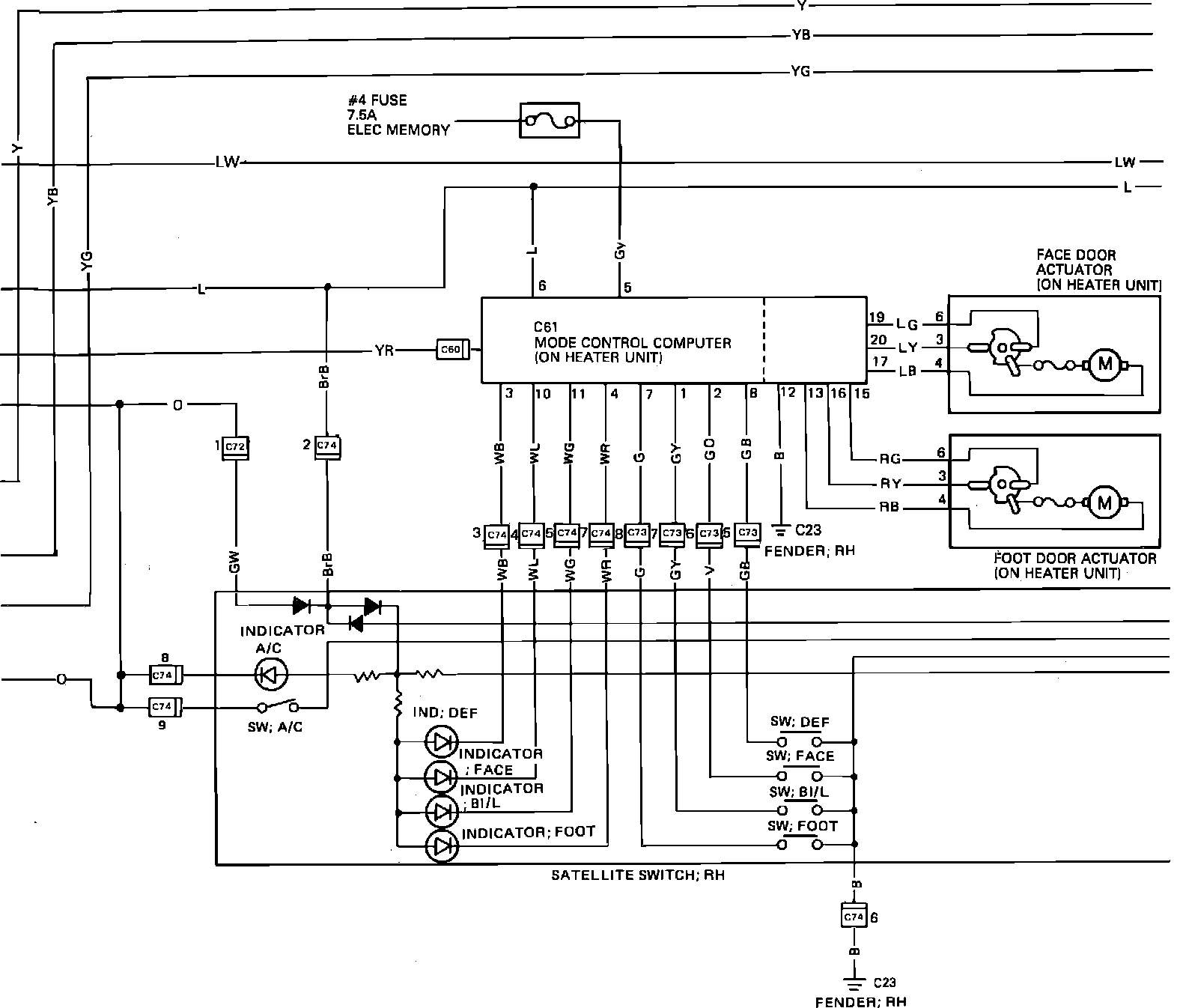

Air Conditioning & Cooling Fan Wiring Circuit:

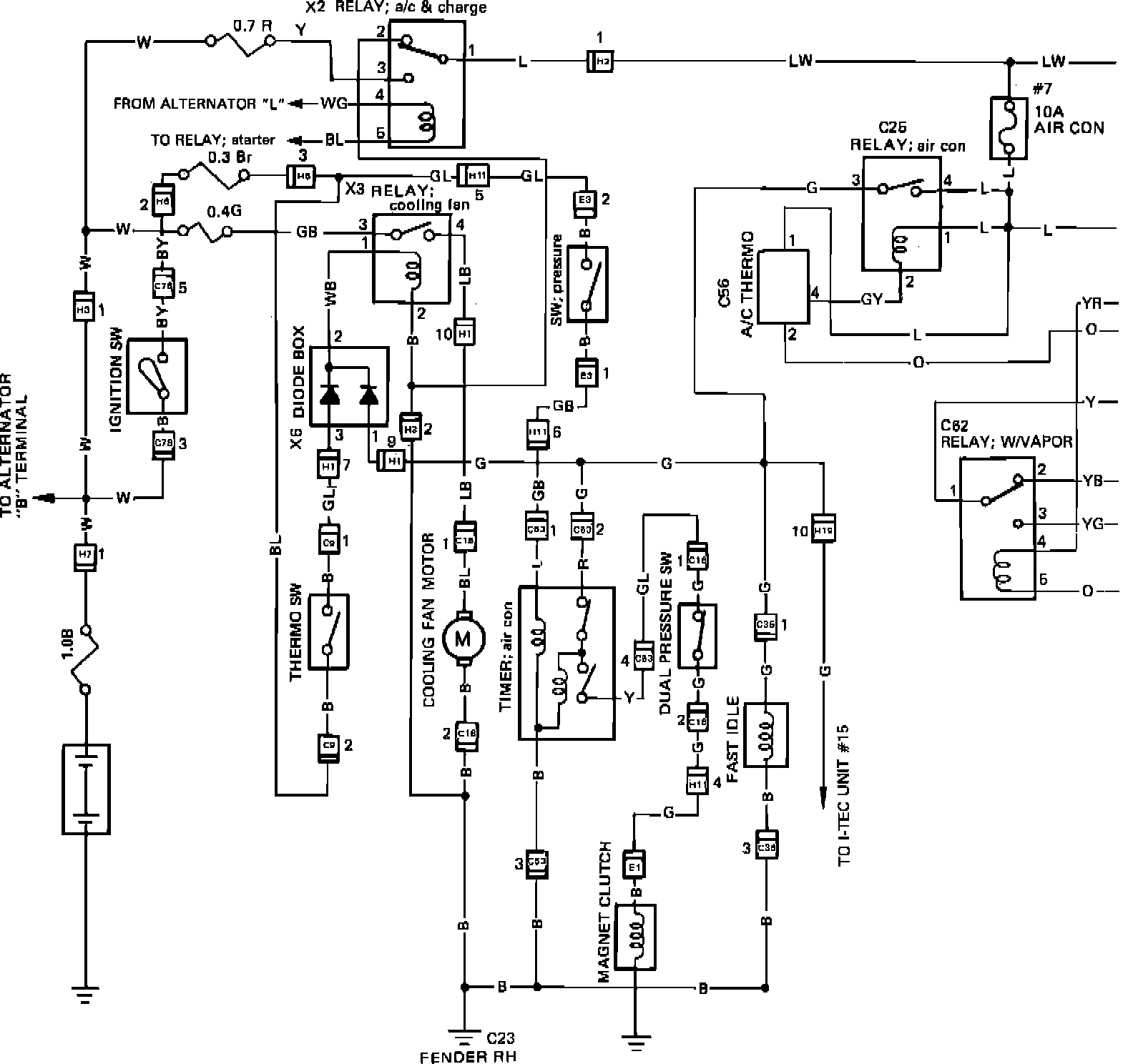

Air Conditioning & Cooling Fan Wiring Circuit:
Air Conditioning & Cooling Fan Wiring Circuit:
