Air Door Actuator / Motor: Testing and Inspection

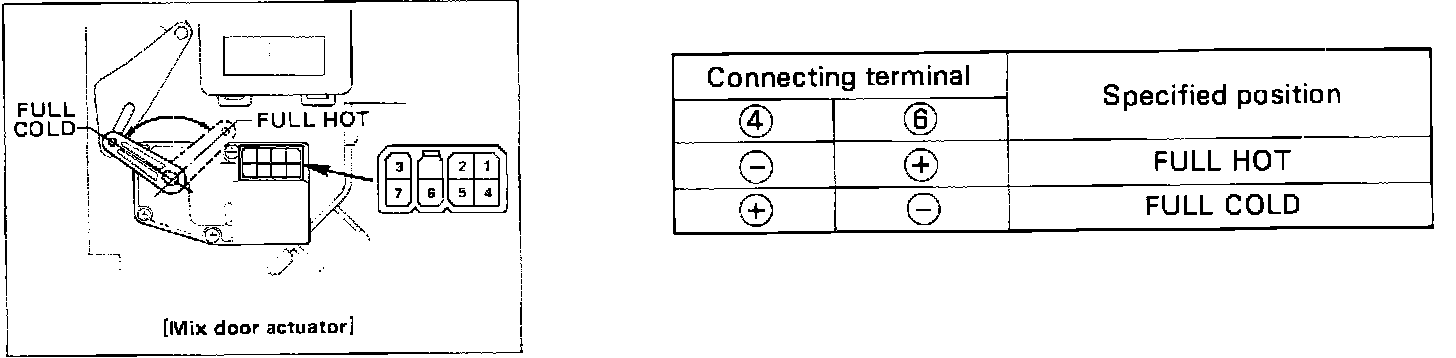

Mix Door ActuatorMix Door Actuator Testing:
1. Apply battery voltage across terminals as described on image chart.
2. Check that actuator moves smoothly and stops at specified position.
3. Replace if actuator does not perform as described.

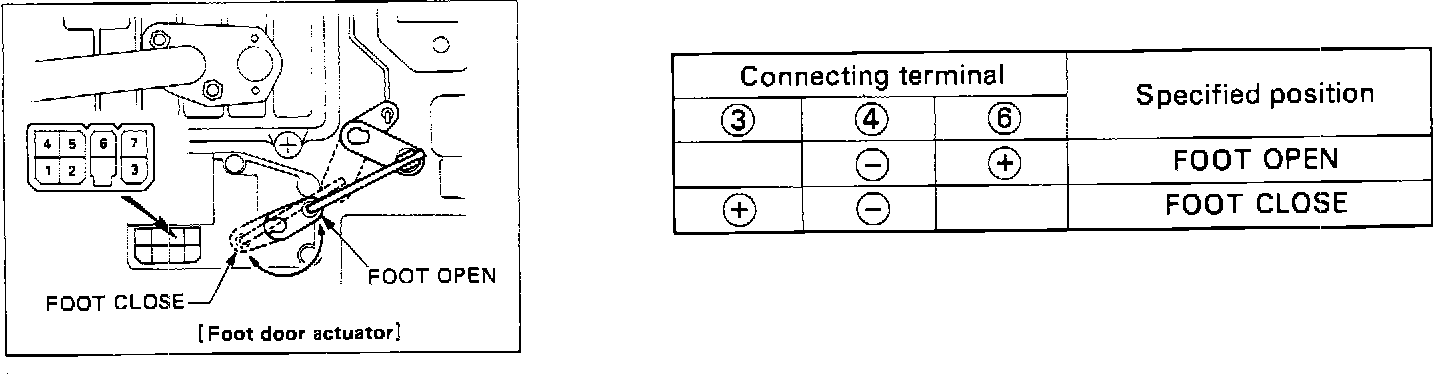

Foot Door Actuator
Foot Door Actuator Testing:
1. Apply battery voltage across terminals as described on image chart.
2. Check that actuator moves smoothly and stops at specified position.
3. Replace if actuator does not perform as described.

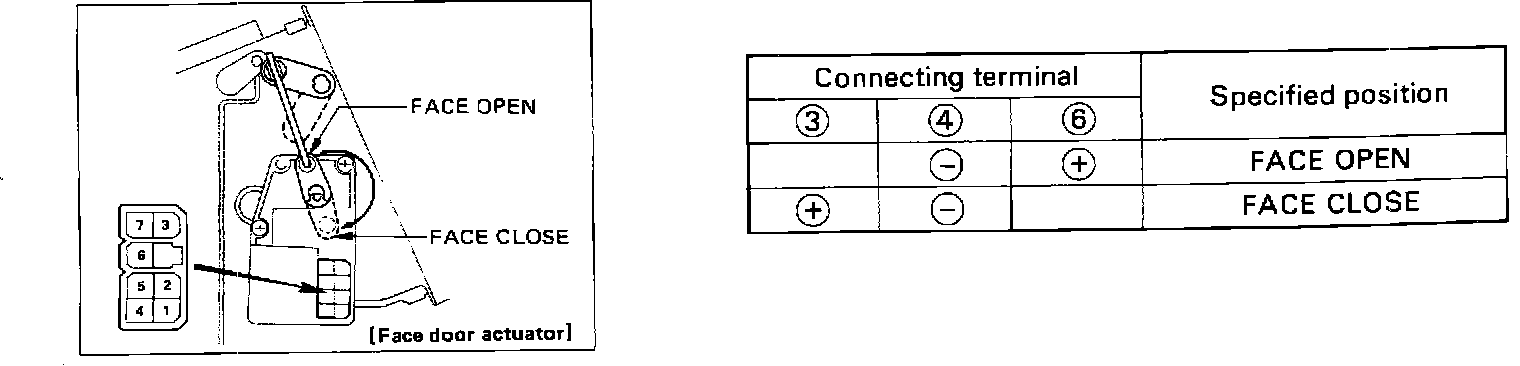

Face Door Actuator
Face Door Actuator Testing:
1. Apply battery voltage across terminals as described on image chart.
2. Check that actuator moves smoothly and stops at specified position.
3. Replace if actuator does not perform as described.

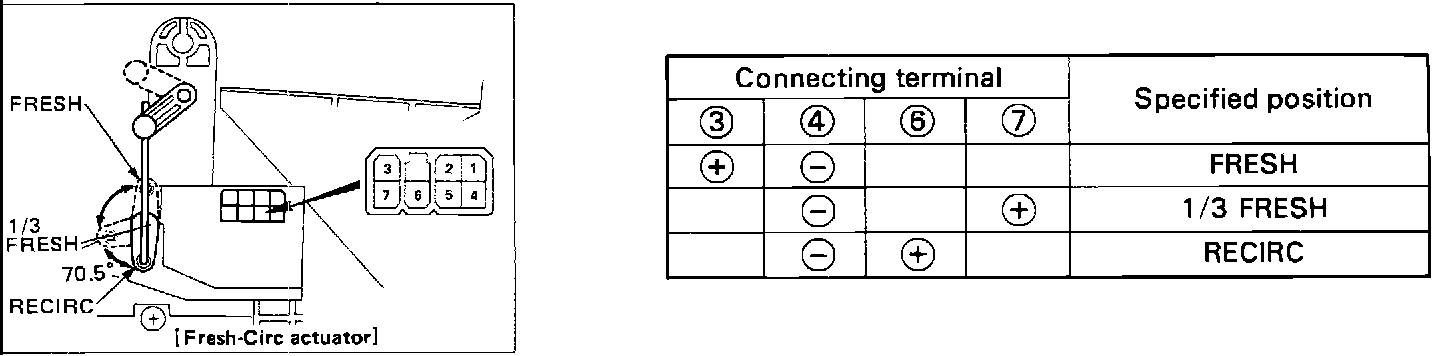

Fresh-Circ Door Actuator
Fresh-Circ Door Actuator Testing:
1. Apply battery voltage across terminals as described on image chart.
2. Check that actuator moves smoothly and stops at specified position.
3. Replace if actuator does not perform as described.
