Temperature Gauge
>>
With Digital Meter
>>
Part 1 of 2
Part 1 of 2

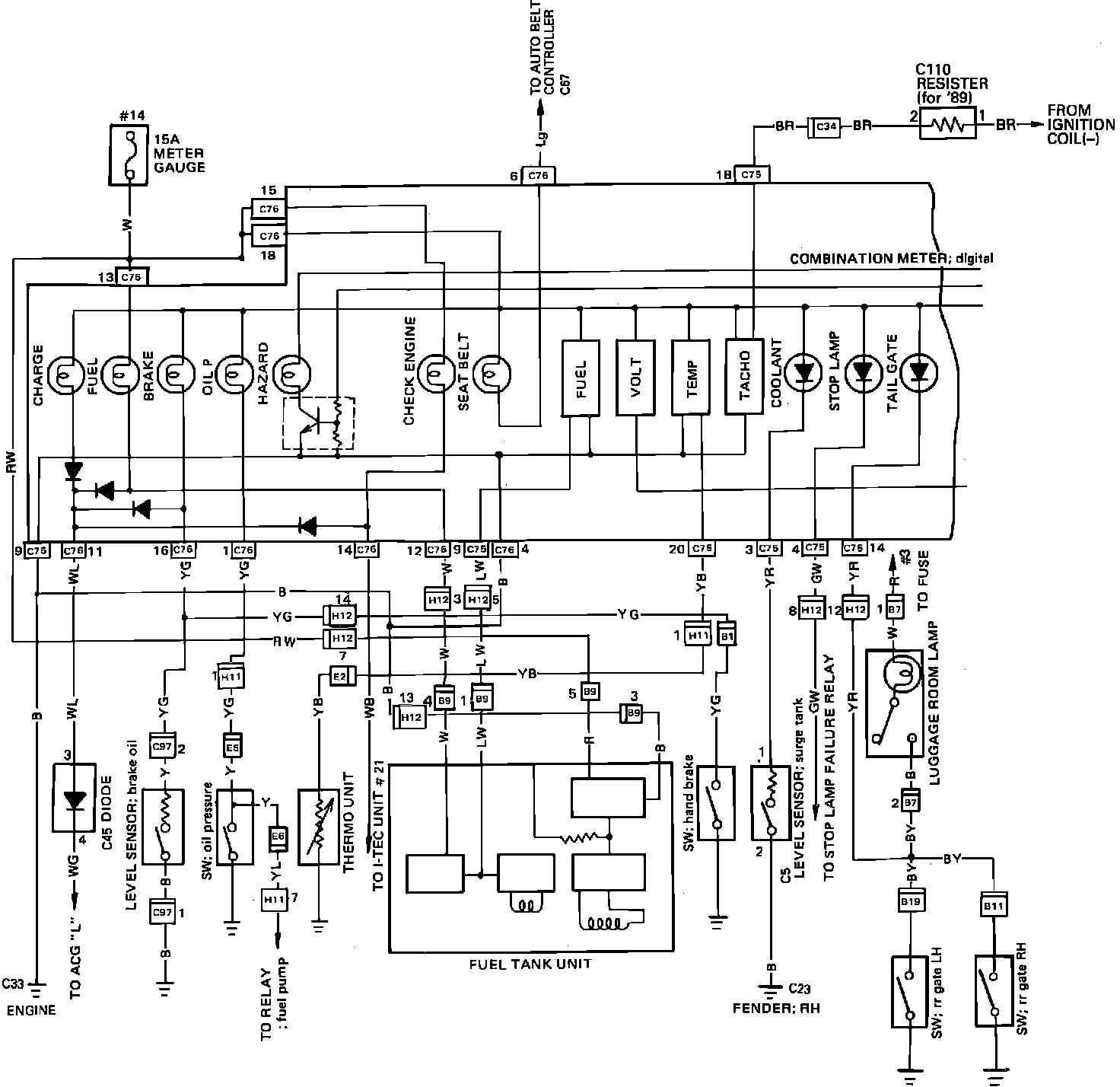

Combination Meter Wiring Circuit. Digital Meter:
