Home >> Isuzu >> 1988 >> Impulse L4-1994cc 2.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Temperature Gauge >> With Analog Meter >> Part 2 of 2

Part 2 of 2

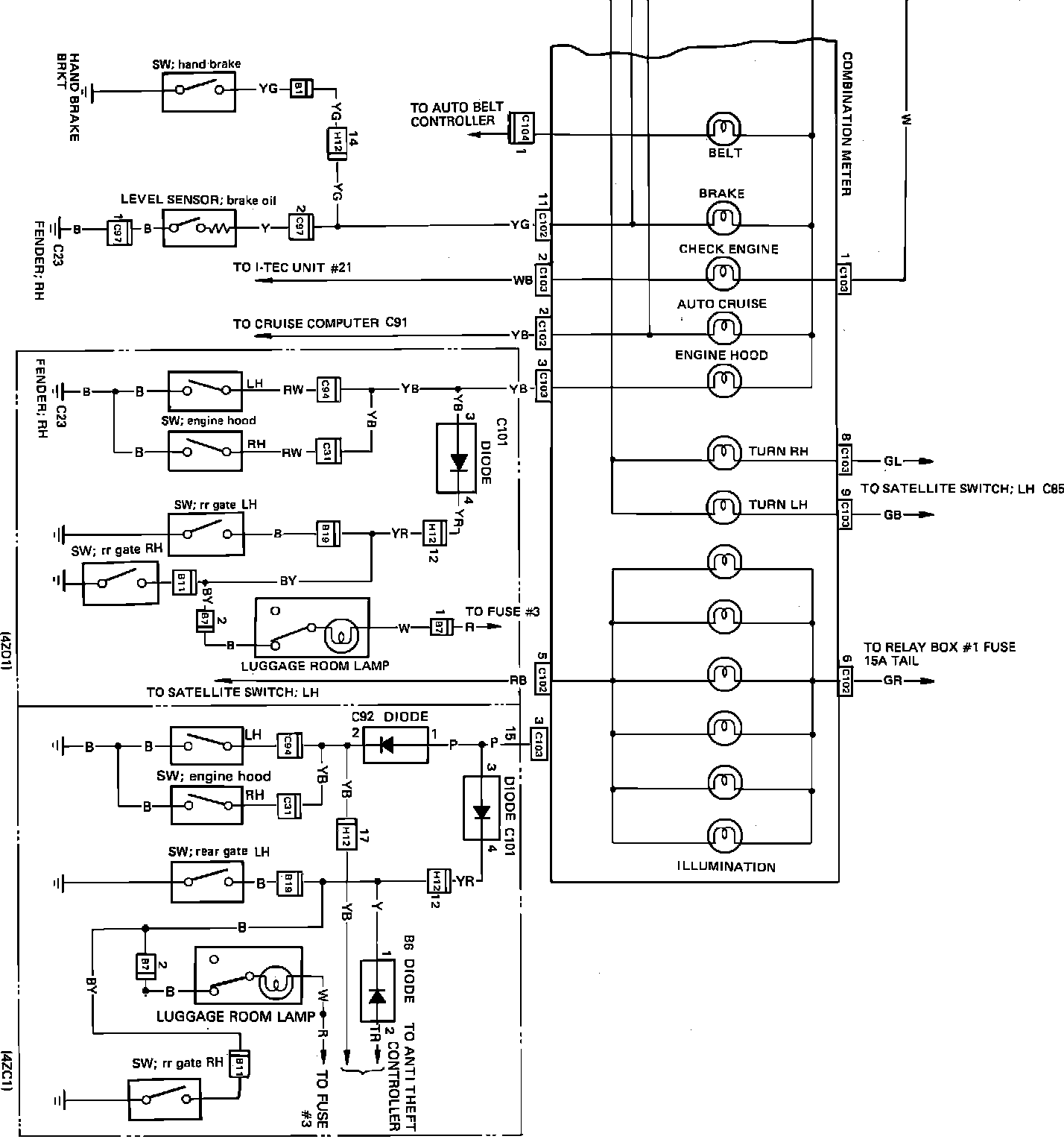

Combination Meter Wiring Circuit. Analog Meter:
