Wheel Cover - Installation Precautions

88isuzu05

BULLETIN NUMBER SB88-08-001
ISSUE DATE August 25, 1988
GROUP TIRES & WHEELS
I-MARK (JT) WHEEL COVER BREAKAGE

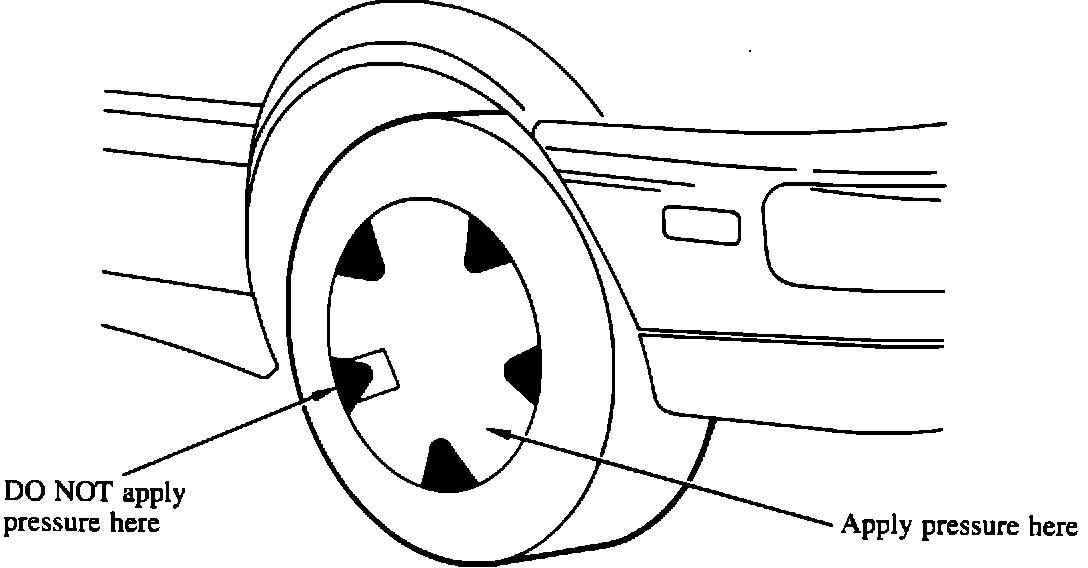

FIGURE 1:

VEHICLES AFFECTED

1988 I-Mark (JT) RS models.

SERVICE INFORMATION

The five black triangular areas on the outer edge of the wheel covers are more susceptible to breakage than the body-colored area. Applying pressure to any of
these black areas during wheel cover installation will result in wheel cover damage. Install wheel cover by applying pressure only to the outer part of the bodycolored area (Figure 1).
