Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Isuzu
>>
1988
>>
I-Mark L4-1471cc 1.5L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

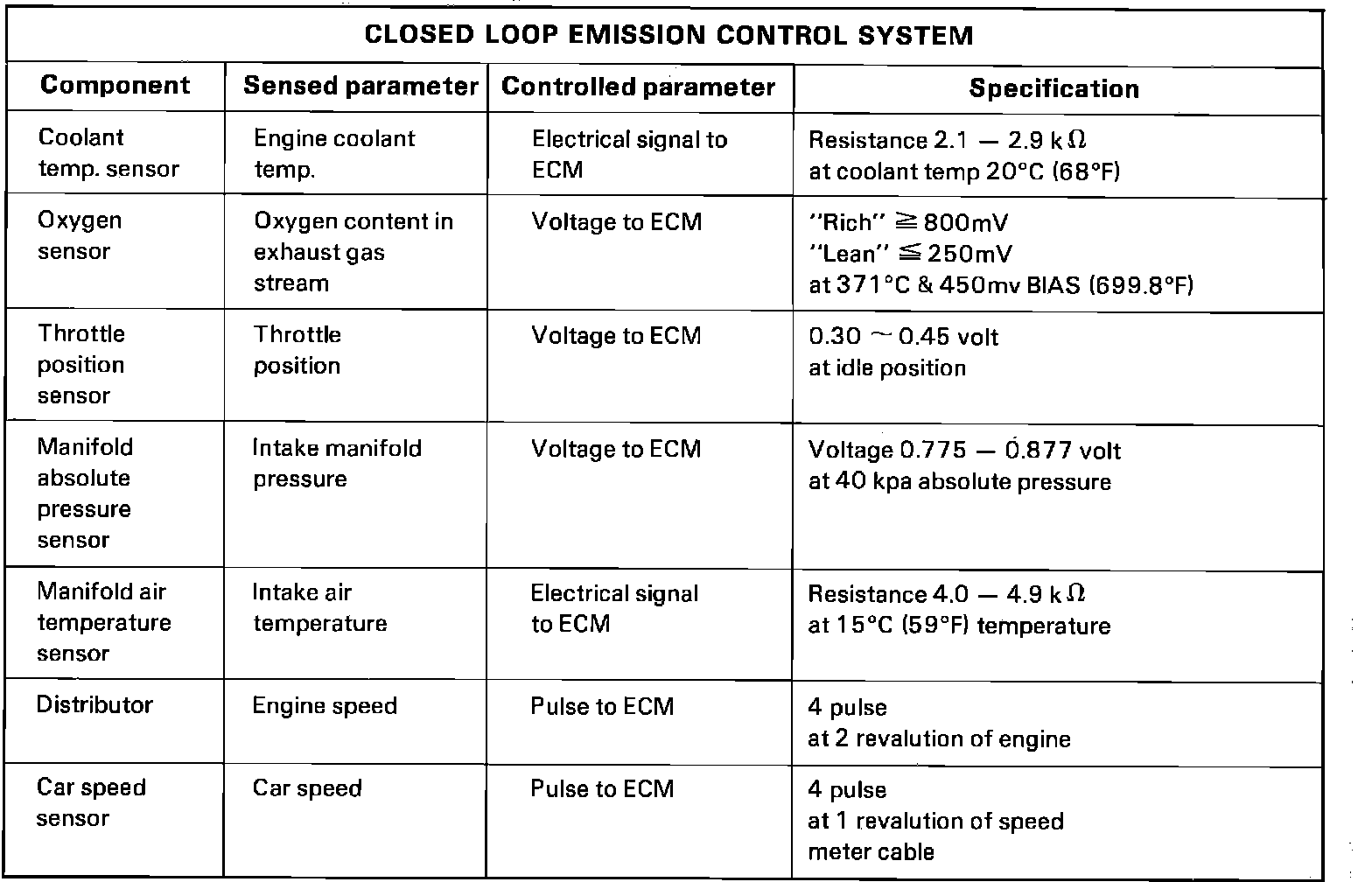

Fig. 111 Closed Loop System Operating Conditions:
