Early Fuel Evaporation (EFE) System Check
Early Fuel Evaporation (EFE) System Check

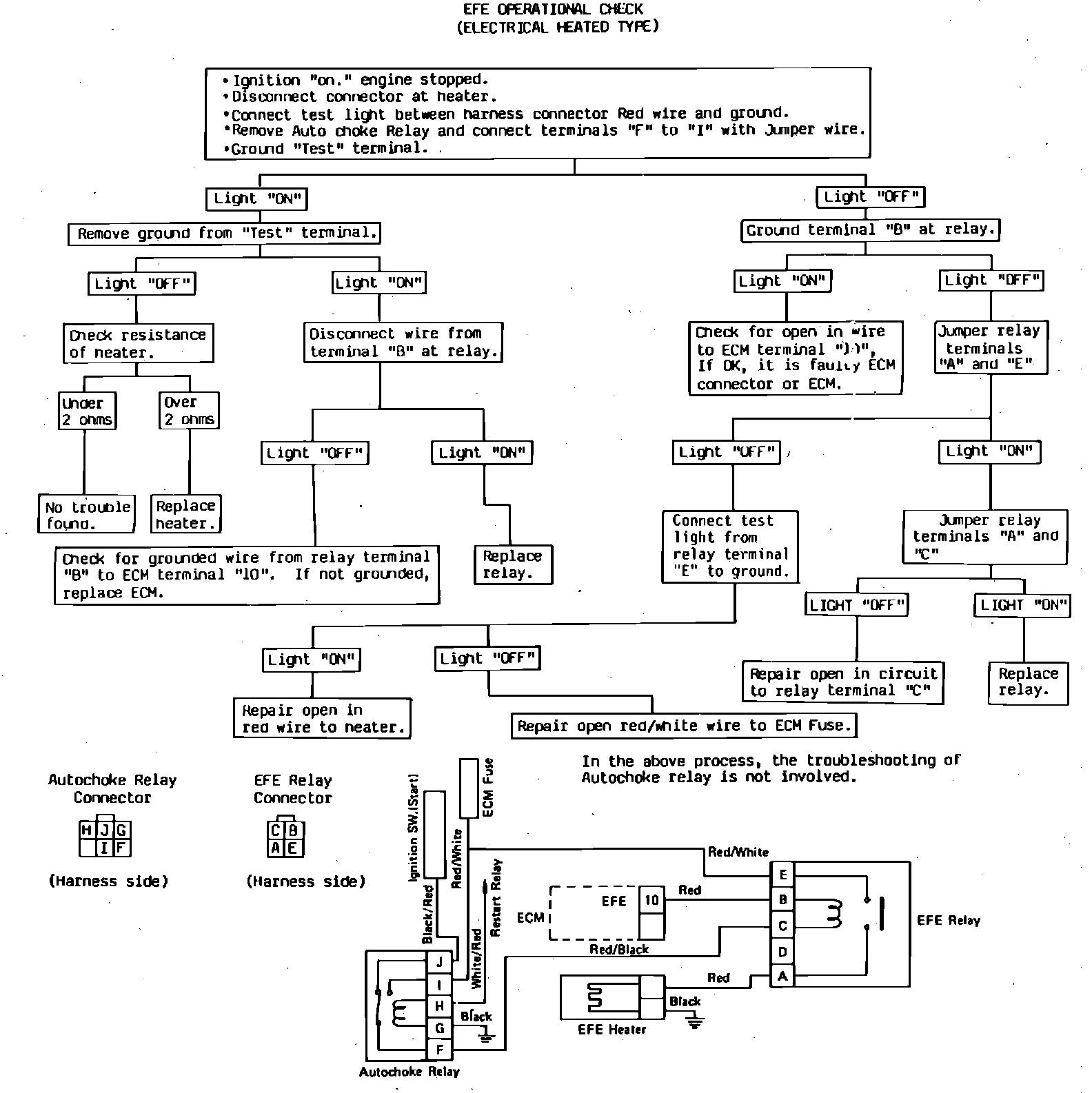

Fig. 31 EFE system operational check:
